Rittal 9340230 Cross Member - UL 508 Feeder Circuit Compliance
Part Number: 9340230
Manufacturer
Rittal
Part number
9340230
Category
Alt Part Number
SV 9340.230
Quick Summary

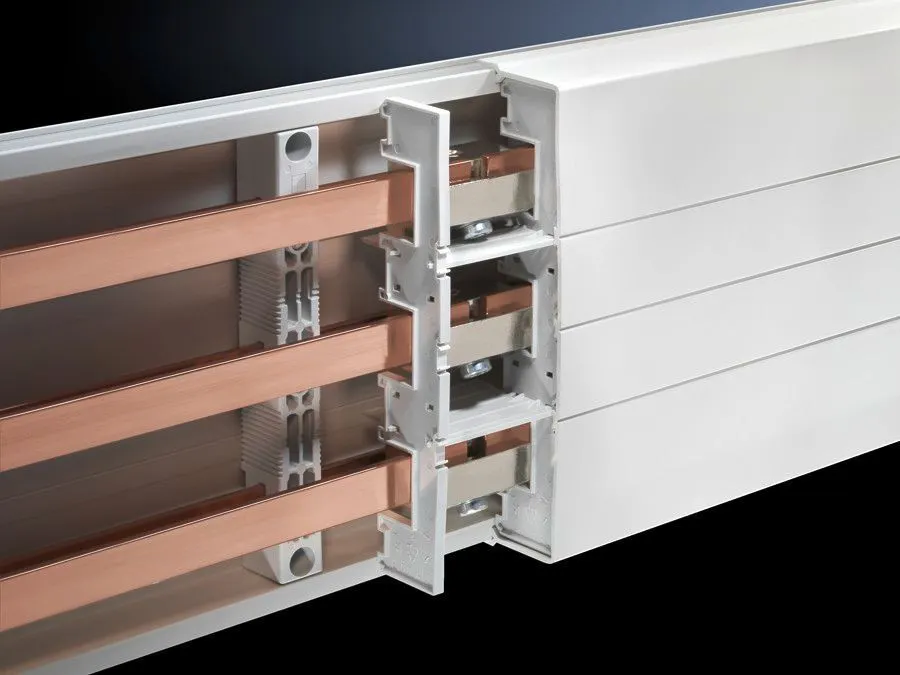

Rittal 9340230 cross member is a 160 mm support accessory for RiLine busbar systems used in power distribution cabinets. Engineers often struggle to maintain required clearances for feeder circuits, risking non-compliance and costly rework. These parts deliver UL 508 clearance compliance and UL 94-V0 flame protection, enhancing safety and reliability. Designed to fit the 3-pole busbar system with 60 mm bar center distance, it provides a practical solution for reliable panel assembly. By pairing this cross member with the SV 9340220 support panel, installers achieve consistent alignment, reduce change orders, and streamline procurement across projects.
Product Information
Extended Description
9340230 Rittal: SV Cross member, L: 160 mm, for support panel SV 9340220
Article number
SV 9340.230
Product description
To comply with the clearances required for "feeder circuits" under UL 508. For flat bar systems with 60 mm bar centre distance and PLS 800/1600.
Material
Polyamide | Fire protection corresponding to UL 94-V0
Colour
RAL 7035
For number of poles
3
Length
160 mm
Note
2 cross members are required for one busbar connection
To fit busbar system
3-pole
Dimensions
Length: 160 mm
Packs of
2 pc(s).
Weight/pack
0.06 kg
Customs tariff number
39269097
EAN
4028177565555
ETIM 9
EC000775
ECLASS 8.0
27142414
Product description
SV Cross member, L: 160 mm, for support panel SV 9340220
Feature: 160 mm cross member length aligns precisely with SV 9340220 support panels. Business Impact: Ensures predictable spacing for RiLine busbar connections, reducing rework and insulating risk. Application: Ideal for 3-pole busbar systems in control cabinets and switchgear. Long-tail keywords: 160 mm cross member, RiLine busbar compatibility, 3-pole busbar systems.Feature: Polyamide material with UL 94-V0 fire protection. Business Impact: Enhances safety and compliance in enclosure environments, lowering flame-related downtime. Application: Suitable for equipment enclosures in harsh or regulated settings. Long-tail keywords: UL 94-V0 polyamide, flame-retardant cross member, enclosure safety components.Feature: Colour finished in RAL 7035 for consistent enclosure aesthetics. Business Impact: Improves visual conformity in control panels and plant installations, aiding standardization. Application: Panels requiring uniform appearance and documented color specification. Long-tail keywords: RAL 7035, enclosure color coding, cabinet aesthetics.Feature: Pack of 2 with weight 0.06 kg per pack. Business Impact: Simplifies stocking, inventory planning, and quick on-site replacement. Application: Ideal for maintenance cycles and new installations with predictable packaging. Long-tail keywords: packs of 2, stocking efficiency, lightweight cross member.Feature: 2 cross members required per busbar connection. Business Impact: Ensures correct assembly, reduces incorrect configurations, and speeds installation. Application: RiLine 3-pole connections and busbar assemblies. Long-tail keywords: two per connection, proper assembly, busbar connection guidance.Feature: Designed for 3-pole busbar fit with 60 mm bar center distance. Business Impact: Guarantees mechanical fit and electrical clearance in UL 508 feeder circuit applications. Application: Control panels using RiLine busbars in 3-pole arrangements. Long-tail keywords: 3-pole fit, 60 mm center distance, feeder circuit clearance.
Get a Quick Quote for a Rittal 9340230
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Rittal 9340230?
Enquire Now
FAQs
Yes. The SV cross member is designed to work with the SV 9340220 support panel and 3-pole RiLine busbar systems, using a 60 mm bar centre distance. For one busbar connection, two cross members are required, ensuring correct spacing and secure mounting during installation.
The cross member supports UL 508 feeder circuit clearances and uses material with UL 94-V0 fire protection. These certifications ensure safe enclosure performance, reduced fire risk, and compliance with typical industrial electrical cabinet standards.
Ideal for machine builders, panel builders, and electrical contractors deploying RiLine busbar connections in control cabinets, switchgear, and power distribution panels requiring strict clearance for feeder circuits.
Reference UL 508 for feeder circuit clearances and UL 94-V0 for flame retardant material. The part is also compatible with standard RiLine 3-pole busbar configurations and SV 9340220 support panels for consistent assemblies.
Using two cross members per connection with the SV 9340220 system yields reliable spacing, reducing rework and inspection time. The lightweight 0.06 kg per pack packaging and 2-pack availability streamline stocking, minimizing downtime in panel builds and maintenance cycles.
