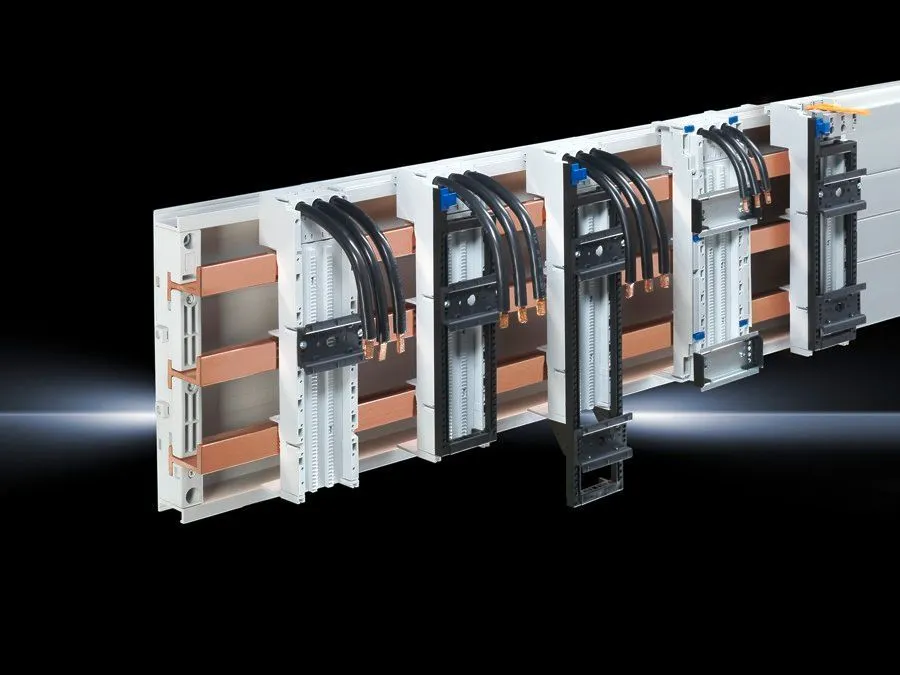

Rittal SV 9340.310 SV OM Adaptor-3-pole, 25 A, 690 V TS 45C
Part Number: 9340310
Manufacturer
Rittal
Part number
9340310
Category
Alt Part Number
SV 9340.310
Quick Summary
SV OM adaptor is a compact 3-pole power connector for panel distribution up to 690 V. Engineers often face limited mounting space and inconsistent rail compatibility, which this adaptor streamlines. It leverages UL-based safety features (UL 94-V0 material, SCCR up to 30 kA at 600 V) to support safe installation in demanding environments. With a 130 mm connection cable, AWG 12 wiring, and 60 mm center spacing, it enables predictable performance and faster commissioning in control cabinets, while aligning with standardised components to simplify procurement and documentation.
Product Information
Extended Description
9340310 Rittal: SV OM adaptor, 25 A, 690 V, 3-pole, connection cable AWG 12, WH: 45x208 mm, support rail TS 45C
Article number
SV 9340.310
Material
Polyamide | Fire protection corresponding to UL 94-V0
Colour
Chassis: RAL 7035
Connection cables (AWG)
AWG 12
Rated current max.
25 A
Rated operating voltage
690 V, 3~
Electrical ratings UL (SCCR)
30 kA - 600 V, Fuse Class K5 max. 60 A, JDDZ/7
For bar systems with centre-to-centre spacing
60 mm
Length of connection cable
130 mm
Support rail type
TS 45C
Note
The technical data may vary for UL applications
Number of poles
3-pole
Dimensions
Width: 45 mm | Height: 208 mm
Support rails Qty/height
1 / 10 mm
To fit busbars
Height: 5, 10 mm
Packs of
1 pc(s).
Weight/pack
0.26 kg
Copper weight (kg per piece)
0.036
Customs tariff number
85369095
EAN
4028177502505
ETIM 7.0
EC001531
ECLASS 8.0
27370304
Product description
SV OM adaptor, 25 A, 690 V, 3-pole, connection cable AWG 12, WH: 45x208 mm, support rail TS 45C
Feature: 3-pole, 25 A, 690 V rating. Business Impact: Enables reliable medium-power distribution in compact enclosures without oversized gear. Application: Panel boards and busbar systems in industrial cabinets benefit from proven current handling and space efficiency. Long-tail keywords: 3-pole adaptor, 25 A power connector, 690 V panel distribution. Feature: AWG 12 connection cables, 130 mm length. Business Impact: Simplifies wiring routing and reduces field-fit adjustments during installation. Application: Tight spaces in control panels where cable length and routing are critical. Long-tail keywords: AWG 12 cables, 130 mm lead length, wiring harness compatibility. Feature: UL 94-V0 fire-rated material. Business Impact: Improves safety compliance and fire resistance in enclosures, lowering risk and insurance exposure. Application: Enclosures with stringent safety requirements. Long-tail keywords: UL 94-V0 polyamide, flame rating, fire protection. Feature: Center-to-centre spacing 60 mm and TS 45C rail compatibility. Business Impact: Fast, setback-free mounting on standard busbar rails, reducing install time and error rates. Application: TS 45C rail systems across Rittal enclosures. Long-tail keywords: 60 mm spacing, TS 45C compatibility, rail mounting. Feature: Short-circuit withstanding up to 30 kA (UL SCCR) at 600 V. Business Impact: Enhanced protection against faults, supporting safer panel operation and downstream protective devices. Application: Systems with high fault current potential. Long-tail keywords: SCCR 30 kA, 600 V rating, electrical safety. Feature: Packaging and weight data for procurement - 1 pc per pack, 0.26 kg per pack, copper weight 0.036 kg. Business Impact: Clear BOM integration and accurate logistics planning. Application: Purchasing, stocking, and cost forecasting in manufacturing. Long-tail keywords: 1 pack, 0.26 kg, copper weight 0.036 kg.
Get a Quick Quote for a Rittal 9340310
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Rittal 9340310?
Enquire Now
FAQs
To install, mount the adaptor onto the TS 45C rail, ensuring proper alignment with the rail profile. Connect the AWG 12 cables to the 3-pole terminals and route the 130 mm lead length neatly. Verify the centre spacing is 60 mm and confirm secure mechanical engagement before energising the circuit. Follow lockout-tagout procedures as required.
Key specs include 25 A rated current, 690 V rated operating voltage (3~), 3 poles, AWG 12 connection cables, 60 mm center-to-center spacing, 130 mm cable length, and UL SCCR of 30 kA at 600 V. Material is UL 94‑V0 polyamide with chassis color RAL 7035, suitable for industrial panels.
Yes. The SV OM adaptor is designed for 60 mm centre-to-centre spacing and TS 45C rails, providing reliable alignment with standard busbar configurations. It supports 3-pole connections and accommodates 5 or 10 mm busbar heights as noted in the product specifications.
The adaptor uses UL 94‑V0 fire-rated polyamide for safety. It carries a UL SCCR rating of 30 kA at 600 V, enhancing fault-current protection. Additional classifications include ETIM EC001531 and ECLASS 27370304, which assist with cross‑reference in MRO systems, while the EAN 4028177502505 supports traceability.
The SV OM adaptor is sold in packs of 1 piece, with a weight of 0.26 kg per pack and a copper weight of 0.036 kg per piece. The EAN is 4028177502505, and the customs tariff number is 85369095, aiding logistics, customs clearance, and BOM assembly.
