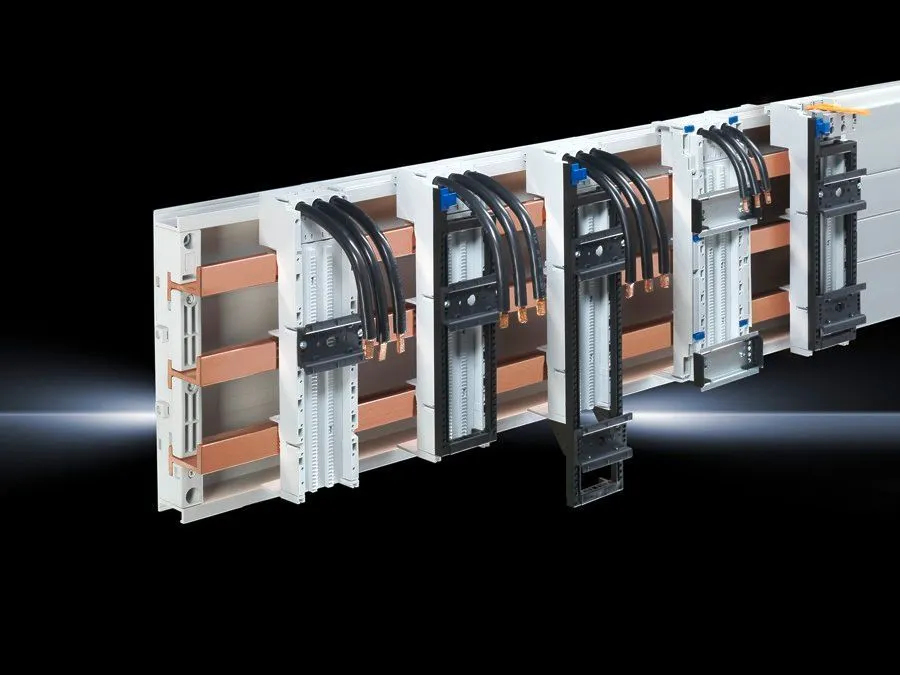

Rittal 9340320 SV OM adaptor - UL SCCR 30 kA
Part Number: 9340320
Manufacturer
Rittal
Part number
9340320
Category
Alt Part Number
SV 9340.320
Quick Summary
The Rittal 9340320 SV OM adaptor is a 3-pole power distribution module designed for control panels operating at up to 690 V. Engineers often struggle with compact space, safe wiring, and UL SCCR compliance when integrating busbar adapters. This adaptor uses fire-rated polyamide (UL94-V0), arrives in a chassis finished in RAL 7035, and mounts easily to TS 45D rails for repeatable, safe installations. Its UL SCCR rating of 30 kA at 600 V supports demanding short‑circuit conditions in industrial environments. With a 25 A rating, 130 mm connection cable, and 60 mm busbar spacing, it streamlines procurement and maintenance while ensuring reliable, code-compliant power distribution. This makes it particularly suitable for control panels in automation lines.
Product Information
Extended Description
9340320 Rittal: SV OM adaptor, 25 A, 690 V, 3-pole, connection cable AWG 12, WH: 45x208 mm, support rail 2xTS 45D
Article number
SV 9340.320
Material
Polyamide | Fire protection corresponding to UL 94-V0
Colour
Chassis: RAL 7035
Connection cables (AWG)
AWG 12
Rated current max.
25 A
Rated operating voltage
690 V, 3~
Electrical ratings UL (SCCR)
30 kA - 600 V, Fuse Class K5 max. 60 A, JDDZ/7
For bar systems with centre-to-centre spacing
60 mm
Length of connection cable
130 mm
Support rail type
TS 45D
Note
The technical data may vary for UL applications
Number of poles
3-pole
Dimensions
Width: 45 mm | Height: 208 mm
Support rails Qty/height
2 / 10 mm
To fit busbars
Height: 5, 10 mm
Packs of
1 pc(s).
Weight/pack
0.26 kg
Copper weight (kg per piece)
0.036
Customs tariff number
85369095
EAN
4028177673823
ETIM 9
EC001531
ECLASS 8.0
27370304
Product description
SV OM adaptor, 25 A, 690 V, 3-pole, connection cable AWG 12, WH: 45x208 mm, support rail 2xTS 45D
Feature: The SV OM adaptor delivers 25 A rated current at up to 690 V with a 3-pole configuration, enabling efficient distribution from a single module in compact control panels. Business impact: This reduces the number of discrete components, minimizes wiring complexity, and lowers total installation time, helping you meet tight project deadlines. Application: Ideal for feeding power to relays, contactors, and PLC power rails in automated lines and machine cabinets. Paragraph continues with additional details including AWG 12 connection cables, 130 mm cable length, 60 mm busbar spacing, and TS 45D rail compatibility to enable flexible layouts and fast installation. Feature: UL SCCR rating of 30 kA at 600 V and fuse class K5 compatibility up to 60 A, with note that UL data may vary. Business impact: This delivers robust short-circuit protection and regulatory alignment for UL-listed enclosures. Application: Critical in safety-sensitive power distribution stages in conveyors, packaging lines, and robotics cells. Paragraph continues to cover fire-resistant housing (UL94-V0), chassis color (RAL 7035), and compact dimensions (45x208 mm) for safe integration within standard enclosures. Feature: Material and finish provide safety and longevity in industrial environments. Business impact: Enhances heat resistance, chemical stability, and visual integration while maintaining compliance. Application: Suitable for retrofit projects and new builds where space is at a premium and standards adherence is non-negotiable. Installation and compatibility notes: TS 45D rails, two rails at 10 mm height, and 60 mm busbar spacing support quick mounting and reliable electrical contact; the adaptor is provided as one pack per unit with manageable weight.
Get a Quick Quote for a Rittal 9340320
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Rittal 9340320?
Enquire Now
FAQs
The SV OM adaptor is designed for TS 45D DIN rails and requires mounting on two TS 45D rails with a 60 mm busbar center-to-center spacing. It supports AWG 12 conductors and a 130 mm connection cable, with dimensions of 45 mm in width and 208 mm in height, making it suitable for compact control panels and modular installations in automation environments.
It is a 3-pole module rated up to 25 A and 690 V (3~) with UL SCCR protection of 30 kA at 600 V. It supports fuse class K5 up to 60 A, and its construction notes indicate UL data may vary for UL applications. The 60 mm busbar spacing assists in standardized wiring and fault protection practices.
Yes, it is designed to meet UL SCCR requirements, with a 30 kA short-circuit rating at 600 V, which aligns with typical UL-listed panel standards. Note that certain data can vary for UL applications, so final verification should occur during panel documentation and certification processes.
The adaptor mounts on TS 45D DIN rails and requires two rails with a 10 mm height spacing. It uses a 60 mm center-to-center busbar arrangement and a 130 mm connection cable, enabling straightforward, vibration-resistant installation in machine cabinets and automation enclosures.
By consolidating 25 A, 690 V distribution into a single 3-pole module with a 130 mm cable and TS 45D compatibility, you reduce parts count and wiring complexity, speeding assembly and lowering labor costs. Its durable polyamide UL94‑V0 housing and standardized busbar spacing minimize maintenance interventions and improve long-term reliability.
