Rittal 9340340 SV OM adaptor - UL SCCR 30 kA
Part Number: 9340340
Manufacturer
Rittal
Part number
9340340
Category
Alt Part Number
SV 9340.340
Quick Summary
SV OM adaptor powers 3-pole busbar connections in control panels, handling up to 25 A at 690 V. Installers often face misalignment and safety-compliance headaches during mounting and wiring in compact enclosures. This unit features UL SCCR 30 kA at 600 V and a UL 94‑V0 flame rating for the polyamide housing, supporting safe, regulator-friendly installations. Designed for TS 45C rails with 60 mm center-to-center spacing, it simplifies alignment and reduces the need for additional mounting accessories. With a compact 45 x 170 mm frame and a 130 mm connection cable, 1-piece packs streamline procurement and on-site wiring for power distribution projects.
Product Information
Extended Description

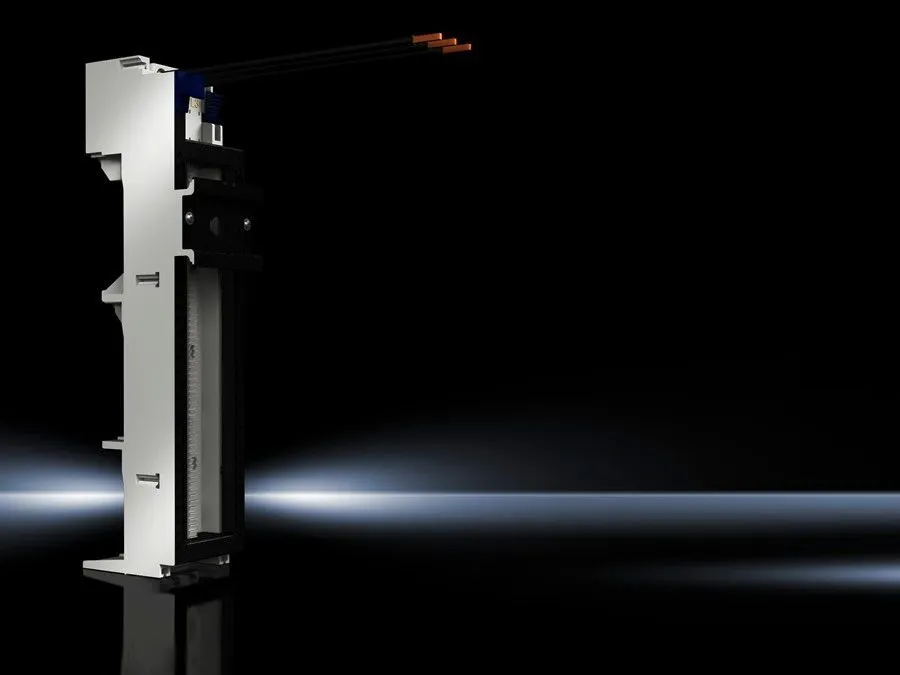

9340340 Rittal: SV OM adaptor, 25 A, 690 V, 3-pole, connection cable AWG 12, WH: 45x208 mm, support frame, support rail TS 45C
Article number
SV 9340.340
Material
Polyamide | Fire protection corresponding to UL 94-V0
Colour
Chassis: RAL 7035
Connection cables (AWG)
AWG 12
Rated current max.
25 A
Rated operating voltage
690 V, 3~
Electrical ratings UL (SCCR)
30 kA - 600 V, Fuse Class K5 max. 60 A, JDDZ/7
For bar systems with centre-to-centre spacing
60 mm
Length of connection cable
130 mm
Support rail type
TS 45C
Note
The technical data may vary for UL applications
Number of poles
3-pole
Dimensions
Width: 45 mm | Height: 208 mm
Support rails Qty/height
1 / 10 mm
To fit busbars
Height: 5, 10 mm
Support frame (W x H)
45 mm x 170 mm
Packs of
1 pc(s).
Weight/pack
0.28 kg
Copper weight (kg per piece)
0.036
Customs tariff number
85369095
EAN
4028177502512
ETIM 9
EC001531
ECLASS 8.0
27370304
Product description
SV OM adaptor, 25 A, 690 V, 3-pole, connection cable AWG 12, WH: 45x208 mm, support frame, support rail TS 45C
Feature: 25 A, 690 V, 3-pole rating. Business Impact: Enables compact, cost-efficient panel design by supporting standard 3-pole loads without oversized hardware. Application: Control panels and machine distribution where space is at a premium. Feature: Connection cable length 130 mm with AWG 12 conductors. Business Impact: Ensures low impedance paths and predictable thermal performance, reducing voltage drop in dense enclosures. Application: Wiring between busbars and devices inside switchgear. Feature: TS 45C rail compatibility with 60 mm center spacing. Business Impact: Simplifies mounting and alignment, enabling quick retrofit on existing installations. Application: Machines and panels using TS 45C rails in European standard power systems. Feature: UL SCCR 30 kA at 600 V and UL 94-V0 flame-rating material. Business Impact: Enhances fault-current resilience and flame retardancy, supporting compliance audits. Application: Panel assemblies in safety-critical environments. Feature: Compact frame 45 x 170 mm; Dimensions 45 x 208 mm; Weight 0.28 kg per pack; Packs of 1. Business Impact: Lightweight, space-efficient, easy to source in single-PACK; Application: Dense control cabinets with limited clearance. Feature: 3-pole design and busbar compatibility for heights 5–10 mm. Business Impact: Flexible integration with various busbar interfacing options. Application: Systems requiring adaptable connectivity in compact assemblies.
