Rittal SV 9340.370 SV OM adaptor - 30 kA SCCR
Part Number: 9340370
Manufacturer
Rittal
Part number
9340370
Category
Alt Part Number
SV 9340.370
Quick Summary
The Rittal SV 9340.370 SV OM adaptor provides a compact, 25 A, 690 V three‑pole connection solution for TS 45C busbar systems in control panels. Engineers often struggle with limited space and wiring complexity when expanding power rails, risking miswiring and downtime. Key certifications and standards matter for safe, compliant installations: UL SCCR up to 30 kA at 600 V and UL 94‑V0 fire‑rating in the polyamide chassis. The design prioritizes quick assembly and reliable operation, supporting PinBlock, a dedicated support frame, and a precise 60 mm center‑to‑center spacing to streamline installation across modular panels. By aligning with standardized rail systems and conductor sizes (AWG 12), this adaptor enables faster commissioning and predictable lifecycle costs while preserving electrical integrity in automation cabinets.
Product Information
Extended Description

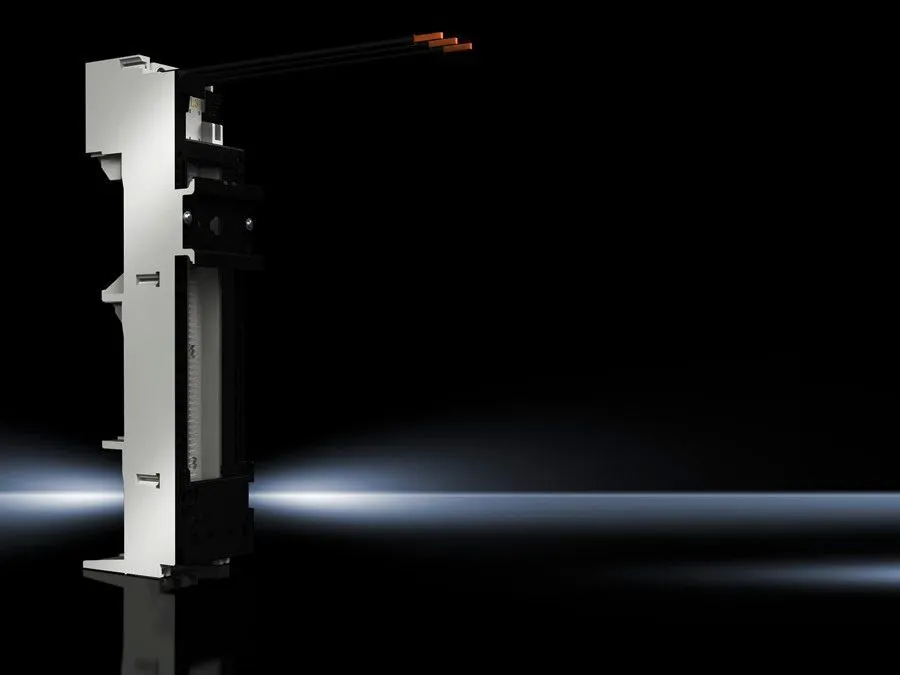

9340370 Rittal: SV OM adaptor, 25 A, 690 V, 3-pole, connection cable AWG 12, WH: 45x208 mm, support frame, PinBlock, support rail TS 45C
Article number
SV 9340.370
Material
Polyamide | Fire protection corresponding to UL 94-V0
Colour
Chassis: RAL 7035
Connection cables (AWG)
AWG 12
Rated current max.
25 A
Rated operating voltage
690 V, 3~
Electrical ratings UL (SCCR)
30 kA - 600 V, Fuse Class K5 max. 60 A, JDDZ/7
For bar systems with centre-to-centre spacing
60 mm
Length of connection cable
130 mm
Support rail type
TS 45C
Note
The technical data may vary for UL applications
Number of poles
3-pole
PinBlock
Yes
Dimensions
Width: 45 mm | Height: 208 mm
Support rails Qty/height
1 / 10 mm
To fit busbars
Height: 5, 10 mm
Support frame (W x H)
45 mm x 170 mm
Packs of
1 pc(s).
Weight/pack
0.28 kg
Copper weight (kg per piece)
0.036
Customs tariff number
85369095
EAN
4028177502529
ETIM 9
EC001531
ECLASS 8.0
27370304
Product description
SV OM adaptor, 25 A, 690 V, 3-pole, connection cable AWG 12, WH: 45x208 mm, support frame, PinBlock, support rail TS 45C
Feature 3-pole, 25 A, 690 V rating enables high-power distribution in a compact footprint, reducing panel depth and enabling dense wiring layouts. Benefit results in faster assembly, improved reliability, and safer operation in control cabinets using TS 45C rails. Application fits standard Rittal busbar configurations and supports modular strip layouts for scalable automation projects. Feature AWG 12 connection cables with 130 mm length ensures consistent, secure terminations and straightforward routing in confined enclosures. Benefit is standardized conductor sizing that reduces field wiring errors and simplifies spare parts planning. Application spans control panels, switchgear assemblies, and automation enclosures needing robust 690 V three‑phase connections. Feature PinBlock and included support frame improve alignment and mounting stability; Benefit is faster commissioning and fewer reworks during maintenance. Application is optimized for TS 45 rail mounting and 60 mm center‑to‑center spacing to maximize compatibility with common busbar multipliers. Feature UL 94‑V0 rated material and UL SCCR up to 30 kA at 600 V provide flame‑retardant safety and regulatory compliance; Benefit is lower risk of fire events and simplified safety approvals in industrial environments. Application covers demanding automation installations requiring reliable, compliant power distribution with predictable lifecycle costs.
