Rittal SV 9340.390 OM adaptor - UL SCCR 30 kA
Part Number: 9340390
Manufacturer
Rittal
Part number
9340390
Category
Alt Part Number
SV 9340.390
Quick Summary

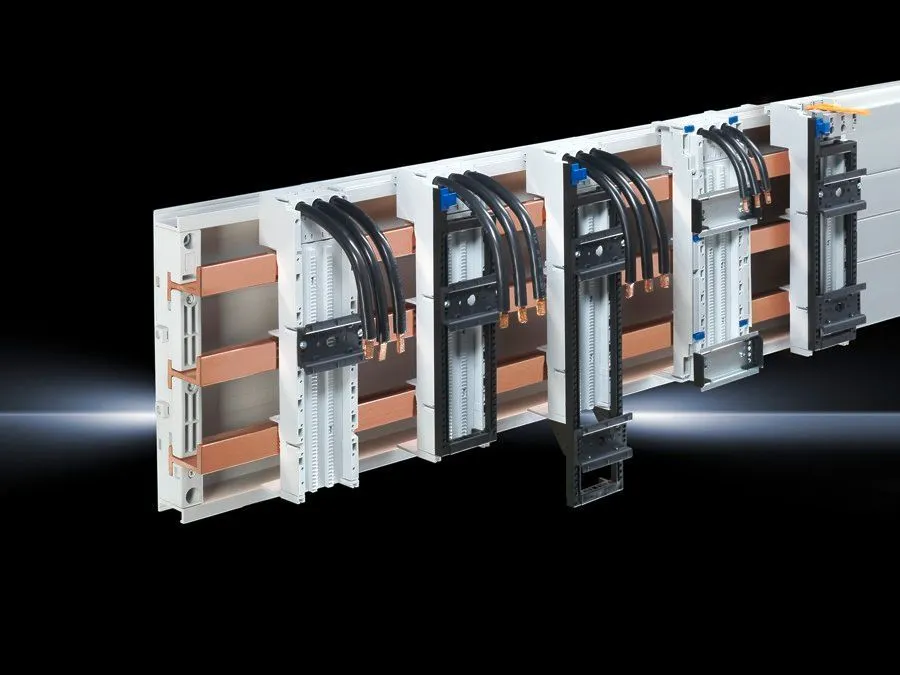

SV 9340.390 OM adaptor from Rittal is a compact 3‑pole connection unit for 690 V systems in control panels. Engineers often struggle with safe, tidy cable routing and space constraints when integrating busbar connections on TS 45D rails. It delivers UL SCCR up to 30 kA at 600 V and a UL 94‑V0 flame rating, with verified TS 45D rail compatibility for quick mounting. The design accommodates 60 mm centre-to-centre busbar spacing and a 130 mm connection cable, enabling reliable power distribution with AWG 10 conductors. In practice, this adaptor shortens installation time, reduces wiring errors, and enhances panel safety in demanding industrial environments.
Product Information
Extended Description
9340390 Rittal: SV OM adaptor, 32 A, 690 V, 3-pole, connection cable AWG 10, WH: 45x272 mm, support frame, support rail TS 45D, TS 45D-V
Article number
SV 9340.390
Material
Polyamide | Fire protection corresponding to UL 94-V0
Colour
Chassis: RAL 7035
Connection cables (AWG)
AWG 10
Rated current max.
32 A
Rated operating voltage
690 V, 3~
Electrical ratings UL (SCCR)
30 kA - 600 V, Fuse Class K5 max. 60 A, JDDZ/7
For bar systems with centre-to-centre spacing
60 mm
Length of connection cable
130 mm
Support rail type
TS 45D
Note
The technical data may vary for UL applications
Number of poles
3-pole
Support frame support
Yes
Dimensions
Width: 45 mm | Height: 272 mm
Support rails Qty/height
2 / 10 mm
To fit busbars
Height: 5, 10 mm
Support frame (W x H)
45 mm x 237 mm
Packs of
1 pc(s).
Weight/pack
0.32 kg
Copper weight (kg per piece)
0.074
Customs tariff number
85369095
EAN
4028177664227
ETIM 9
EC001531
ECLASS 8.0
27370304
Product description
SV OM adaptor, 32 A, 690 V, 3-pole, connection cable AWG 10, WH: 45x272 mm, support frame, support rail TS 45D, TS 45D-V
Three-pole, 32 A rating translates to a compact, high‑reliability feeder for 690 V control panels, enabling efficient load distribution without oversized components. This capability reduces panel footprint and simplifies wiring schematics, cutting part counts and assembly time in new builds or retrofits. The 130 mm connection cable length paired with AWG 10 conductors supports flexible routing and consistent contact quality, minimizing field terminations and associated rework while improving overall wiring safety. TS 45D rail compatibility and a dedicated support frame provide quick, stable mounting, reducing installation effort and ensuring alignment with standard busbar systems. UL SCCR 30 kA at 600 V and UL 94‑V0 rating deliver essential safety and compliance for demanding electrical environments, while the polyamide body adds flame retardancy for panel integrity. With a 60 mm busbar centre-to-centre spacing and a modest weight per pack, maintenance and replacement become straightforward for service teams. These features collectively translate to faster project delivery, fewer outages, and lower lifecycle costs in industrial automation setups.
Get a Quick Quote for a Rittal 9340390
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Rittal 9340390?
Enquire Now
FAQs
To install, place the adaptor onto the TS 45D rail with the frame aligned to the mounting surface, slide it until it seats on the rail, and secure with the appropriate fasteners. Ensure the centre-to-centre busbar spacing is set to 60 mm, connect the AWG 10 cable to the 130 mm lead, and verify a clean, fault‑free connection before energizing. This streamlined process reduces commissioning time and minimizes wiring errors in panel builds.
The SV 9340.390 OM adaptor is rated for 32 A continuous current and 690 V (3~). It supports a UL SCCR of up to 30 kA at 600 V, and uses a 3‑pole configuration. The 60 mm busbar spacing and 130 mm connection cable are designed to maintain reliable contact and safe voltage distribution, meeting common industrial safety standards for control panels.
Yes. The design explicitly supports 60 mm centre-to-centre spacing, and the adaptor includes a 60 mm busbar compatibility specification. This makes it particularly compatible with standard busbar layouts in Rittal enclosures and other TS 45D‑based power distribution schemes, simplifying integration into existing automation infrastructure.
The adaptor carries UL SCCR certification (30 kA at 600 V) and a UL 94‑V0 flame rating for the housing material. It is designed for TS 45D rail mounting and is compatible with AWG 10 conductors. The noted UL data ensures compliance in many industrial environments, while the UL 94‑V0 rating supports fire safety requirements within control cabinets.
The adaptor enables reliable, high‑quality power distribution with a compact footprint, reducing cabinet size and wiring complexity. It shortens installation and commissioning time, lowers wiring errors, and improves safety and compliance in automation projects. Using AWG 10 cables and TS 45D rails, it supports faster deployment and lower lifecycle costs in industrial environments.
