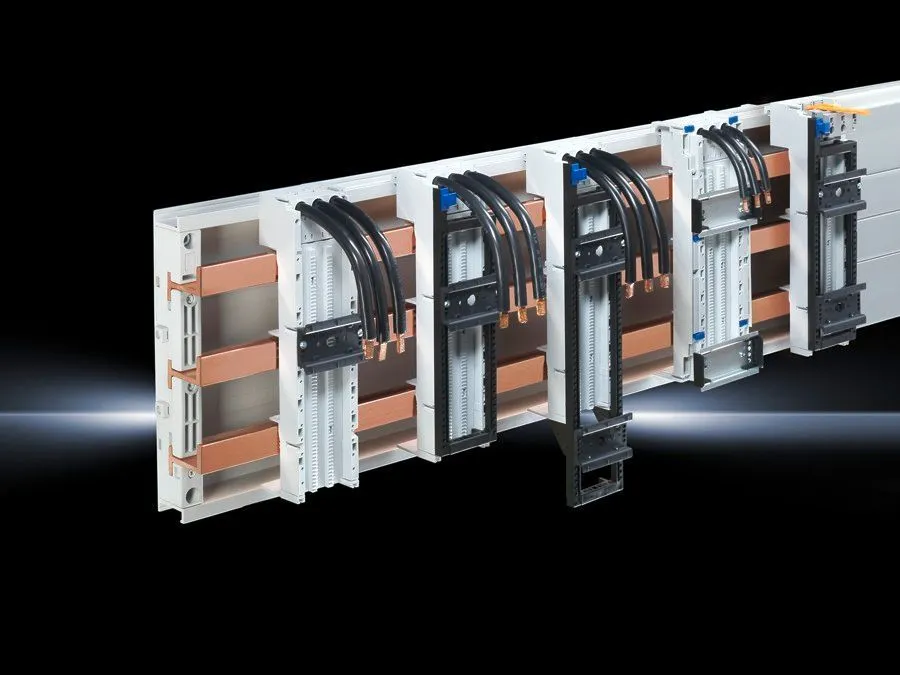

Rittal SV 9340.410 SV OM adaptor - 3-pole, UL SCCR 30 kA
Part Number: 9340410
Manufacturer
Rittal
Part number
9340410
Category
Alt Part Number
SV 9340.410
Quick Summary
Rittal SV 9340.410 SV OM adaptor provides a high-current, 3-pole interface for TS 55E rail-mounted power distribution in control cabinets. Engineers often grapple with secure busbar connections and limited space, leading to installation delays and non-compliance risks. This solution delivers UL SCCR up to 30 kA at 600 V and a UL 94-V0 flame rating, enhancing safety and reliability in harsh industrial environments. With a compact footprint and AWG 6 leads, it helps streamline panel builds while supporting efficient, compliant power distribution for automated systems and switchgear.
Product Information
Extended Description
9340410 Rittal: SV OM adaptor, 65 A, 690 V, 3-pole, connection cable AWG 6, WH: 55x208 mm, support rail TS 55E
Article number
SV 9340.410
Material
Polyamide | Fire protection corresponding to UL 94-V0
Colour
Chassis: RAL 7035
Connection cables (AWG)
AWG 6
Rated current max.
65 A
Rated operating voltage
690 V, 3~
Electrical ratings UL (SCCR)
30 kA - 600 V, Fuse Class K5 max. 60 A, JDDZ/7
For bar systems with centre-to-centre spacing
60 mm
Length of connection cable
130 mm
Support rail type
TS 55E
Note
The technical data may vary for UL applications
Number of poles
3-pole
Dimensions
Width: 55 mm | Height: 208 mm
Support rails Qty/height
1 / 10 mm
To fit busbars
Height: 5, 10 mm
Packs of
1 pc(s).
Weight/pack
0.367 kg
Copper weight (kg per piece)
0.116
Customs tariff number
85369095
EAN
4028177502536
ETIM 9
EC001531
ECLASS 8.0
27370304
Product description
SV OM adaptor, 65 A, 690 V, 3-pole, connection cable AWG 6, WH: 55x208 mm, support rail TS 55E
Feature: 65 A rated current and 690 V operating voltage. Business impact: Supports high-demand feeders without oversizing components, reducing panel complexity and inventory. Application: Ideal for 3-pole power distribution in control cabinets up to 690 V and 65 A per circuit. Feature: 55 mm width and 208 mm height on TS 55E rails. Business impact: Saves space in crowded panels, enabling denser rack layouts and easier cable routing. Application: DIN rail mounting within standard control enclosures. Feature: Connection cable length 130 mm with AWG 6 conductors. Business impact: Simplifies loom management and reduces voltage drop risks over short runs. Application: Fast, reliable wiring for feeders and interconnects in automation panels. Feature: UL SCCR 30 kA at 600 V and UL 94‑V0 material. Business impact: Improves safety compliance and fuse protection compatibility, lowering risk of fault-induced damage. Application: Industrial environments requiring stringent safety and performance standards. Feature: Chassis color RAL 7035 and modular fit for busbars up to 60 mm spacing. Business impact: Visual consistency and flexible busbar integration, facilitating quick future upgrades. Application: Panel automation projects with evolving power distribution needs.
Get a Quick Quote for a Rittal 9340410
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Rittal 9340410?
Enquire Now
FAQs
Install the SV OM adaptor by snapping it onto a TS 55E DIN rail, align with the 60 mm busbar spacing requirement, and secure. Connect the AWG 6 leads into the 3-pole terminals, ensuring a clean, short routing for the 130 mm connection cable. Verify dimensions (55 mm width x 208 mm height) fit within the enclosure footprint and perform a final torque check on all connections.
The adaptor is rated for up to 65 A and 690 V (3-phase). It provides UL SCCR up to 30 kA at 600 V and supports Fuse Class K5 up to 60 A (per JDDZ/7). The housing uses UL 94‑V0 flame-rated polyamide, contributing to overall electrical and fire safety in panel builds.
Yes. The adaptor is designed for bar systems with centre-to-centre spacing of 60 mm, and its dimensions (55 mm width x 208 mm height) and TS 55E mounting compatibility make it well-suited for compact control cabinets and distributed power layouts.
The device uses polyamide with a UL 94-V0 flame rating, and it carries UL SCCR ratings up to 30 kA at 600 V. While UL-based safety ratings are specified, always verify CE marking and additional certifications for your exact project and regional requirements.
Plan for a 55 mm x 208 mm footprint on the TS 55E rail, 130 mm cable length with AWG 6 conductors, and a total weight of approximately 0.367 kg per pack. Ensure the 60 mm busbar spacing is available, and account for the 3-pole configuration when routing power to downstream devices.
