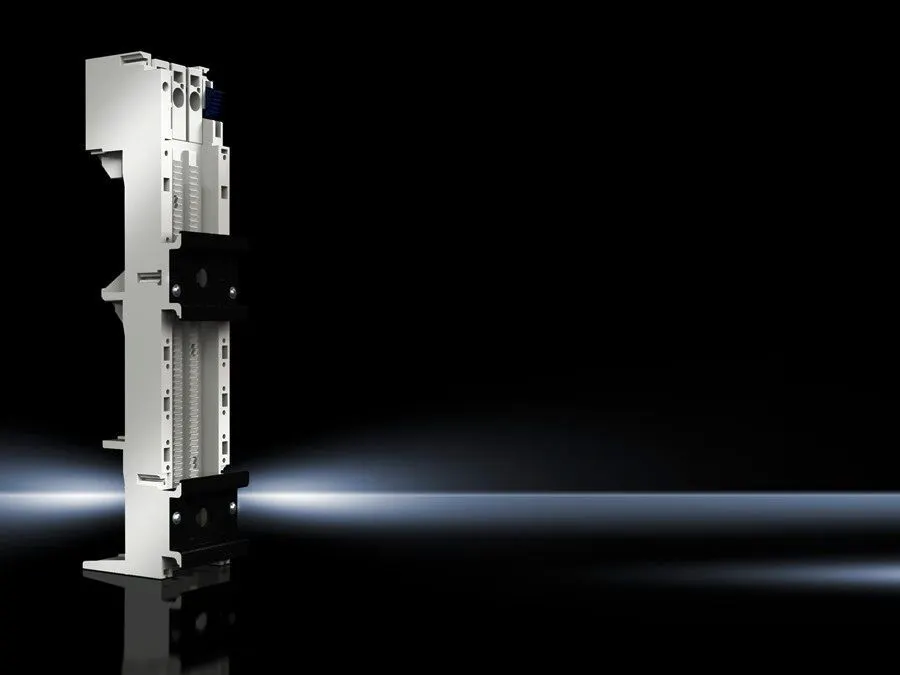

Rittal SV 9340.520 SV OM Adaptor - UL 94-V0
Part Number: 9340520
Manufacturer
Rittal
Part number
9340520
Category
Alt Part Number
SV 9340.520
Quick Summary
Rittal SV 9340.520 SV OM Adaptor is a 32 A, 690 V three-pole connector designed for TS 45D busbar systems in control panels. This accessory helps simplify wiring layouts and reduce mounting errors in compact enclosures. Its UL 94-V0 fire-rated polyamide body adds a critical safety margin, while the tension spring clamp supports 1.5-6 mm² conductors for reliable, vibration-resistant connections. In practice, engineers benefit from a precise fit that accommodates 60 mm center-to-center spacing and two TS 45D rails, enabling faster assembly and consistent electrical performance. For panel builders and integrators, this adaptor translates to improved reliability, easier field maintenance, and better compliance with industry wiring standards, especially in automation and machine-side panels.
Product Information
Extended Description
9340520 Rittal: SV OM adaptor, 32 A, 690 V, 3-pole, tension spring clamp 1,5-6 mm², WH: 45x208 mm, support rail 2xTS 45D
Article number
SV 9340.520
Material
Polyamide | Fire protection corresponding to UL 94-V0
Colour
Chassis: RAL 7035
Rated current max.
32 A
Rated operating voltage
690 V, 3~
For bar systems with centre-to-centre spacing
60 mm
Support rail type
TS 45D
Number of poles
3-pole
Dimensions
Width: 45 mm | Height: 208 mm
Connection for round conductor
1.5 ‐ 6 mm²
Support rails Qty/height
2 / 10 mm
To fit busbars
Height: 5, 10 mm
Packs of
1 pc(s).
Weight/pack
0.24 kg
Copper weight (kg per piece)
0.027
Customs tariff number
85369095
EAN
4028177630710
ETIM 9
EC001531
ECLASS 8.0
27370304
Product description
SV OM adaptor, 32 A, 690 V, 3-pole, tension spring clamp 1,5-6 mm², WH: 45x208 mm, support rail 2xTS 45D
Feature → Business Impact → Application: The SV OM adaptor uses a 3-pole design rated for 32 A at 690 V, delivering a robust high-voltage connection that reduces the risk of overheating in demanding automation environments. This translates to lower maintenance costs and fewer field failures in control cabinets where space is at a premium, such as automotive and packaging lines. Application: Install on TS 45D rails to ensure secure, standards-compliant busbar mounting in inline power distribution setups. Feature → Business Impact → Application: Tension spring clamp accepts 1.5-6 mm² round conductors, enabling quick, tool-free termination with solid retention and improved electrical contact reliability over time. Application: Ideal for compact control panels needing rapid wiring and vibration resistance in harsh environments. Feature → Business Impact → Application: Polyamide body with UL 94-V0 fire protection provides a safer enclosure interior, reducing risk in high-energy assemblies. Application: Suitable for enclosures with strict fire safety requirements and narrow space constraints. Feature → Business Impact → Application: 45 mm width and 208 mm height, plus 60 mm center-to-center bar spacing, facilitate predictable fit in standard panel layouts. Application: Streamlines cabinet design, minimizing deviations in multi-bay installations. Feature → Business Impact → Application: Support rails 2 x TS 45D and height options up to 10 mm for taller busbar configurations, enabling flexible mounting and future expansion. Application: Enables scalable power distribution in evolving automation projects. Feature → Business Impact → Application: Material and finish—Chassis color RAL 7035 and precise dimensions—support standardization across product families, reducing engineering variance. Application: Improves part traceability and aesthetic consistency in panel builds. Feature → Business Impact → Application: Clear product description and compatibility with 60 mm busbar spacing ensures engineers can rapidly verify fit during design reviews. Application: Accelerates project timeliness and reduces procurement bottlenecks. Feature → Business Impact → Application: Customs tariff 85369095 and ETIM/ECLASS mappings support accurate cataloging and cross-system data alignment for procurement ecosystems. Application: Simplifies ERP and PDM integrations in electronics and automation supply chains.
