Rittal 9340530 SV OM adaptor - 32 A, 690 V UL 94-V0
Part Number: 9340530
Manufacturer
Rittal
Part number
9340530
Category
Alt Part Number
SV 9340.530
Quick Summary
Rittal SV OM adaptor enables safe 32 A distribution at up to 690 V for 3-pole bus systems in control cabinets. This solution addresses installation challenges such as unreliable connections and cramped layouts by integrating a tension spring clamp with a compact 45x208 mm footprint. Key safety references include UL 94-V0 flame resistance of the polyamide housing, while ETIM EC001531 and ECLASS 27370304 support consistent procurement data. For engineers and buyers, the TS 45C rail compatibility, 60 mm centre-to-centre spacing, and busbar-height options simplify design decisions and speed up commissioning. Operational data and mechanical fit are predictable, enabling staged upgrades without cabinet downtime.
Product Information
Extended Description

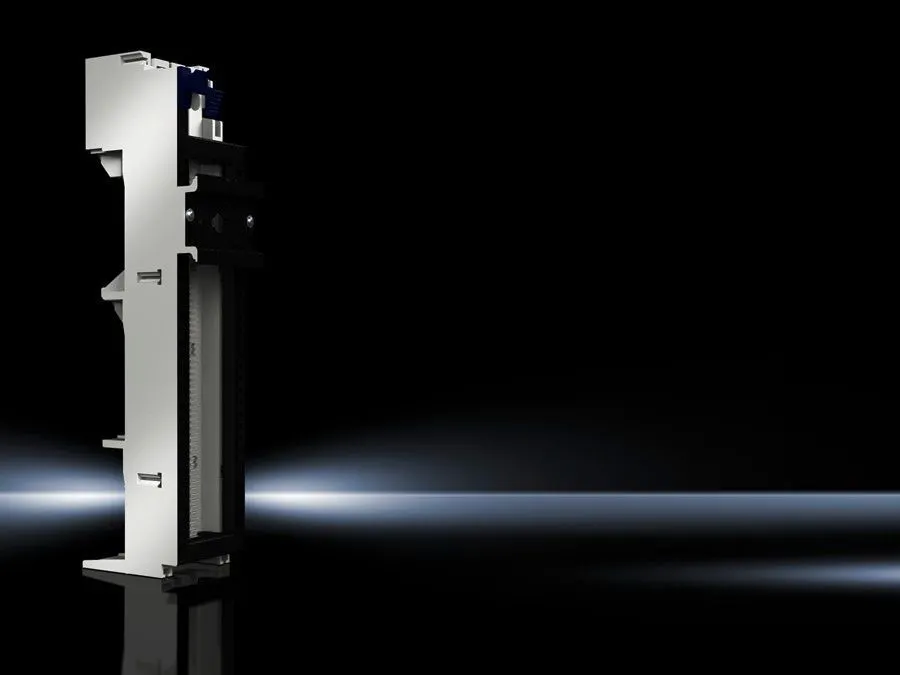

9340530 Rittal: SV OM adaptor, 32 A, 690 V, 3-pole, tension spring clamp 1,5-6 mm², WH: 45x208 mm, support frame, support rail TS 45C
Article number
SV 9340.530
Material
Polyamide | Fire protection corresponding to UL 94-V0
Colour
Chassis: RAL 7035
Rated current max.
32 A
Rated operating voltage
690 V, 3~
For bar systems with centre-to-centre spacing
60 mm
Support rail type
TS 45C
Number of poles
3-pole
Dimensions
Width: 45 mm | Height: 208 mm
Connection for round conductor
1.5 ‐ 6 mm²
Support rails Qty/height
1 / 10 mm
To fit busbars
Height: 5, 10 mm
Support frame (W x H)
45 mm x 170 mm
Packs of
1 pc(s).
Weight/pack
0.26 kg
Copper weight (kg per piece)
0.027
Customs tariff number
85369095
EAN
4028177502628
ETIM 9
EC001531
ECLASS 8.0
27370304
Product description
SV OM adaptor, 32 A, 690 V, 3-pole, tension spring clamp 1,5-6 mm², WH: 45x208 mm, support frame, support rail TS 45C
Feature: The SV OM adaptor provides 32 A max current at 690 V in a compact 3-pole module designed for TS 45C rail mounting. Business Impact: Delivers reliable, centralized power distribution within control cabinets, reducing the number of adapters and simplifying wiring diagrams. Application: Ideal for motor control centers and switchgear installations where space is limited and quick changes are routine. Feature: Tension spring clamp accommodates 1.5‑6 mm² conductors, delivering secure, vibration-resistant connections. Business Impact: Minimizes loosening risks in environments with vibration or thermal cycling, lowering maintenance and rework costs. Application: Suitable for rugged industrial panels and high-energy assemblies. Feature: Flame-retardant Polyamide housing with UL 94‑V0 protection. Business Impact: Enhances cabinet safety and regulatory alignment without additional enclosure liners. Application: Interior cabinet fittings in factories and process plants. Feature: 60 mm centre-to-centre spacing; compatible with TS 45C rails and standard busbar layouts. Business Impact: Simplifies system integration and retrofit projects, accelerating commissioning without custom mounting hardware. Application: Retrofit projects and new builds using common DIN rail configurations. Feature: Defined footprint and mounting frame 45x170 mm; weight-efficient design (0.26 kg per pack). Business Impact: Predictable installation footprint improves panel planning and reduces shipping/handling costs. Application: Space-constrained control panels and modular distribution setups. Feature: Busbar height adjustability (5, 10 mm) and compatibility with 60 mm spacing. Business Impact: Enables flexible configurations for varying busbar geometries, cutting design-time in half for some projects. Application: Complex electrical cabinets with mixed busbar sizes.
