Rittal 9340560 SV OM adaptor - 690 V 32 A UL 94-V0
Part Number: 9340560
Manufacturer
Rittal
Part number
9340560
Category
Alt Part Number
SV 9340.560
Quick Summary
Rittal SV OM adaptor is a 32 A, 690 V three‑pole interface designed for compact power distribution in control enclosures. Engineers often struggle with wiring density and safe mounting on TS 45D rails. This adaptor supports UL 94‑V0 fire protection material and is classified in ETIM EC001531 and ECLASS 27370304, helping you meet compliance. With a 60 mm centre-to-centre spacing, TS 45D compatibility, and 1.5–6 mm² conductor range, it speeds installation while aligning with procurement and maintenance workflows for modular power rails.
Product Information
Extended Description

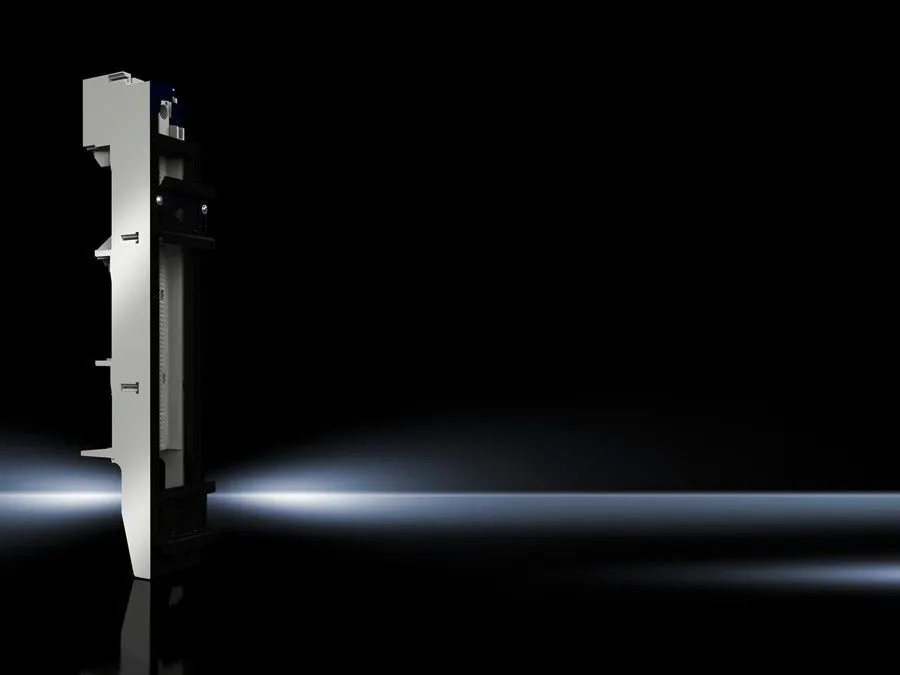

9340560 Rittal: SV OM adaptor, 32 A, 690 V, 3-pole, tension spring clamp 1,5-6 mm², WH: 45x272 mm, support frame, support rail TS 45D, TS 45D-V
Article number
SV 9340.560
Material
Polyamide | Fire protection corresponding to UL 94-V0
Colour
Chassis: RAL 7035
Rated current max.
32 A
Rated operating voltage
690 V, 3~
For bar systems with centre-to-centre spacing
60 mm
Support rail type
TS 45D
Number of poles
3-pole
Support frame support
Yes
Dimensions
Width: 45 mm | Height: 272 mm
Connection for round conductor
1.5 ‐ 6 mm²
Support rails Qty/height
2 / 10 mm
To fit busbars
Height: 5, 10 mm
Support frame (W x H)
45 mm x 237 mm
Packs of
1 pc(s).
Weight/pack
0.3 kg
Copper weight (kg per piece)
0.027
Customs tariff number
85369095
EAN
4028177664234
ETIM 9
EC001531
ECLASS 8.0
27370304
Product description
SV OM adaptor, 32 A, 690 V, 3-pole, tension spring clamp 1,5-6 mm², WH: 45x272 mm, support frame, support rail TS 45D, TS 45D-V
Feature: 32 A, 690 V three‑pole rating enables high power handling in a compact frame. Business impact: supports reliable power distribution in control cabinets, reducing overheating risk and enabling tight layouts. Application: ideal for TS 45D rail installations in automated lines, improving panel density without compromising safety. Feature: tension spring clamp for 1.5–6 mm² conductors. Impact: faster wiring with secure, vibration‑tolerant contacts, lowering torque losses and rework. Application: servo drives and motor starters. Feature: TS 45D rail compatibility and 60 mm centre spacing. Impact: straightforward retrofit on standard frames, minimizing misalignment. Application: modular busbar layouts in control panels. Feature: UL 94‑V0 polyamide housing with chassis color RAL 7035. Impact: fire safety compliance and durable operation in harsh environments. Application: electrical enclosures in industrial plants. Feature: single package with 0.3 kg per pack and copper weight 0.027 kg per piece; EAN 4028177664234. Impact: predictable handling, easier inventory, and material traceability. Application: procurement and stocking for repetitive installations.
