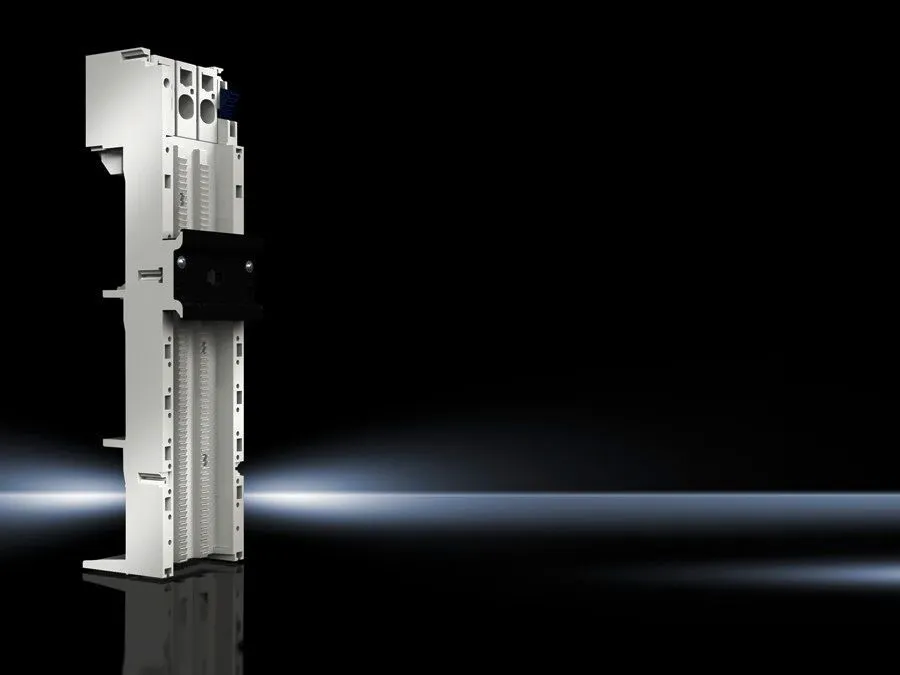

Rittal SV 9340.610 SV OM Adaptor - 65A/690V, 3-Pole
Part Number: 9340610
Manufacturer
Rittal
Part number
9340610
Category
Alt Part Number
SV 9340.610
Quick Summary
SV OM adaptor is a compact, 65 A, 690 V solution for secure 3‑pole connections in TS 55E rail systems. Engineers often struggle with safe termination and limited space in dense panel distributions, especially when wiring for 60 mm centre‑to‑centre layouts. It uses UL 94‑V0 fire‑protective polyamide and aligns with IEC 61439‑1 heat dissipation guidelines, supporting reliable performance in demanding environments. The adaptor integrates cleanly with Rittal busbar ecosystems, offering straightforward installation and predictable current handling, while reducing wiring complexity and maintenance costs over the life of the cabinet.
Product Information
Extended Description
9340610 Rittal: SV OM adaptor, 65 A, 690 V, 3-pole, tension spring clamp 2,5-16 mm², WH: 55x208 mm, support rail TS 55E
Article number
SV 9340.610
Material
Polyamide | Fire protection corresponding to UL 94-V0
Colour
Chassis: RAL 7035
Rated current max.
65 A
Rated operating voltage
690 V, 3~
For bar systems with centre-to-centre spacing
60 mm
Support rail type
TS 55E
Number of poles
3-pole
Note on Model No.
According to a heat dissipation test to IEC 61 439-1, a current carrying capacity of up to 80 A is supported
Dimensions
Width: 55 mm | Height: 208 mm
Connection for round conductor
2.5 ‐ 16 mm²
Support rails Qty/height
1 / 10 mm
To fit busbars
Height: 5, 10 mm
Packs of
1 pc(s).
Weight/pack
0.3 kg
Copper weight (kg per piece)
0.059
Customs tariff number
85369095
EAN
4028177502659
ETIM 7.0
EC001531
ECLASS 8.0
27370304
Product description
SV OM adaptor, 65 A, 690 V, 3-pole, tension spring clamp 2,5-16 mm², WH: 55x208 mm, support rail TS 55E
Feature: TS 55E rail compatibility enables immediate integration with standard enclosure frames. Business Impact: Faster, error‑free installations and reduced mounting time during panel build. Application: Ideal for control cabinets and switchgear where compact, reliable busbar connections are required. Feature: 2.5–16 mm² tension spring clamps provide a wide conductor range. Business Impact: Flexible wiring without additional terminals or adapters, lowering assembly costs. Application: Suitable for mixed copper conductors in power-distribution feeders. Feature: 65 A rated current at 690 V for a 3‑pole configuration. Business Impact: Safe, scalable power throughput with headroom for short‑term overloads; minimizes risk of overheating. Application: Panel power distribution in medium‑voltage systems. Feature: UL 94‑V0 fire‑protective material and chassis color in RAL 7035. Business Impact: Enhanced safety and predictable aesthetics in industrial environments. Application: Enclosures with strict fire and appearance requirements. Feature: Dimensions 55 x 208 mm and TS 55E spacing 60 mm center‑to‑center. Business Impact: Compact footprint for dense layouts and standardized mounting. Application: High‑density control panels and modular assemblies. Feature: Heat dissipation note permits up to 80 A per IEC 61439‑1 guidance. Business Impact: Verified performance under thermal stress, reducing the need for oversized cooling. Application: Continuous operation under peak load conditions in automation racks.
