Rittal SV 9340.650 SV OM adaptor - 80 A (IEC 61439-1)
Part Number: 9340650
Manufacturer
Rittal
Part number
9340650
Category
Alt Part Number
SV 9340.650
Quick Summary
Rittal SV 9340.650 SV OM adaptor provides high‑current power distribution for 3‑pole, TS rail enclosures. In fast‑paced panel builds, ambiguous connections and tight spaces slow projects and increase risk. The design emphasizes UL 94‑V0 fire protection, IEC 61439‑1 heat dissipation testing, and rugged TS rail integration for reliable safety and compliance. With compact dimensions and a secure mounting frame, it enables scalable power distribution in industrial cabinets while supporting 2.5–16 mm² conductor ranges and TS 55E rails for easy system expansion.
Product Information
Extended Description

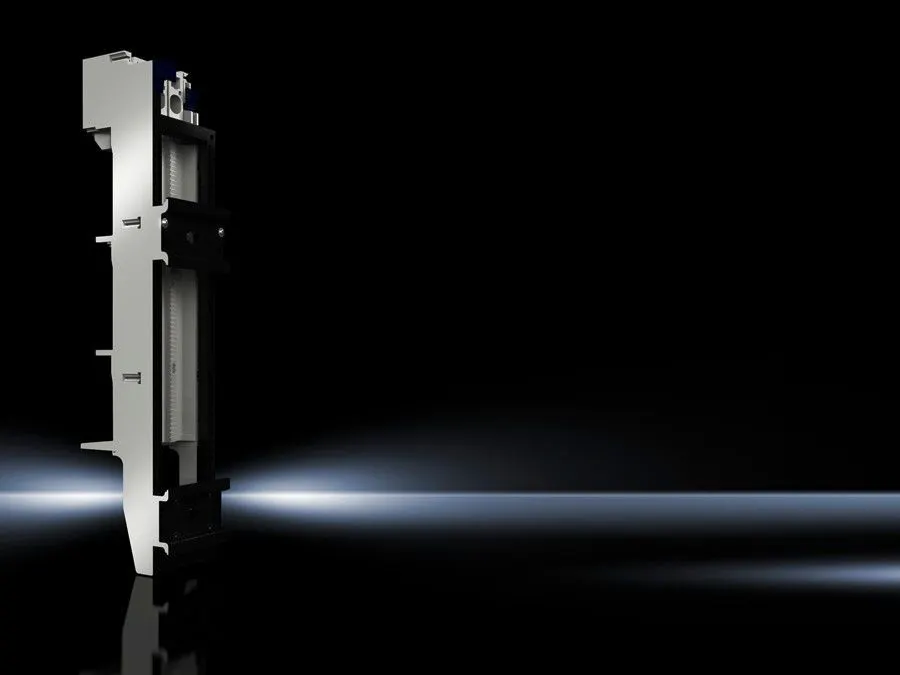

9340650 Rittal: SV OM adaptor, 65 A, 690 V, 3-pole, tension spring clamp 2,5-16 mm², WH: 55x272 mm, support frame, support rail TS 55E, TS 55D-V
Article number
SV 9340.650
Material
Polyamide | Fire protection corresponding to UL 94-V0
Colour
Chassis: RAL 7035
Rated current max.
65 A
Rated operating voltage
690 V, 3~
For bar systems with centre-to-centre spacing
60 mm
Support rail type
TS 55E
Number of poles
3-pole
Support frame support
Yes
Note on Model No.
According to a heat dissipation test to IEC 61 439-1, a current carrying capacity of up to 80 A is supported
Dimensions
Width: 55 mm | Height: 272 mm
Connection for round conductor
2.5 ‐ 16 mm²
Support rails Qty/height
2 / 10 mm
To fit busbars
Height: 5, 10 mm
Support frame (W x H)
55 mm x 237 mm
Packs of
1 pc(s).
Weight/pack
0.34 kg
Copper weight (kg per piece)
0.059
Customs tariff number
85369095
EAN
4028177502673
ETIM 9
EC001531
ECLASS 8.0
27370304
Product description
SV OM adaptor, 65 A, 690 V, 3-pole, tension spring clamp 2,5-16 mm², WH: 55x272 mm, support frame, support rail TS 55E, TS 55D-V
Feature: High current capability with 3‑pole configuration. Business Impact: Delivers reliable distribution at rated currents with potential for higher transient capacity per heat dissipation tests, reducing the need for additional connectors and components. Application: 65 A rated current at 690 V in 3‑phase panel assemblies, with notes indicating up to 80 A capability for demanding loads. Feature: Flexible conductor termination. Business Impact: Tension spring clamp accepts 2.5–16 mm² conductors, improving termination reliability and reducing rework in confined cabinets. Application: Safe and repeatable terminations for power feeds to modular busbars and devices. Feature: Rail and frame compatibility. Business Impact: Designed for TS 55E rails with a dedicated support frame, enabling rapid installation and consistent alignment across assemblies. Application: Ideal for TS 55E/55D‑V rail systems in Rittal enclosures. Feature: Robust materials and safety. Business Impact: Polyamide body with UL 94‑V0 fire protection supports safer compliance in harsh environments, minimizing risk of flame spread. Application: Panels, cabinets, and control rooms where fire safety is critical. Feature: Compact, documented specs. Business Impact: Precise dimensions (WH 55x272 mm) and clear compatibility data streamline procurement and installation planning, reducing design iterations. Application: Panel design workflows and BOM accuracy for industrial electrical distribution.
