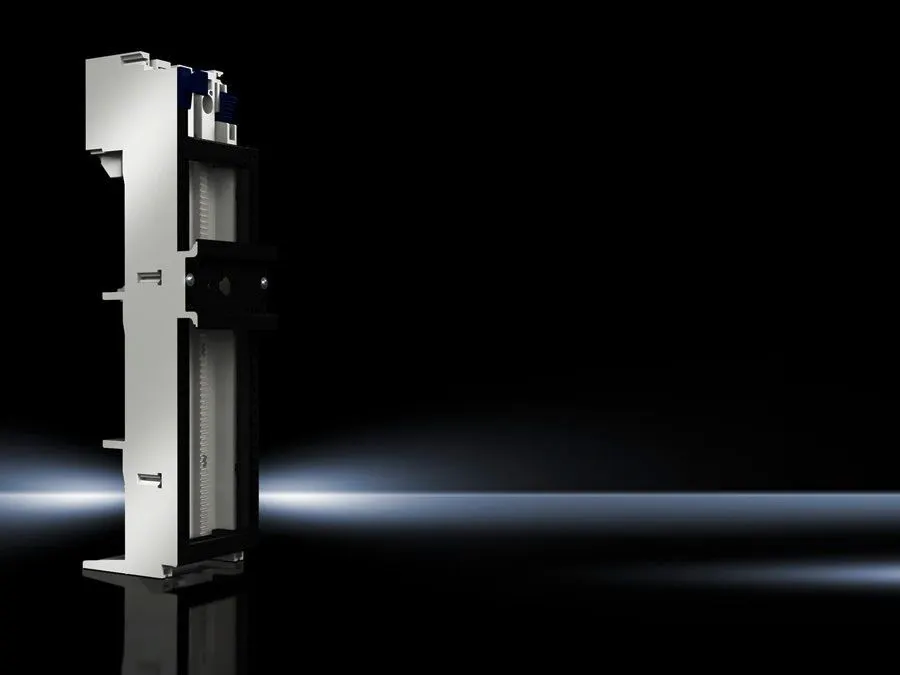

Rittal 9340660 SV OM adaptor - 32 A, 690 V UL 94-V0
Part Number: 9340660
Manufacturer
Rittal
Part number
9340660
Category
Alt Part Number
SV 9340.660
Quick Summary
Rittal SV OM adaptor provides compact, 3-pole power distribution for 32 A at 690 V within control cabinets. Engineers often struggle with crowded panels and wiring complexity; this adaptor simplifies mounting by integrating a support frame and TS 55D rail compatibility for fast, secure installations. Notable certifications and standards include UL 94-V0 fire protection for the polyamide housing and alignment with industry classifications such as ETIM EC001531 and ECLASS 27370304 to ensure seamless procurement data. In practice, this means safer, more reliable assemblies with predictable BOMs, while enabling scalable expansion in power management and distribution systems.
Product Information
Extended Description
9340660 Rittal: SV OM adaptor, 32 A, 690 V, 3-pole, tension spring clamp 1,5-6 mm², WH: 55x208 mm, support frame, support rail TS 45D
Article number
SV 9340.660
Material
Polyamide | Fire protection corresponding to UL 94-V0
Colour
Chassis: RAL 7035
Rated current max.
32 A
Rated operating voltage
690 V, 3~
For bar systems with centre-to-centre spacing
60 mm
Support rail type
TS 55D
Number of poles
3-pole
Dimensions
Width: 55 mm | Height: 208 mm
Connection for round conductor
1.5 ‐ 6 mm²
Support rails Qty/height
1 / 10 mm
To fit busbars
Height: 5, 10 mm
Support frame (W x H)
55 mm x 170 mm
Packs of
1 pc(s).
Weight/pack
0.28 kg
Copper weight (kg per piece)
0.027
Customs tariff number
85369095
EAN
4028177502680
ETIM 9
EC001531
ECLASS 8.0
27370304
Product description
SV OM adaptor, 32 A, 690 V, 3-pole, tension spring clamp 1,5-6 mm², WH: 55x208 mm, support frame, support rail TS 45D
Feature: 3-pole power module rated for 32 A at 690 V. Business Impact: Enables high-current distribution within compact cabinet footprints without compromising safety or performance. Application: Ideal for 3-pole circuit provisions in enclosure-mounted power strips and busbar assemblies. Feature: Tension spring clamp supporting 1.5-6 mm² conductors. Business Impact: Delivers vibration-resistant terminations with repeatable contact pressure, reducing maintenance and connection risk. Application: Suitable for modular wiring in TS 55D rail installations. Feature: Integrated support frame (55 mm x 170 mm) and TS 45D rail compatibility. Business Impact: Simplifies mounting and alignment, shortening commissioning times and enabling faster panel assembly. Application: Fits standard Rittal enclosures and bar-system configurations with 60 mm center-to-center spacing. Feature: Busbar compatibility (Height 5, 10 mm). Business Impact: Supports adaptable busbar integration, enabling flexible distribution topologies and future upgrades. Application: Enables multi-tier busbar systems within cabinet interiors. Feature: UL 94-V0 compliant polyamide housing. Business Impact: Improves fire safety performance and regulatory confidence while maintaining lightweight construction. Application: Industry-standard housings for electrical distribution components. Feature: Detailed spec set (Packs of 1, weight 0.28 kg, copper weight 0.027 kg). Business Impact: Aids precise BOM planning, inventory management, and cost estimation for procurement and logistics. Application: Useful for batch manufacturing and maintenance planning in control cabinets.
Get a Quick Quote for a Rittal 9340660
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Rittal 9340660?
Enquire Now
FAQs
Install the SV OM adaptor by aligning the 55 mm width with the TS 55D rail, securing the adaptor to the frame (55 x 170 mm) and using the built-in support rail system. The unit is designed for 60 mm centre-to-centre bar spacing, with a 3-pole configuration and 1.5-6 mm² conductor range. This streamlines mounting and reduces wiring complexity during panel commissioning.
Key specifications include 32 A maximum current, 690 V rated operating voltage (3~), 3-pole configuration, and a conductor range of 1.5-6 mm² with tension spring clamps. The unit uses polyamide housing with UL 94-V0 fire protection and is designed for 60 mm bar-system spacing, making it suitable for high-performance cabinet distributions.
Yes, the SV OM adaptor is designed to fit busbars with 5 or 10 mm height and works with bar systems that have a centre-to-centre spacing of 60 mm. This compatibility supports scalable busbar topologies and enables modular expansion within TS 55D rail frameworks, reducing rework when migrating to higher current or different configurations.
The housing material provides UL 94-V0 fire protection, denoting flame retardant performance. The product data also references ETIM 9 (EC001531) and ECLASS 8.0 (27370304) classifications for procurement and catalog interoperability. Note that explicit CE certification isn’t stated; confirm with your compliance team for EU-wide requirements in your region.
The adaptor reduces wiring complexity through integrated frame and rail mounting, speeding installation and commissioning. Its secure 1.5-6 mm² conductor clamps lower fault risk, while UL 94-V0 housing improves safety. Combined with precise BOM data (weight, pack size, copper weight), these factors translate to lower labor costs, fewer field rewires, and better lifecycle reliability.
