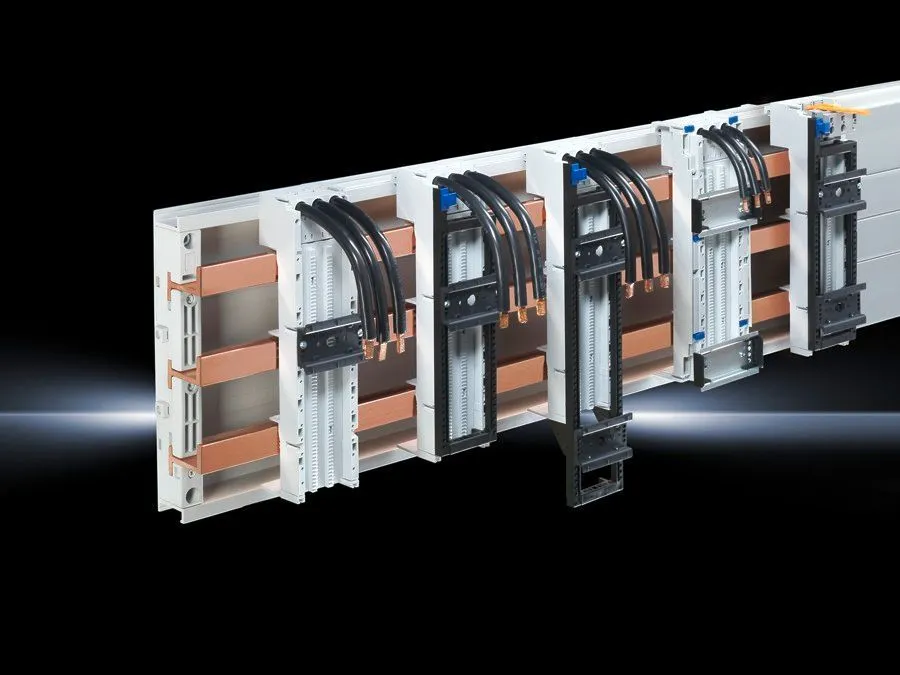

Rittal SV 9340.700 SV OM adaptor - 65 A, 690 V, 3-pole
Part Number: 9340700
Manufacturer
Rittal
Part number
9340700
Category
Alt Part Number
SV 9340.700
Quick Summary
SV 9340.700 is a 65 A, 690 V SV OM adaptor for 3-pole busbar connections. Engineers often struggle with space, safety, and UL compliance when expanding power distribution in cabinets. Key certifications include UL SCCR 30 kA at 600 V and UL 94‑V0 fire rating, supporting compliant installations. The durable metal DIN rail interface, compact footprint, and 130 mm connection cable simplify mounting while improving reliability in panel builds.
Product Information
Extended Description
9340700 Rittal: SV OM adaptor, 65 A, 690 V, 3-pole, connection cable AWG 6, WH: 75x208 mm, 2 insert strips, metal support rail
Article number
SV 9340.700
Material
Polyamide | Fire protection corresponding to UL 94-V0
Colour
Chassis: RAL 7035
Connection cables (AWG)
AWG 6
Rated current max.
65 A
Rated operating voltage
690 V, 3~
Electrical ratings UL (SCCR)
30 kA - 600 V, Fuse Class K5 max. 60 A, JDDZ/7
For bar systems with centre-to-centre spacing
60 mm
Length of connection cable
130 mm
Support rail type
Metal
Note
The technical data may vary for UL applications
Number of poles
3-pole
Dimensions
Width: 75 mm | Height: 208 mm
Support rails Qty/height
1 / 7.5 mm
To fit busbars
Height: 5, 10 mm
Packs of
1 pc(s).
Weight/pack
0.42 kg
Copper weight (kg per piece)
0.116
Customs tariff number
85369095
EAN
4028177525566
ETIM 9
EC001531
ECLASS 8.0
27370304
Product description
SV OM adaptor, 65 A, 690 V, 3-pole, connection cable AWG 6, WH: 75x208 mm, 2 insert strips, metal support rail
Feature: High current capability and voltage rating → Business Impact: Enables consolidation of multiple feeds into a single 65 A, 690 V 3-pole adaptor, reducing wiring complexity and potential fault paths. Application: Ideal for Rittal enclosure power interfaces in industrial automation. Feature: 3-pole design with 60 mm center-to-center spacing → Business Impact: Ensures precise alignment with standard busbars, minimizing installation time and misconnection risk. Application: Panels and switchgear assemblies requiring clean 3‑phase distribution. Feature: Material and safety engineering → Business Impact: Polyamide with UL 94-V0 rating plus a metal support rail improves fire safety and mechanical stability. Application: Harsh environments and UL-regulated panels. Feature: Electrical ratings and protection → Business Impact: UL SCCR 30 kA at 600 V and Fuse Class K5 max 60 A provide short-circuit resilience and regulatory compliance. Application: Critical power feeds in manufacturing lines. Feature: Installation efficiency and footprint → Business Impact: Footprint 75×208 mm, weight 0.42 kg, single-pack solution simplifies logistics and reduces total cost of ownership. Application: Quick deployments in compact control cabinets.
Get a Quick Quote for a Rittal 9340700
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Rittal 9340700?
Enquire Now
FAQs
The SV 9340.700 is designed for Rittal busbar systems and uses a 3-pole configuration with centre-to-centre spacing of 60 mm. It attaches to a metal DIN rail and requires busbar heights of 5 or 10 mm, with AWG 6 connection cables of 130 mm length, enabling quick, reliable integration into existing enclosures.
This adaptor supports up to 65 A and 690 V (3~) with UL SCCR rated at 30 kA at 600 V. It uses UL 94‑V0 compliant material and includes a metal support rail for robust mechanical integrity, along with documentation noting UL-related variations in data.
Ideal for panel power distribution in industrial cabinets, control panels, and machine encloses where space is tight and reliable 3‑phase connections are required. It suits environments that demand UL-based short-circuit resilience and durable mounting on standard DIN rails.
Certifications and references include UL SCCR ratings (30 kA at 600 V) and UL 94‑V0 fire rating for the plastic parts. The product data also lists ETIM 9 EC001531 and ECLASS 8.0 27370304, with a note that UL data may vary for certain applications.
With a compact footprint (75×208 mm), 2 insert strips, and a single metal DIN rail interface, installation is faster and requires fewer components. Weight per pack is 0.42 kg and copper weight is 0.116 kg, contributing to easier handling, reduced downtime, and predictable maintenance in factory settings.
