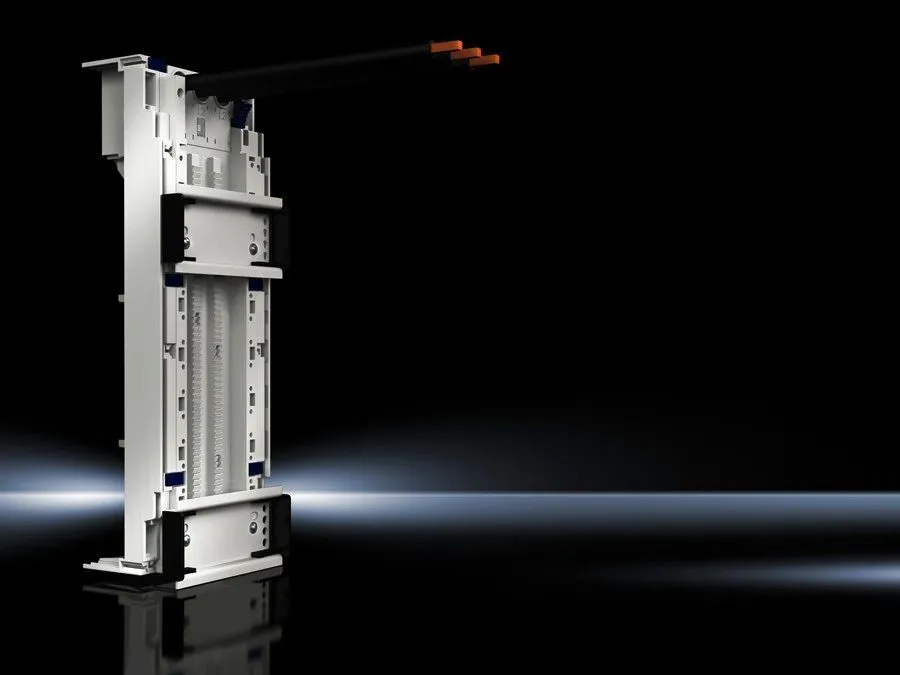

Rittal SV 9340.710 SV OM Adaptor - 40 A UL SCCR 30 kA
Part Number: 9340710
Manufacturer
Rittal
Part number
9340710
Category
Alt Part Number
SV 9340.710
Quick Summary
Rittal SV 9340.710 SV OM Adaptor is a compact power distribution adaptor designed for modular control cabinets and busbar systems. Engineers often struggle with wiring complexity and space constraints in dense panel layouts, which this adaptor helps mitigate by delivering a clean 3-pole connection in a slim footprint. Key certifications include UL SCCR ratings of 30 kA at 600 V and UL 94-V0 fire protection for the polyamide body, with note that UL data can vary by application. By combining robust electrical ratings with straightforward installation, it supports faster commissioning, reduces wiring errors, and improves overall enclosure reliability for industrial environments. This solution also reinforces compatibility with standard 60 mm busbar spacing and 5–10 mm busbar heights for flexible layouts.
Product Information
Extended Description
9340710 Rittal: SV OM adaptor, 40 A, 690 V, 3-pole, connection cable AWG 8, WH: 75x208 mm, 2 insert strips, 2 metal support rails
Article number
SV 9340.710
Material
Polyamide | Fire protection corresponding to UL 94-V0
Colour
Chassis: RAL 7035
Connection cables (AWG)
AWG 8
Rated current max.
40 A
Rated operating voltage
690 V, 3~
Electrical ratings UL (SCCR)
30 kA - 600 V, Fuse Class K5 max. 60 A, JDDZ/7
For bar systems with centre-to-centre spacing
60 mm
Length of connection cable
130 mm
Support rail type
Metal
Note
The technical data may vary for UL applications
Number of poles
3-pole
Dimensions
Width: 75 mm | Height: 208 mm
Support rails Qty/height
2 / 7.5 mm
To fit busbars
Height: 5, 10 mm
Packs of
1 pc(s).
Weight/pack
0.38 kg
Copper weight (kg per piece)
0.088
Customs tariff number
85369095
EAN
4028177531116
ETIM 9
EC001531
ECLASS 8.0
27370304
Product description
SV OM adaptor, 40 A, 690 V, 3-pole, connection cable AWG 8, WH: 75x208 mm, 2 insert strips, 2 metal support rails
Feature → Business Impact → Application: 3-pole, 40 A, 690 V connection delivers reliable three-phase distribution with minimal voltage drop in compact control cabinets, enabling tighter panel layouts and faster startup. This translates to measurable efficiency gains during commissioning and lower field wiring costs in medium-voltage DC/AC applications. Application: Use in Rittal enclosures where 60 mm busbar spacing is required and AWG 8 cables are specified for load connections alongside 2 insert strips and 2 metal support rails. Feature → Business Impact → Application: Polyamide body with UL 94-V0 rating provides flame retardance and structural integrity in elevated temperature cabinet environments, reducing risk of enclosure fires and speeding safety approvals for UL-listed builds. Application: Applicable to cabinets demanding certified fire-safe components in harsh industrial settings. Feature → Business Impact → Application: 130 mm cable length and 75x208 mm footprint optimize space utilization and mounting flexibility, enabling neat cable routing and easier access for maintenance. Application: Ideal for retrofit projects and new builds where clearances are tight. Feature → Business Impact → Application: Compatibility with 60 mm busbars and height-adjustable busbar options (5 or 10 mm) ensures broad applicability across standard racking configurations, lowering the need for custom adapters. Application: Use in modular rack systems across machine centers and packaging lines. Feature → Business Impact → Application: UL SCCR 30 kA at 600 V and fuse-class compatibility (K5 up to 60 A) enhance short-circuit protection and compliance, reducing risk of overcurrent events. Application: Critical for safety-critical panels in automotive, food & beverage, and process industries. Feature → Business Impact → Application: Material and build quality (metal support rails, AWG 8 connection) improve mechanical robustness and long-term reliability, lowering maintenance cycles and replacement costs. Application: Suitable for environments with vibration, such as packaging machines and conveyors.
Get a Quick Quote for a Rittal 9340710
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Rittal 9340710?
Enquire Now
FAQs
The adaptor is designed for 60 mm centre-to-centre busbar spacing and uses the included metal support rails and two insert strips for stable mounting. Route AWG 8 cables to the 130 mm connection length, ensuring clean routing and strain relief. Verify clearances around the 75 mm width and 208 mm height to avoid interference with adjacent components.
It is a 3-pole adaptor rated for 40 A and 690 V (3~). It carries UL SCCR up to 30 kA at 600 V and supports Fuse Class K5 up to 60 A with JDDZ/7. These specs deliver reliable short-circuit protection and safe operation in standard industrial control panels, with performance margins suitable for typical motor and drive connections.
Best suited for modular control cabinets and busbar systems in manufacturing and packaging lines, where 60 mm busbar spacing and AWG 8 conductors are common. Its compact footprint (75x208 mm) and dual support rails support tidy installations and quick replacements during line upgrades or maintenance windows.
Key certifications include UL 94-V0 flame resistance for the polyamide body and UL SCCR ratings (30 kA at 600 V) for short-circuit resilience. Note that some data may vary for UL applications, so it's essential to confirm suitability for your specific market and safety approvals during design review.
The adaptor’s robust build with metal support rails and a fixed cable length reduces wiring errors and downtime during servicing. Its standardized dimensions and compatibility with common 60 mm busbars streamline replacements and upgrades, delivering lower installed cost and faster return on investment in high-mix production environments.
