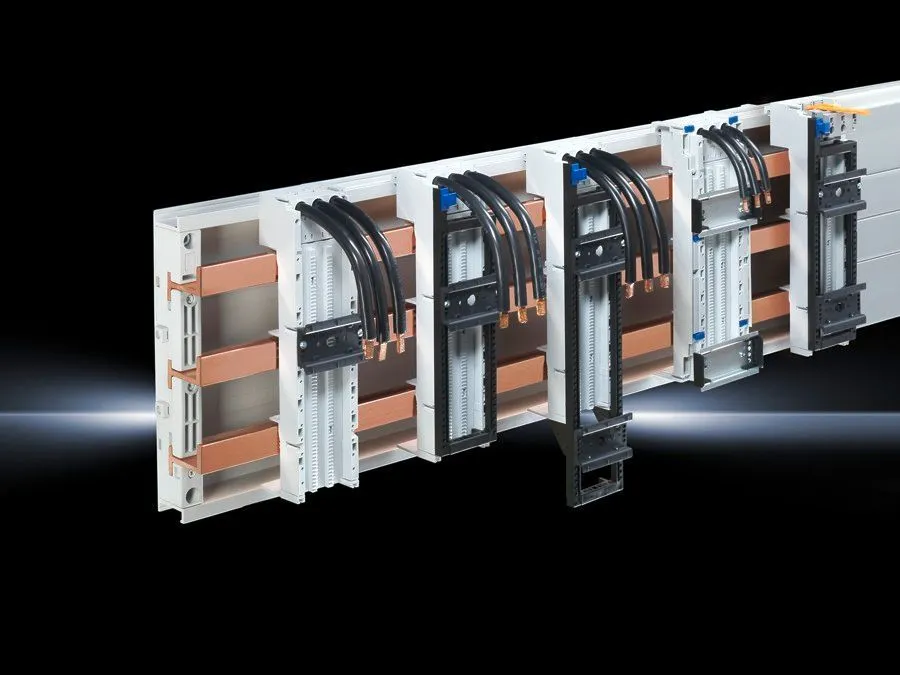

Rittal 9340720 SV OM adaptor - UL 30 kA SCCR
Part Number: 9340720
Manufacturer
Rittal
Part number
9340720
Category
Alt Part Number
SV 9340.720
Quick Summary
Rittal SV 9340.720 SV OM adaptor provides a robust 3-pole interface for 40 A, 690 V distribution in control enclosures. Engineers often struggle with safe, compact integration of busbars and cabling in tight panels, risking miswiring and downtime. This adaptor uses fire-retardant Polyamide (UL94‑V0), supports UL SCCR up to 30 kA, and is designed for TS 55D rail systems, ensuring compliant, scalable installations. Its modular frame and integrated support rail enable reliable mounting with 60 mm busbar center spacing, while the 130 mm connection cable simplifies routing and testing. Overall, you gain faster assembly, reduced wiring errors, and consistent panel performance aligned with industry standards.
Product Information
Extended Description
9340720 Rittal: SV OM adaptor, 40 A, 690 V, 3-pole, connection cable AWG 8, WH: 55x208 mm, support frame, support rail TS 55D
Article number
SV 9340.720
Material
Polyamide | Fire protection corresponding to UL 94-V0
Colour
Chassis: RAL 7035
Connection cables (AWG)
AWG 8
Rated current max.
40 A
Rated operating voltage
690 V, 3~
Electrical ratings UL (SCCR)
30 kA - 600 V, Fuse Class K5 max. 60 A, JDDZ/7
For bar systems with centre-to-centre spacing
60 mm
Length of connection cable
130 mm
Support rail type
TS 55D
Note
The technical data may vary for UL applications
Number of poles
3-pole
Dimensions
Width: 55 mm | Height: 208 mm
Support rails Qty/height
1 / 10 mm
To fit busbars
Height: 5, 10 mm
Support frame (W x H)
55 mm x 170 mm
Packs of
1 pc(s).
Weight/pack
0.36 kg
Copper weight (kg per piece)
0.088
Customs tariff number
85369095
EAN
4028177664241
ETIM 9
EC001531
ECLASS 8.0
27370304
Product description
SV OM adaptor, 40 A, 690 V, 3-pole, connection cable AWG 8, WH: 55x208 mm, support frame, support rail TS 55D
Feature: 3-pole adaptor rated for 40 A and 690 V. Business Impact: Enables safe, scalable three-phase power distribution within compact enclosures. Application: Ideal for modular panel builds using TS 55D rails. The result is improved reliability and faster commissioning. Feature: Connection cable length of 130 mm with AWG 8 conductors. Business Impact: Simplifies internal wiring routing and testing, reducing installation time and error potential. Application: Controls and distribution blocks in control cabinets benefit from cleaner cable runs. Feature: Fire-retardant Polyamide with UL94 V‑0 rating. Business Impact: Enhances safety compliance and reduces risk in flame exposure scenarios. Application: Widely used in electrical enclosures subject to strict material standards. Feature: Support frame 55 mm x 170 mm and TS 55D rail compatibility. Business Impact: Fast, tool-free mounting on standard rails with predictable alignment. Application: Seamless integration into Rittal enclosure ecosystems. Feature: Center-to-center busbar spacing 60 mm and busbar height compatibility 5–10 mm. Business Impact: Ensures flexible busbar fitting and reliable electrical contact; minimizes rework. Application: Modular power distribution across multiple slots. Feature: UL SCCR 30 kA rating and 600 V (UL) specification. Business Impact: Strong short-circuit current rating improves panel safety margins and regulatory compliance. Application: Suitable for higher-energy industrial cabinets and switchgear assemblies. Feature: Material and weight details—0.36 kg per pack, copper weight 0.088 kg per piece. Business Impact: Aids in logistics planning and thermal considerations, supporting cost-efficient packaging and transport. Application: High-volume panel builds where weight and copper usage matter.
Get a Quick Quote for a Rittal 9340720
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Rittal 9340720?
Enquire Now
FAQs
The SV OM adaptor is designed for TS 55D rail systems in Rittal enclosures and panels, offering a 3-pole, 40 A, 690 V distribution interface. Its 55x208 mm chassis and 60 mm busbar spacing ensure straightforward integration with common modular power distributions, reducing assembly steps and aligning with standard enclosure layouts.
Key specs include 3-pole operation, rated current up to 40 A, rated operating voltage 690 V AC (3-phase), and a 130 mm connection cable using AWG 8 conductors. It also features UL SCCR protection up to 30 kA, supporting safe operation in higher-short-circuit environments within standard enclosures.
Yes. The adaptor is specifically designed for TS 55D rails and supports busbars with 5–10 mm height and 60 mm center-to-center spacing. Its frame dimensions (55 mm wide, 208 mm high) and 55x170 mm support frame further simplify mounting alongside existing busbar configurations in modular panels.
The adaptor uses fire-retardant polyamide with UL94‑V0 rating and carries UL SCCR protection up to 30 kA at 600 V. Material and construction choices support compliance in controlled cabinet environments, with a note that UL data can vary for different applications, so verify in specific regional deployments.
The adaptor reduces wiring complexity, speeds up assembly, and minimizes miswiring risks, contributing to lower labor costs and faster commissioning. Its robust UL-rated components and modular frame also support long service life with straightforward replacement parts, translating into reduced maintenance downtime and improved overall panel reliability.
