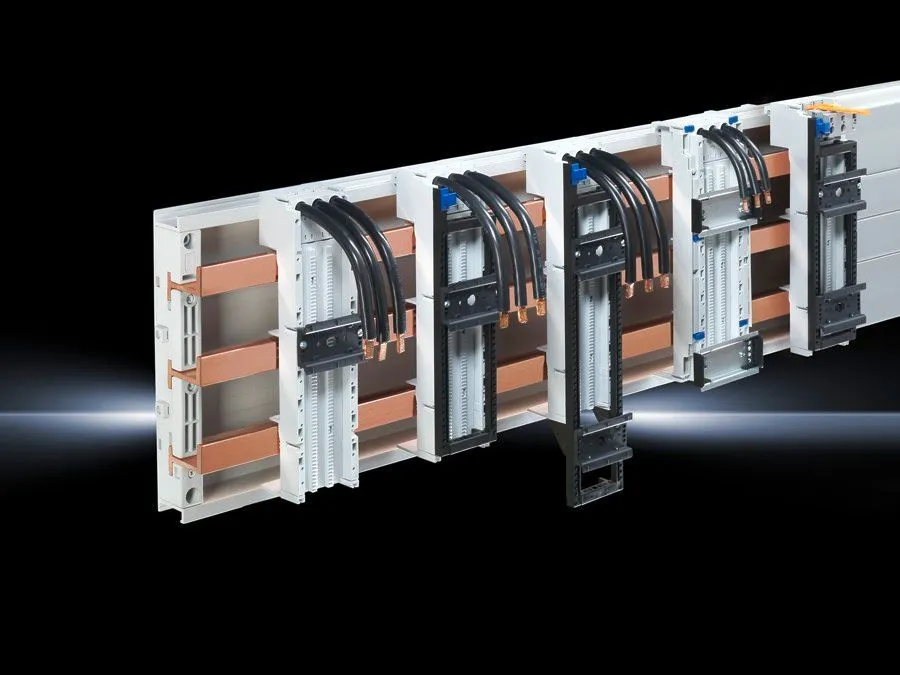

Rittal SV 9340.730 SV OM adaptor - 30 kA SCCR
Part Number: 9340730
Manufacturer
Rittal
Part number
9340730
Category
Alt Part Number
SV 9340.730
Quick Summary
Rittal SV 9340.730 SV OM adaptor provides a robust 40 A, 690 V connection solution for modular power distribution in electrical enclosures. Engineers often struggle with space constraints, cable routing, and ensuring UL SCCR compliance in tight panel layouts. This adaptor leverages UL 94‑V0 flame‑retardant polyamide housing, a 30 kA SCCR rating at 600 V, and TS 55D rail compatibility to meet demanding standards. By offering a compact 55 x 272 mm footprint, 130 mm cable length, and an AWG 8 conductor, it supports safer, faster installations and lower lifecycle costs—ideal for industrial automation and control panels.
Product Information
Extended Description
9340730 Rittal: SV OM adaptor, 40 A, 690 V, 3-pole, connection cable AWG 8, WH: 55x272 mm, support frame, support rail TS 55D, TS 55-V
Article number
SV 9340.730
Material
Polyamide | Fire protection corresponding to UL 94-V0
Colour
Chassis: RAL 7035
Connection cables (AWG)
AWG 8
Rated current max.
40 A
Rated operating voltage
690 V, 3~
Electrical ratings UL (SCCR)
30 kA - 600 V, Fuse Class K5 max. 60 A, JDDZ/7
For bar systems with centre-to-centre spacing
60 mm
Length of connection cable
130 mm
Support rail type
TS 55D
Note
The technical data may vary for UL applications
Number of poles
3-pole
Support frame support
Yes
Dimensions
Width: 55 mm | Height: 272 mm
Support rails Qty/height
2 / 10 mm
To fit busbars
Height: 5, 10 mm
Support frame (W x H)
55 mm x 237 mm
Packs of
1 pc(s).
Weight/pack
0.38 kg
Copper weight (kg per piece)
0.088
Customs tariff number
85369095
EAN
4028177664258
ETIM 9
EC001531
ECLASS 8.0
27370304
Product description
SV OM adaptor, 40 A, 690 V, 3-pole, connection cable AWG 8, WH: 55x272 mm, support frame, support rail TS 55D, TS 55-V
Feature: 40 A current rating with 690 V operating voltage and 3-pole configuration, plus a 130 mm connection cable using AWG 8 conductors. Business Impact: Enables reliable high‑current distribution within compact enclosures, reducing the number of intermediary taps and simplifying wiring. Application: Suitable for TS 55D rail systems in power management and distribution cabinets. The design improves installation speed and minimizes miswiring in automation panels. Feature: 30 kA UL SCCR at 600 V with Fuse Class K5 max. 60 A support. Business Impact: Increases short‑circuit withstand and protects critical automation equipment, lowering downstream fault risk. Application: Essential for compliant power distribution blocks in industrial control panels. Feature: UL‑94‑V0 flame‑retardant polyamide housing. Business Impact: Enhances safety and fire performance in enclosure interiors, reducing risk of propagation in fault events. Application: Fits environments with strict material safety requirements. Feature: TS 55D rail compatibility and precise mounting footprint (55 mm width, 272 mm height). Business Impact: Streamlines integration with standard rail infrastructure, enabling rapid deployment across multiple enclosures. Application: Ideal for modular builds and scalable automation architectures. Feature: Dimensions and mounting specifics (55 mm x 237 mm frame, 2 x 10 mm rails, 60 mm center spacing). Business Impact: Improves alignment with busbars and harnesses, reducing assembly time and measurement errors. Application: Useful in busbar distribution schemes with fixed spacing. Feature: Pack configuration and weight (1 pc, 0.38 kg per pack; copper weight 0.088 kg per piece). Business Impact: Simplifies inventory planning and supports lightweight, cost‑efficient panel builds. Application: Relevant to OEMs and system integrators prioritizing cost control and ease of handling. Feature: Additional notes (UL data may vary for UL applications). Business Impact: Encourages validation against local UL requirements to maintain compliance. Application: Critical when sourcing across global manufacturing sites.
Get a Quick Quote for a Rittal 9340730
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Rittal 9340730?
Enquire Now
FAQs
Install the adaptor onto a TS 55D rail, align it with 60 mm center‑to‑center busbar spacing, connect the AWG 8 cable (130 mm length) to the live terminals, and secure the housing using the provided support frame. The compact 55 mm x 272 mm footprint helps you maintain tidy, high‑quality wiring within the enclosure.
The adaptor is rated for 40 A and 690 V, 3‑pole operation. This makes it suitable for high‑current busbar connections in power distribution applications while maintaining compliance with category UL SCCR requirements at up to 600 V.
Yes. The product supports 60 mm center‑to‑center spacing and a 3‑pole configuration, making it ideal for standard busbar layouts used in many Rittal enclosures and modular automation cabinets.
The housing uses UL 94‑V0 flame‑retardant polyamide, and the adaptor offers UL SCCR protection up to 30 kA at 600 V with Fuse Class K5 compatibility up to 60 A. Note that UL data may vary by application, so verify locally for your certification requirements.
The adaptor’s TS 55D compatibility, compact footprint, and 130 mm cable length streamline wiring, reduce assembly time, and improve serviceability in automation cabinets. With a lightweight 0.38 kg per pack and predictable copper weight, it supports efficient inventory planning and lower total cost of ownership.
