Rittal SV 9340.740 SV OM adaptor - UL SCCR 30 kA
Part Number: 9340740
Manufacturer
Rittal
Part number
9340740
Category
Alt Part Number
SV 9340.740
Quick Summary

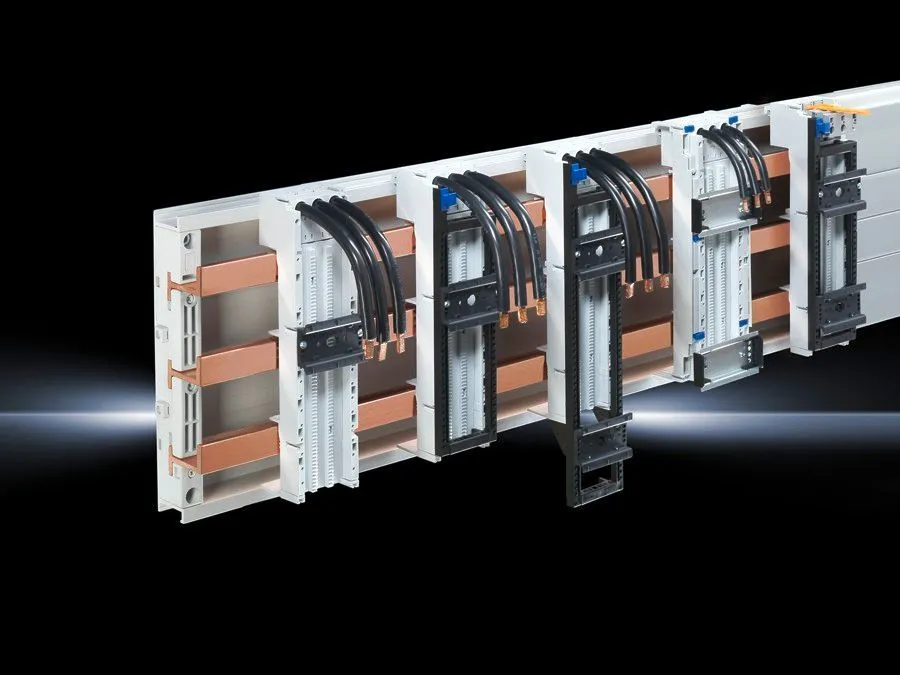

Rittal SV 9340.740 SV OM adaptor enables safe 40 A, 690 V connections inside industrial control cabinets. Layout and wiring can be challenging during cabinet expansions, with space constraints and busbar alignment hampering speed. Key certifications such as UL SCCR 30 kA and UL 94-V0 fire rating help ensure ongoing compliance and safety. With compact dimensions and TS 55D compatibility, it supports scalable power distribution while reducing footprint and installation costs. Designed for 60 mm busbar centers and connection cables up to 130 mm, the adaptor speeds commissioning and improves maintenance. Overall, it blends rugged enclosure hardware with precise electrical performance for modern control cabinets.
Product Information
Extended Description
9340740 Rittal: SV OM adaptor, 40 A, 690 V, 3-pole, connection cable AWG 8, WH: 55x208 mm, support rail 2xTS 55D
Article number
SV 9340.740
Material
Polyamide | Fire protection corresponding to UL 94-V0
Colour
Chassis: RAL 7035
Connection cables (AWG)
AWG 8
Rated current max.
40 A
Rated operating voltage
690 V, 3~
Electrical ratings UL (SCCR)
30 kA - 600 V, Fuse Class K5 max. 60 A, JDDZ/7
For bar systems with centre-to-centre spacing
60 mm
Length of connection cable
130 mm
Support rail type
TS 55D
Note
The technical data may vary for UL applications
Number of poles
3-pole
Dimensions
Width: 55 mm | Height: 208 mm
Support rails Qty/height
2 / 10 mm
To fit busbars
Height: 5, 10 mm
Packs of
1 pc(s).
Weight/pack
0.744 kg
Copper weight (kg per piece)
0.088
Customs tariff number
85369095
EAN
4028177673847
ETIM 9
EC001531
ECLASS 8.0
27370304
Product description
SV OM adaptor, 40 A, 690 V, 3-pole, connection cable AWG 8, WH: 55x208 mm, support rail 2xTS 55D
Feature: The SV OM adaptor delivers 40 A at 690 V across a 3-pole connection with AWG 8 cable. Business impact: This robust current rating and conductor size reduce the need for parallel feeders, lowering wiring complexity and improving voltage stability in dense panels. Application: Ideal for industrial automation cabinets in packaging, material handling, and machine automation where reliable power delivery is critical. Feature: Compatible with TS 55D support rails and designed for 60 mm center-to-center busbar spacing. Business impact: Promotes fast, repeatable mounting with predictable alignment, cutting field installation time and traceability of wiring paths. Application: Useful during cabinet expansions and modular builds where future reconfiguration is expected. Feature: 55x208 mm WH dimensions and 130 mm connection cable length enable flexible routing within enclosure depths. Business impact: Improves cable management and reduces crowded backplanes, facilitating serviceability and heat dissipation. Application: Suitable for compact control panels and distributed I/O systems where space is at a premium. Feature: Material is polyamide with fire protection rated to UL 94-V0; rated SCCR up to 30 kA at 600 V. Business impact: Supports safety compliance and fault-current resilience, lowering the risk of catastrophic failures during faults and short circuits. Application: Critical for UL-listed assemblies and environments with stringent safety requirements. Feature: Clear documentation and alignment with ETIM EC001531 and ECLASS 27370304 classifications. Business impact: Improves procurement workflows, reduces sourcing uncertainty, and accelerates job quotes. Application: Integrates smoothly with ERP and purchasing systems for standardized parts lists.
Get a Quick Quote for a Rittal 9340740
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Rittal 9340740?
Enquire Now
FAQs
To install, mount the adaptor onto a TS 55D rail with proper alignment, ensure the centre-to-centre spacing is respected at 60 mm, connect the AWG 8 cables to the appropriate busbar terminals, and tighten mounting screws to specification. Verify cable routing is clear of heat sources and ensure the 130 mm cable length allows tidy, serviceable wiring.
The adaptor is rated for 40 A and 690 V across a 3-pole configuration. It supports UL short-circuit current ratings up to 30 kA (600 V). Note that UL data may vary by application and installation context, so confirm ratings against your UL-listed system requirements.
Yes. The SV 9340.740 is designed for 60 mm center-to-center busbar spacing and fits busbars with a height range of 5 to 10 mm. This compatibility simplifies alignment in modular rack systems and reduces mounting adjustments during panel assembly.
Key certifications include UL SCCR of up to 30 kA and UL 94-V0 flame rating for the polyamide housing, supporting fire safety and fault-current resilience in UL environments. While CE specifics aren’t listed here, the UL-based ratings typically underpin compliance discussions and procurement checks in UL-listed control cabinets.
The adaptor accelerates commissioning with faster mounting, reduces wiring complexity thanks to the AWG 8 connection and 130 mm lead, and minimizes rework from misalignment. Its UL-rated safety profile and standardized classifications (ETIM/ECLASS) streamline sourcing, helping procurement teams quote and deploy panels faster while maintaining regulatory compliance.
