Rittal SV 9340.750 SV OM Adaptor - 30 kA SCCR
Part Number: 9340750
Manufacturer
Rittal
Part number
9340750
Category
Alt Part Number
SV 9340.750
Quick Summary

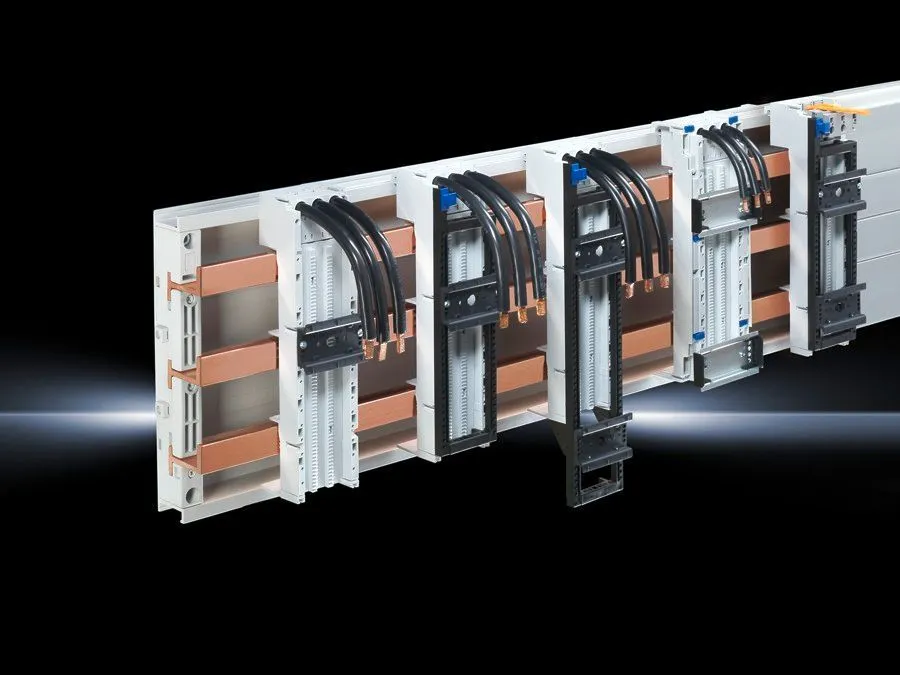

The SV OM adaptor provides 3-pole connections for 40 A, 690 V systems in panel and busbar setups. In tight enclosures, wiring access and mounting alignment can slow projects and drive up costs. This adaptor delivers UL SCCR up to 30 kA at 600 V and uses fire-rated polyamide (UL 94‑V0) with a sturdy metal support rail. Designed for 60 mm busbar spacing and AWG 8 cables, it speeds installation and reduces space conflicts while maintaining compliance. The result is a safe, scalable solution for evolving control panels and switchgear, enabling faster procurement and more reliable terminations in industrial environments.
Product Information
Extended Description
9340750 Rittal: SV OM adaptor, 40 A, 690 V, 3-pole, connection cable AWG 8, WH: 55x208 mm, metal support rail
Article number
SV 9340.750
Material
Polyamide | Fire protection corresponding to UL 94-V0
Colour
Chassis: RAL 7035
Connection cables (AWG)
AWG 8
Rated current max.
40 A
Rated operating voltage
690 V, 3~
Electrical ratings UL (SCCR)
30 kA - 600 V, Fuse Class K5 max. 60 A, JDDZ/7
For bar systems with centre-to-centre spacing
60 mm
Length of connection cable
130 mm
Support rail type
Metal
Note
The technical data may vary for UL applications
Number of poles
3-pole
Dimensions
Width: 55 mm | Height: 208 mm
Support rails Qty/height
1 / 15 mm
To fit busbars
Height: 5, 10 mm
Packs of
1 pc(s).
Weight/pack
0.379 kg
Copper weight (kg per piece)
0.088
Customs tariff number
85369095
EAN
4028177673854
ETIM 9
EC001531
ECLASS 8.0
27370304
Product description
SV OM adaptor, 40 A, 690 V, 3-pole, connection cable AWG 8, WH: 55x208 mm, metal support rail
High current and voltage rating deliver robust performance for demanding loads; 40 A, 690 V, 3-pole configuration reduces the need for parallel terminations and lowers heat-generation in power distribution. This translates to improved efficiency and reliability in panel and busbar assemblies, particularly in machine controls and process equipment. The 130 mm AWG 8 connection cable simplifies routing and termination, enabling cleaner wiring in compact enclosures and reducing installation time. A fire-rated polyamide housing (UL 94‑V0) enhances safety and regulatory compliance, decreasing risk in hazardous environments and easing audit requirements. The metal support rail provides durable mechanical support and repeatable alignment, while 60 mm busbar spacing compatibility accelerates site planning and reduces field adjustments. Short-circuit protection is reinforced by UL SCCR 30 kA at 600 V and Fuse Class K5 up to 60 A, streamlining safety documentation and compliance. Compact dimensions (55 mm x 208 mm) and defined rail heights (1/15 mm) optimize enclosure footprint and design consistency across multiple panels and switchgear.
Get a Quick Quote for a Rittal 9340750
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Rittal 9340750?
Enquire Now
FAQs
Mount the adaptor onto a metal support rail, align it with the 60 mm busbar spacing, and connect the AWG 8 cables to the 3-pole terminals. The unit is designed for easy insertion alongside standard 55x208 mm enclosures and requires no special adapters, reducing field setup time and potential misalignment.
The adaptor supports up to 40 A, at 690 V (3~), with UL SCCR rated at 30 kA and 600 V. It uses fire-rated polyamide material (UL 94‑V0) and includes fuse class K5 compatibility up to 60 A, providing strong short-circuit protection and compliance documentation for power distribution rail applications.
Yes. The SV OM adaptor is specifically designed for panel and busbar assemblies, featuring a metal mounting rail and precise dimensions (55 mm width, 208 mm height) that fit standard Rittal enclosures. It supports 60 mm center-to-center busbar spacing and accommodates AWG 8 conductors for reliable terminations in industrial controls.
The adaptor uses UL 94‑V0 fire-rated polyamide and is specified with UL SCCR ratings up to 30 kA at 600 V. Note that the US UL applications may vary by variant, so verify the data for your UL path. Material and electrical ratings are chosen to maximize safety and compliance in power distribution enclosures.
The 130 mm AWG 8 connection and standardized 60 mm busbar spacing reduce routing complexity and rework, accelerating commissioning. The rigid metal rail, compact footprint, and robust UL/SCCR ratings minimize safety checks and maintenance costs, delivering faster project turnover and lower total cost of ownership for control panels and switchgear networks.
