Rittal 9340770 SV OM adaptor - UL SCCR 30 kA
Part Number: 9340770
Manufacturer
Rittal
Part number
9340770
Category
Alt Part Number
SV 9340.770
Quick Summary
SV OM adaptor provides a compact 3-pole power connection for 690 V control panels. Engineers often struggle with secure cable routing and safe busbar mounting in tight enclosures. Notable certifications and ratings support safe operation: UL SCCR 30 kA at 600 V, and a UL 94‑V0 flame‑retardant polyamide construction. To maximize uptime and compliance, this adaptor also supports TS 45D rails, 60 mm busbar spacing, and a robust PinBlock. Together with its 165 mm connection cable and 45x272 mm form factor, it offers installation efficiency and predictable maintenance for cabinet builders and system integrators.
Product Information
Extended Description

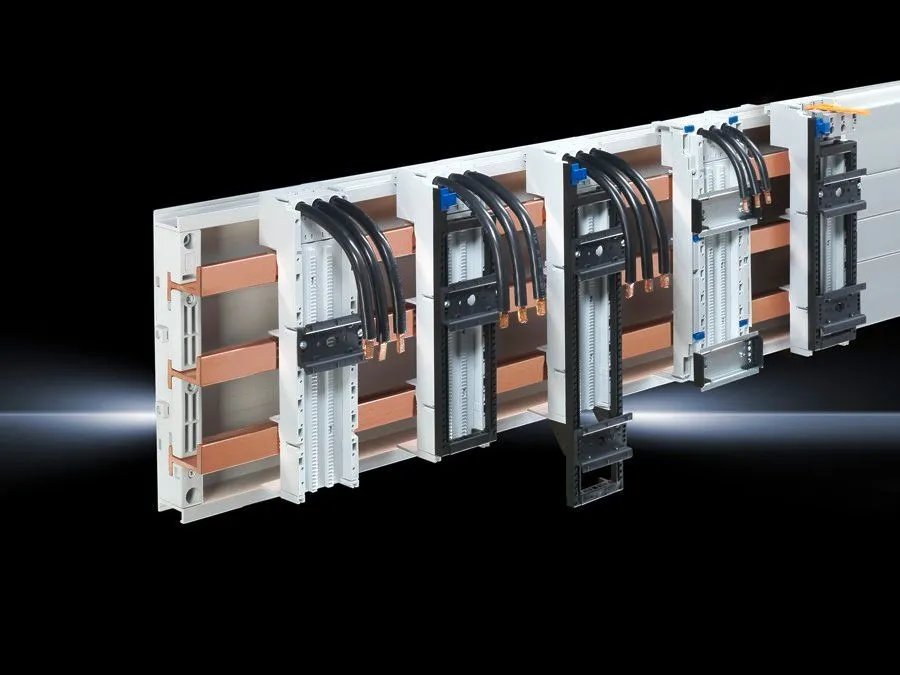

9340770 Rittal: SV OM adaptor, 32 A, 690 V, 3-pole, connection cable AWG 10, WH: 45x272 mm, support frame, PinBlock, support rail TS 45D
Article number
SV 9340.770
Material
Polyamide | Fire protection corresponding to UL 94-V0
Colour
Chassis: RAL 7035
Connection cables (AWG)
AWG 10
Rated current max.
32 A
Rated operating voltage
690 V, 3~
Electrical ratings UL (SCCR)
30 kA - 600 V, Fuse Class K5 max. 60 A, JDDZ/7
For bar systems with centre-to-centre spacing
60 mm
Length of connection cable
165 mm
Support rail type
TS 45D
Note
The technical data may vary for UL applications
Number of poles
3-pole
PinBlock
Yes
Support frame support
Yes
Dimensions
Width: 45 mm | Height: 272 mm
Support rails Qty/height
1 / 10 mm
To fit busbars
Height: 5, 10 mm
Support frame (W x H)
45 mm x 237 mm
Packs of
1 pc(s).
Weight/pack
0.317 kg
Copper weight (kg per piece)
0.077
Customs tariff number
85369095
EAN
4028177684560
ETIM 9
EC001531
ECLASS 8.0
27370304
Product description
SV OM adaptor, 32 A, 690 V, 3-pole, connection cable AWG 10, WH: 45x272 mm, support frame, PinBlock, support rail TS 45D
3-pole, 32 A rating with a 690 V operating voltage ensures reliable 3-pole distribution in industrial panels. This configuration reduces wiring complexity and improves fault tolerance, while its layout aligns with standard 60 mm centre-to-centre busbar spacing for quick integration into existing enclosures. The UL SCCR of 30 kA at 600 V and Fuse Class K5 compatibility deliver robust short-circuit protection, minimizing risk of equipment damage and downtime in harsh industrial environments. The UL 94‑V0 flame-retardant polyamide construction enhances safety in cabinets subject to strict fire-safety requirements, supporting regulatory compliance in many regions. With 165 mm connection cable length (AWG 10), PinBlock, and a dedicated support frame for TS 45D rails, installation is straightforward and repeatable, reducing commissioning time and human error. Dimensions of 45 mm x 272 mm and a pack weight of 0.317 kg enable compact, predictable logistics and scalable panel builds. The adaptor’s design also supports flexible busbar integration, height options for busbar 5 or 10 mm, and compatibility with standard Rittal enclosure systems, making it a reliable choice for modular power management and distribution in automation networks.
