Rittal 9340780 SV OM adaptor - UL SCCR 30 kA, 16 A
Part Number: 9340780
Manufacturer
Rittal
Part number
9340780
Category
Alt Part Number
SV 9340.780
Quick Summary
Rittal 9340780 SV OM adaptor is a compact power connection module that enables safe, reliable 3-pole wiring for control panels and busbar systems. Engineers often struggle with crowded enclosures and inconsistent wiring layouts, which slow installation and raise risk. This adaptor is built with UL SCCR 30 kA at 600 V and a UL 94-V0 rated polyamide housing to improve safety and compliance. The combination of 60 mm busbar spacing, TS 45D rail compatibility, and a 165 mm connection cable supports scalable panel layouts while reducing installation time and rework. For project teams seeking predictable performance and lower total cost of ownership, it aligns with standard modular power distribution practices and supports efficient maintenance.
Product Information
Extended Description

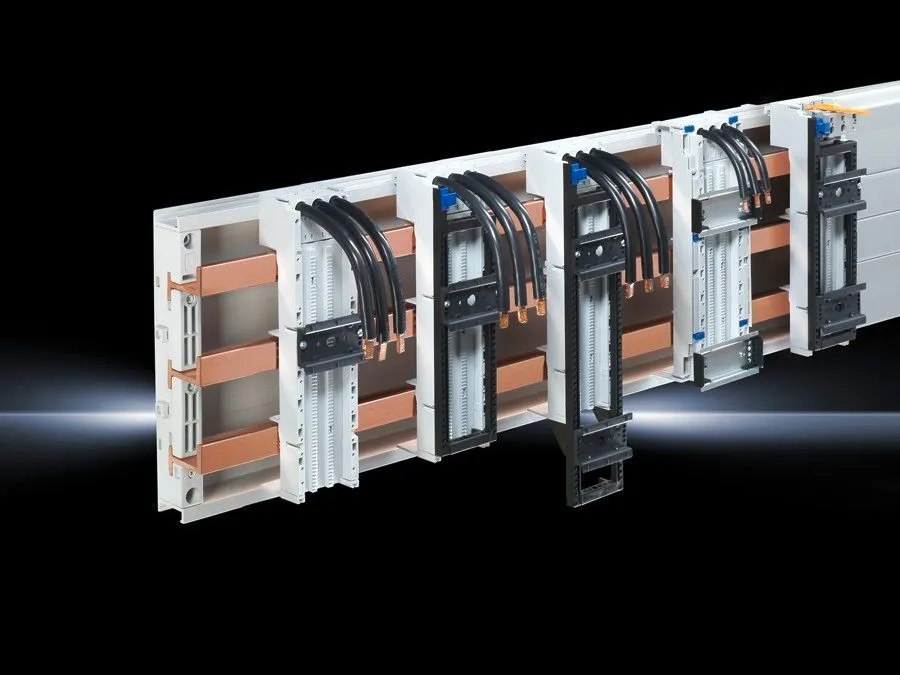

9340780 Rittal: SV OM adaptor, 16 A, 690 V, 3-pole, connection cable AWG 12, WH: 45x208 mm, support frame, support rail TS 45D, TS 45D-V
Article number
SV 9340.780
Material
Polyamide | Fire protection corresponding to UL 94-V0
Colour
Chassis: RAL 7035
Connection cables (AWG)
AWG 12
Rated current max.
16 A
Rated operating voltage
690 V, 3~
Electrical ratings UL (SCCR)
30 kA - 600 V, Fuse Class K5 max. 60 A, JDDZ/7
For bar systems with centre-to-centre spacing
60 mm
Length of connection cable
165 mm
Support rail type
TS 45D
Note
The technical data may vary for UL applications
Number of poles
3-pole
Dimensions
Width: 45 mm | Height: 208 mm
Support rails Qty/height
2 / 10 mm
To fit busbars
Height: 5, 10 mm
Support frame (W x H)
45 mm x 170 mm
Packs of
1 pc(s).
Weight/pack
0.3 kg
Copper weight (kg per piece)
0.038
Customs tariff number
85369095
EAN
4028177701410
ETIM 9
EC001531
ECLASS 8.0
27370304
Product description
SV OM adaptor, 16 A, 690 V, 3-pole, connection cable AWG 12, WH: 45x208 mm, support frame, support rail TS 45D, TS 45D-V
Feature → Business Impact → Application: The SV OM adaptor delivers 3-pole, 16 A performance at 690 V with an AWG 12 connection cable for clean, compact power distribution in control panels. This enables safer, faster wiring and reduces cabling error rates, improving overall system reliability in manufacturing and process environments. Application: Ideal for TS 45D rail installations in switchgear enclosures where 60 mm busbar spacing is required to fit existing infrastructure and meet center-to-center specifications. Feature → Business Impact → Application: The PA housing with UL 94-V0 fire protection ensures compliant, flame-retardant operation in confined spaces, supporting safety certifications and reducing risk during audits. Application: Suitable for high-occupancy control cabinets where space optimization and compliance are critical. Feature → Business Impact → Application: The adaptor’s 45 mm x 170 mm support frame and 2 x 10 mm rail height accommodate precise mounting on TS 45D rails, enabling quick replacement and standardized maintenance. Application: Replacement in mature installations where module interchangeability saves downtime. Feature → Business Impact → Application: With a length of 165 mm for the connection cable and a 0.3 kg per-pack weight, installation remains manageable on crowded panels, aiding field technicians in assembly and service tasks. Application: Field deployment across distributed control systems and panel refurbishments. Feature → Business Impact → Application: UL SCCR 30 kA at 600 V and 3-pole design support robust fault tolerance in power distribution, reducing risk of cascading failures in critical processes. Application: Industrial automation environments requiring high fault current capability. Feature → Business Impact → Application: The product supports centre-to-centre 60 mm busbar systems and TS 45D compatibility, enabling seamless integration with existing modular busbar networks. Application: Retrofit projects and new builds following standard Rittal mounting conventions. Long-tail keywords addressed include Rittal SV OM adaptor, TS 45D rail compatibility, 60 mm busbar spacing, AWG 12 cables, UL SCCR, UL 94-V0 housing, 3-pole 690 V wiring, control panel wiring efficiency, and modular power distribution.
Get a Quick Quote for a Rittal 9340780
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Rittal 9340780?
Enquire Now
FAQs
The SV OM adaptor is designed for TS 45D rails and supports a center-to-center spacing of 60 mm, with two rails at 10 mm height. It accepts a 3-pole configuration and uses AWG 12 cables, making it straightforward to mount in standard control panel enclosures. This compatibility minimizes custom mounting work and speeds up commissioning.
Key specs include 16 A maximum current, 690 V rated operating voltage, and a 3-pole configuration. The connection cable is AWG 12 with a 165 mm cable length. The unit carries UL SCCR 30 kA at 600 V and uses UL 94-V0 fire-protected polyamide housing, supporting safe, compliant panel wiring.
Yes. The adaptor is designed for busbar systems with 60 mm center-to-center spacing and TS 45D rails, facilitating clean connections in control panels. Its 3-pole design and compact footprint enable efficient power distribution in crowded enclosures, reducing wire routing complexity and improving maintainability in automation cabinets.
Critical certifications include UL SCCR 30 kA at 600 V, which indicates high fault current rating for power distribution, and UL 94-V0 fire protection for the PA housing. These certifications support safety compliance in industrial environments and help satisfy regulatory requirements during audits and certifications.
The adaptor reduces wiring complexity, speeds installation, and lowers downtime during panel updates due to its standardized TS 45D mounting, 60 mm busbar spacing, and 165 mm connection cable. Its robust UL-rated current capability and flame-retardant housing also minimize risk and rework, contributing to higher uptime and lower total cost of ownership over the system life cycle.
