Rittal SV 9340.820 Pre-assembled cables - AWG 10
Part Number: 9340820
Manufacturer
Rittal
Part number
9340820
Category
Alt Part Number
SV 9340.820
Quick Summary
Rittal SV 9340.820 pre-assembled cables enable reliable two-unit connections in switchgear assemblies. Engineers often struggle with cluttered wiring, inconsistent terminations, and lengthy on-site wiring in compact control cabinets. While the data lists ETIM EC000839 and ECLASS 27400613 classifications to aid procurement, it does not specify CE, SIL, or IP certifications. The combo of PVC insulation, 105 °C rating, and ultrasonic wire-end compression delivers durable interconnects that reduce maintenance costs and speed up project delivery in power management and distribution environments. This solution also supports streamlined BOMs and predictable lead times for industrial automation projects.
Product Information
Extended Description

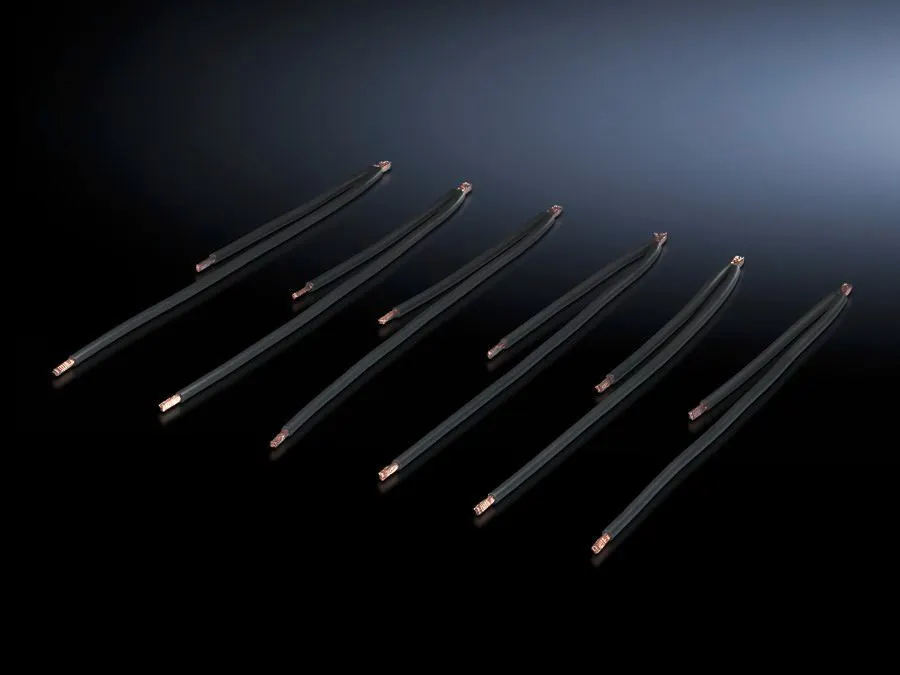

9340820 Rittal: SV Twin cord, AWG 10, L1: 140 mm, L2: 250 mm
Article number
SV 9340.820
Product description
Pre-assembled connection cables for individual connection of up to two switchgear units per adaptor.
Material
PVC insulation | Temperature resistant to 105 °C | Wire ends with ultrasonic wire-end compression at both ends
AWG
AWG|10 = 5.26|mm² ≙ 6|mm²
Length
140 mm | 250 mm
Note
AWG = American Wire Gauge
Dimensions
Length: 140 mm, 250 mm
Packs of
6 pc(s).
Weight/pack
0.15 kg
Copper weight (kg per piece)
0.013
Customs tariff number
74198090
EAN
4028177583573
ETIM 9
EC000839
ECLASS 8.0
27400613
Product description
SV Twin cord, AWG 10, L1: 140 mm, L2: 250 mm
Feature: Pre-assembled connection cables for individual connection of up to two switchgear units per adaptor. Business Impact: Reduces on-site assembly time and minimizes wiring errors, improving panel wiring reliability. Application: Ideal for modular switchgear racks in manufacturing facilities and utility installations. Feature: AWG 10 conductor with L1 140 mm and L2 250 mm lengths. Business Impact: Provides a robust current path while keeping cabling length manageable within tight enclosures. Application: Interconnects between follower units in compact distribution cabinets. Feature: PVC insulation with temperature resistance up to 105 °C and ultrasonic wire-end compression at both ends. Business Impact: Enhances insulation durability under thermal stress and delivers repeatable, high-integrity terminations. Application: Power distribution and control cabinet environments subject to elevated ambient temperatures. Feature: Packs of 6 pieces with a weight per pack of 0.15 kg and copper weight of 0.013 kg per piece. Business Impact: Simplifies procurement planning, spare-part stocking, and logistics for field service teams. Application: Maintenance operations in facilities with standardized cable sets. Feature: Clear product description and compatibility notes for up to two switchgear units per adaptor. Business Impact: Reduces mismatch risk and accelerates installation workflows through standardized, repeatable assemblies. Application: Global projects requiring consistent interconnects across multiple chassis.
Get a Quick Quote for a Rittal 9340820
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Rittal 9340820?
Enquire Now
FAQs
SV 9340.820 is designed for interconnecting up to two switchgear units per adaptor, with AWG 10 conductors in two fixed lengths (140 mm and 250 mm). This combination ensures reliable physical and electrical fit within typical Rittal enclosures, reducing the likelihood of mis-mated harnesses and speeding up installation across modular assemblies.
Main specs include AWG 10 conductors (approximately 6 mm²), lengths of 140 mm and 250 mm, PVC insulation, insulation rated up to 105 °C, and ultrasonic wire-end compression at both ends. Each pack contains 6 pieces, with a per-piece copper weight of 0.013 kg, and a pack weight of 0.15 kg, making stocking straightforward.
Yes, suitability derives from AWG 10 conductors designed to carry current appropriate for switchgear interconnections within its typical applications. The ultrasound-terminated ends and PVC insulation support reliable electrical contact and insulation performance, while the fixed lengths help maintain organized, repeatable harnessing in crowded control cabinets.
The dataset lists ETIM 9 EC000839 and ECLASS 8.0 27400613 classifications for standardized product data and procurement. Specific CE, SIL, or IP ratings are not provided in the data. Users should verify statutory and project-specific certifications during procurement, while leveraging the established classifications for compatibility checks.
The ROI stems from reduced on-site wiring time, lower risk of assembly errors, and standardized spares. With pre-assembled cables, technicians can shorten panel wiring tasks, improve consistency across assemblies, and simplify stocking with packs of 6. Over time, this leads to faster commissioning and lower field service costs.
