Rittal SV 9340.870 Cable Set - AWG 10 EC000839
Part Number: 9340870
Manufacturer
Rittal
Part number
9340870
Category
Alt Part Number
SV 9340.870
Quick Summary
Rittal SV 9340.870 Cable Set is a pre-assembled connection solution for switchgear wiring. By delivering ready-to-install cables, it reduces field assembly time and minimizes miswirings in panel builds. The design aligns with ETIM EC000839 and ECLASS 27062302 standards, promoting interoperability and accurate procurement. For OEMs and system integrators, it delivers reliable, scalable OM adaptor wiring in tight spaces, accelerating commissioning and improving installation quality. Wire-end preparation uses ultrasonic compression, ensuring durable terminations even in high-temperature environments. The solution supports maintenance programs by reducing spare parts and simplifying rework in the field. Its compact form and standardized connections help ensure consistent panel fabrication across multiple projects.
Product Information
Extended Description

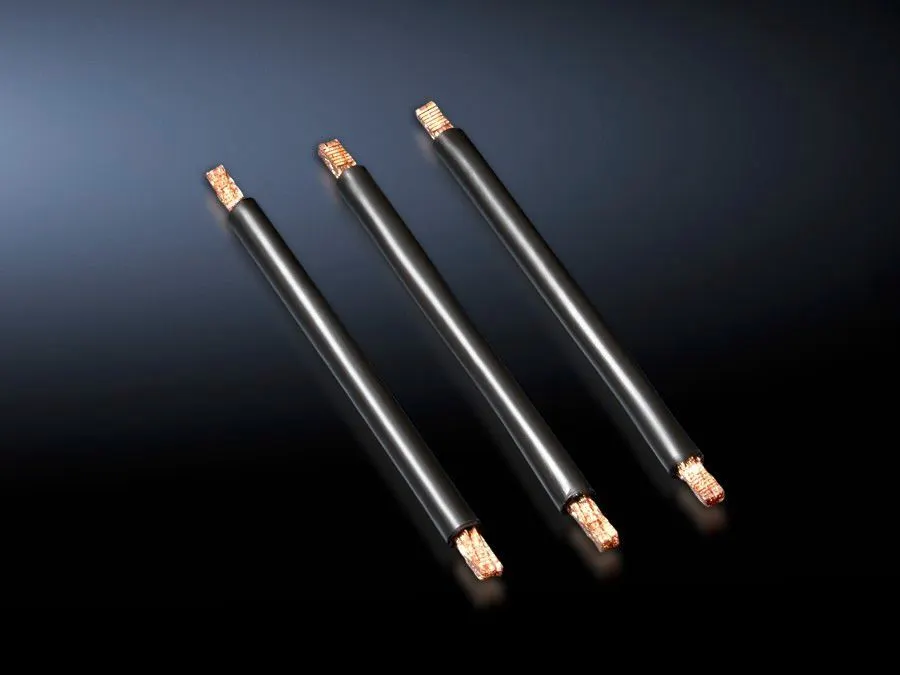

9340870 Rittal: SV Cable set, AWG 10, L: 140 mm
Article number
SV 9340.870
Product description
Pre-assembled connection cables for individual connection of switchgear, top-mounted on OM adaptors with tension spring clamps.
Material
PVC insulation | Temperature resistant to 105 °C | Wire ends with ultrasonic wire-end compression at both ends
AWG
AWG|10 = 5.26|mm² ≙ 6|mm²
Length
140 mm
Note
AWG = American Wire Gauge
Dimensions
Length: 140 mm
Packs of
15 pc(s).
Weight/pack
0.135 kg
Copper weight (kg per piece)
0.006
Customs tariff number
85444290
EAN
4028177502727
ETIM 9
EC000839
ECLASS 8.0
27062302
Product description
SV Cable set, AWG 10, L: 140 mm
Feature: Pre-assembled cables for direct switchgear connections. Business Impact: Significantly reduces on-site wiring time and lowers the chance of human error during panel assembly. Application: Ideal for top-mounted OM adaptors with tension spring clamps in machine enclosures.Feature: AWG 10 conductors with 140 mm length. Business Impact: Provides predictable current-carrying capacity and consistent termination geometry, improving reliability across assemblies. Application: Suitable for cross-panel linkages in control panels and executive cabinets.Feature: PVC insulation rated to 105 °C with ultrasonic wire-end compression. Business Impact: Enhances thermal resilience and termination durability in dynamic environments, reducing maintenance cycles. Application: Industrial environments with elevated ambient temperatures and frequent re-wiring.Feature: Copper weight 0.006 kg per piece; packs of 15. Business Impact: Simplifies BOM planning and logistics, enabling accurate cost forecasting and inventory control. Application: Large-scale panel installations where repeatable components are required.Feature: OM adaptor compatibility with tension spring clamps. Business Impact: Ensures secure, vibration-resistant connections, minimizing re-tightening and contact resistance over time. Application: Panel builds requiring reliable clamp-based wiring in constrained spaces.Feature: ETIM EC000839 and ECLASS 27062302 aligned. Business Impact: Improves catalog interoperability, procurement accuracy, and cross-system data integrity. Application: Digital purchasing workflows and ERP integrations for panel manufacturers.
Get a Quick Quote for a Rittal 9340870
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Rittal 9340870?
Enquire Now
FAQs
SV 9340.870 cables are designed for use with OM adaptors featuring tension spring clamps and top-mounted connections. The cables are AWG 10 with a 140 mm length, making them suitable for pre-assembled connections in switchgear panels. This compatibility reduces field modification needs and supports rapid commissioning in control cabinets.
The cables use AWG 10 conductors (≈5.26 mm², ≈6 mm²), with a fixed length of 140 mm. They feature PVC insulation rated up to 105 °C, and wire-ends are ultrasonically compressed at both ends, enhancing termination durability. Copper weight per piece is about 0.006 kg, and packaging is 15 pieces per pack, aiding accurate quantity planning.
Yes. The SV 9340.870 cable set is specifically intended for top-mounted OM adaptor connections with tension spring clamps, providing reliable, compact wiring solutions in control panels. Its 140 mm length and AWG 10 size are aligned with common switchgear terminations, supporting consistent installation across multiple panels.
The SV 9340.870 cable set aligns with ETIM 9 EC000839 and ECLASS 8.0 27062302 classifications, aiding procurement data accuracy and system interoperability. It carries EAN 4028177502727 for traceability within global catalogs, supporting standardized data exchange across supplier portals and ERP systems.
The pre-assembled design reduces field wiring time and labor costs, minimizes miswiring risk, and lowers rework rates. Its durable ultrasonic terminations and high-temperature insulation improve long-term reliability, reducing spare parts consumption and maintenance intervals in high-demand environments, which translates to faster project completion and a lower total cost of ownership.
