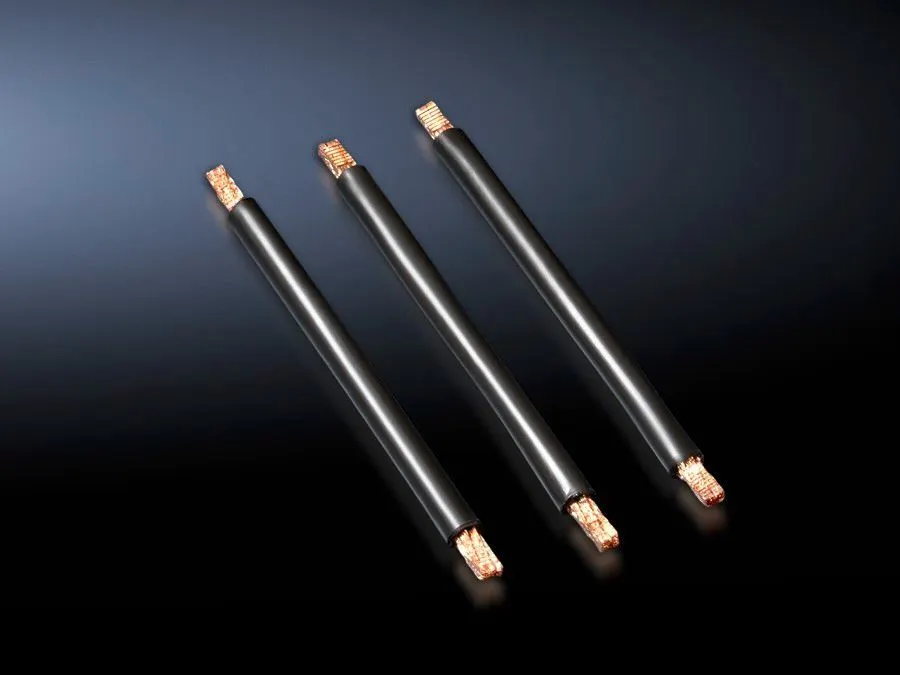

Rittal 9340880 SV Cable Set - AWG 8, 140 mm
Part Number: 9340880
Manufacturer
Rittal
Part number
9340880
Category
Alt Part Number
SV 9340.880
Quick Summary
SV Cable set from Rittal is a pre-assembled connection cable for individual switchgear wiring. Field engineers often struggle with unreliable terminations and long wiring times in modular panels. The provided data does not specify SIL, CE, or IP certifications; confirm compliance with your project requirements. With PVC insulation rated to 105 C and ultrasonic wire-end compression at both ends, the cables offer durable, consistent terminations. Top-mounted on OM adaptors with tension spring clamps enables repeatable installations and reduces risk of loose connections. Compatibility with standardized classifications supports efficient BOM planning and supplier collaboration, delivering lower total cost of ownership.
Product Information
Extended Description
9340880 Rittal: SV Cable set, AWG 8, L: 140 mm
Article number
SV 9340.880
Product description
Pre-assembled connection cables for individual connection of switchgear, top-mounted on OM adaptors with tension spring clamps.
Material
PVC insulation | Temperature resistant to 105 °C | Wire ends with ultrasonic wire-end compression at both ends
AWG
AWG|8 = 8.37|mm² ≙ 10|mm²
Length
140 mm
Note
AWG = American Wire Gauge
Dimensions
Length: 140 mm
Packs of
6 pc(s).
Weight/pack
0.09 kg
Copper weight (kg per piece)
0.009
Customs tariff number
85444290
EAN
4028177502734
ETIM 9
EC000839
ECLASS 8.0
27062302
Product description
SV Cable set, AWG 8, L: 140 mm
Feature: Pre-assembled AWG 8 cables, 140 mm length. Business impact: Significantly reduces field wiring time and human error during assembly, improving project timelines and reliability. Application: Ideal for switchgear wiring in control panels and modular assemblies. Feature: PVC insulation with 105 C temperature resistance. Business impact: Enhances insulation durability in harsh industrial environments, lowering failure rates and maintenance costs. Application: Panels in temperature-variable environments where cable insulation integrity is critical. Feature: Ultrasonic wire-end compression at both ends. Business impact: Delivers repeatable, high-quality terminations that resist vibration and loosening. Application: OM adapters with tension spring clamps in closed-switchgear configurations. Feature: Packs of 6 cables; copper weight 0.009 kg per piece. Business impact: Optimizes inventory management and BOM planning, enabling more predictable procurement costs. Application: Project-wide spares and service kits for large installations. Feature: ETIM EC000839 and ECLASS 27062302 alignment. Business impact: Facilitates seamless integration with ERP and purchasing workflows. Application: Data-driven sourcing and catalog alignment across engineering teams.
Get a Quick Quote for a Rittal 9340880
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Rittal 9340880?
Enquire Now
FAQs
To install, align the cable ends with the OM adaptor sockets, mount the cables top-side as designed, and engage the tension spring clamps to secure the connection. The ends use ultrasonic wire-end compression for a consistent termination, and the 140 mm length ensures proper reach without excess slack. Confirm that all clamps are fully seated before powering up the panel.
The set uses AWG 8 conductors with a cross-section roughly equivalent to 8.37 mm², with a 140 mm length per piece. It features PVC insulation rated up to 105 C, ultrasonic wire-end compression at both ends, and a copper weight of 0.009 kg per piece. Each pack contains 6 pieces, aiding bulk provisioning while maintaining consistent performance.
Yes. The cables are designed for top-mounted OM adaptors with tension spring clamps used in Rittal switchgear assemblies. The 105 C PVC insulation supports typical industrial temperatures, and the ultrasonic terminations provide reliable connections in vibration-prone environments common to control panels.
The provided data does not list SIL, CE, or IP certifications for SV 9340.880. For regulatory compliance, verify with the supplier documentation or request the current certification package from Rittal to confirm applicable safety and performance standards for your region and application.
Pre-assembled cables reduce field wiring time and installation errors, speeding commissioning and lowering labor costs. Consistent terminations minimize rework due to loose connections. In BOM planning, predictable copper weight per piece and pack sizing simplify inventory management, contributing to lower total cost of ownership over the equipment’s life cycle.
