Rittal SV 9340.890 Cable Set - AWG 6, 140 mm
Part Number: 9340890
Manufacturer
Rittal
Part number
9340890
Category
Alt Part Number
SV 9340.890
Quick Summary
Rittal SV 9340.890 cable set provides pre-assembled connections for switchgear in control panels. Engineers often contend with wiring errors, inconsistent crimps, and lengthy on-site cabling tasks. This solution aligns with ETIM EC000839 and ECLASS 27062302 standards, enabling reliable procurement and cross-system compatibility. It delivers faster assembly and reduced miswiring risk, with durable PVC insulation and a 105 °C temperature rating for demanding control-panel environments.
Product Information
Extended Description

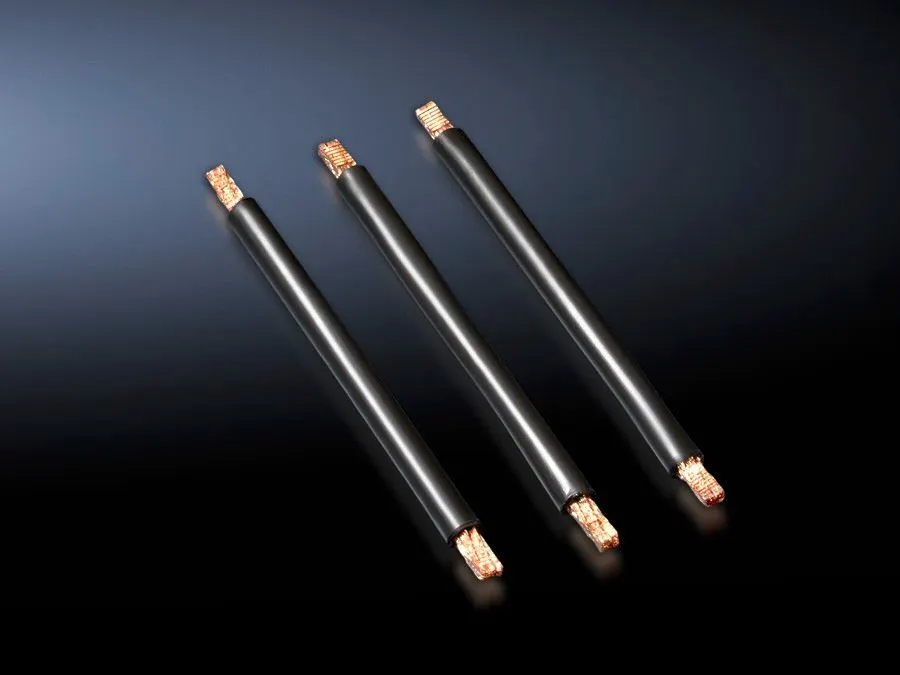

9340890 Rittal: SV Cable set, AWG 6, L: 140 mm
Article number
SV 9340.890
Product description
Pre-assembled connection cables for individual connection of switchgear, top-mounted on OM adaptors with tension spring clamps.
Material
PVC insulation | Temperature resistant to 105 °C | Wire ends with ultrasonic wire-end compression at both ends
AWG
AWG|6 = 13.3|mm² ≙ 16|mm²
Length
140 mm
Note
AWG = American Wire Gauge
Dimensions
Length: 140 mm
Packs of
6 pc(s).
Weight/pack
0.126 kg
Copper weight (kg per piece)
0.014
Customs tariff number
85444290
EAN
4028177502741
ETIM 9
EC000839
ECLASS 8.0
27062302
Product description
SV Cable set, AWG 6, L: 140 mm
Feature: Pre-assembled connection cables for switchgear. Business Impact: Significantly reduces installation time and labor costs, while lowering the risk of field wiring errors. Application: Ideal for control panels and equipment racks where quick, repeatable wiring is critical to uptime. Long-tail keywords: pre-assembled cables for switchgear, control panel wiring, switchgear wiring harnesses. Feature: AWG 6 conductor with 140 mm length. Business Impact: Standardized conductor size and length improve consistency across assemblies, minimizing trimming and rework. Application: OM adaptor connections with tension spring clamps in modular switchgear layouts. Long-tail keywords: AWG 6 cables, 140 mm cables, standard conductor length. Feature: PVC insulation with 105 °C rating. Business Impact: Enhances reliability in high-temperature environments, reducing insulation degradation and maintenance cycles. Application: Enclosures and switchgear exposed to hotter ambient conditions. Long-tail keywords: PVC insulation, 105 °C insulation, temperature-rated wiring. Feature: Ultrasonic wire-end compression on both ends. Business Impact: Delivers robust, flare-free terminations with consistent copper geometry, lowering crimp failures. Application: All solid connections in OM adaptor setups. Long-tail keywords: ultrasonic wire-end compression, robust crimps, reliable terminations. Feature: Top-mounted on OM adaptors with tension spring clamps. Business Impact: Simplifies alignment and mounting, speeds assembly, and improves mechanical stability. Application: Wiring within Rittal enclosure systems and modular switchgear. Long-tail keywords: OM adaptor compatibility, tension spring clamps, top-mounted cables. Feature: Packs of 6 units with 0.126 kg per pack. Business Impact: Facilitates bulk procurement and reduces stocking complexity, lowering per-unit costs. Application: Inventory management for panel builders and integrators. Long-tail keywords: packs of 6, weight per pack, procurement efficiency.
Get a Quick Quote for a Rittal 9340890
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Rittal 9340890?
Enquire Now
FAQs
SV 9340.890 is designed for use with OM adaptors and tension spring clamps, featuring ultrasonic wire-end compression and PVC insulation rated to 105 °C. When planning installation, ensure proper OM adaptor compatibility, verify pack quantity (six per pack), and confirm the 140 mm length matches your switchgear layout to minimize trimming and handling time.
The data sheet lists ETIM 9 EC000839 and ECLASS 27062302 standards, which support cross-system compatibility. It does not explicitly state CE or UL certification. For regulatory compliance, verify with your project’s regulatory team or supplier, and ensure the specific enclosure and end-use environment meet all applicable CE/UL requirements in your region.
AWG 6 conductors provide a balanced current-carrying capacity for many switchgear applications, while a fixed 140 mm length reduces on-site trimming and variability. This combination improves repeatability, reduces termination errors, and aligns with standard enclosure layouts, supporting predictable electrical performance within control panels.
Pre-assembled cables eliminate many field wiring steps, while ultrasonic terminations and tension spring clamps ensure robust connections. The result is faster panel assembly, lower risk of loose crimps, and easier future maintenance due to standardized conductor length and end configurations, reducing downtime during upgrades or expansions.
Each pack contains six cables with a total pack weight of 0.126 kg, copper weight per piece 0.014 kg, and PVC insulation rated to 105 °C. The product uses AWG 6 conductors, length 140 mm, and is labeled with customs tariff number 85444290 and EAN 4028177502741, aiding accurate import and inventory management.
