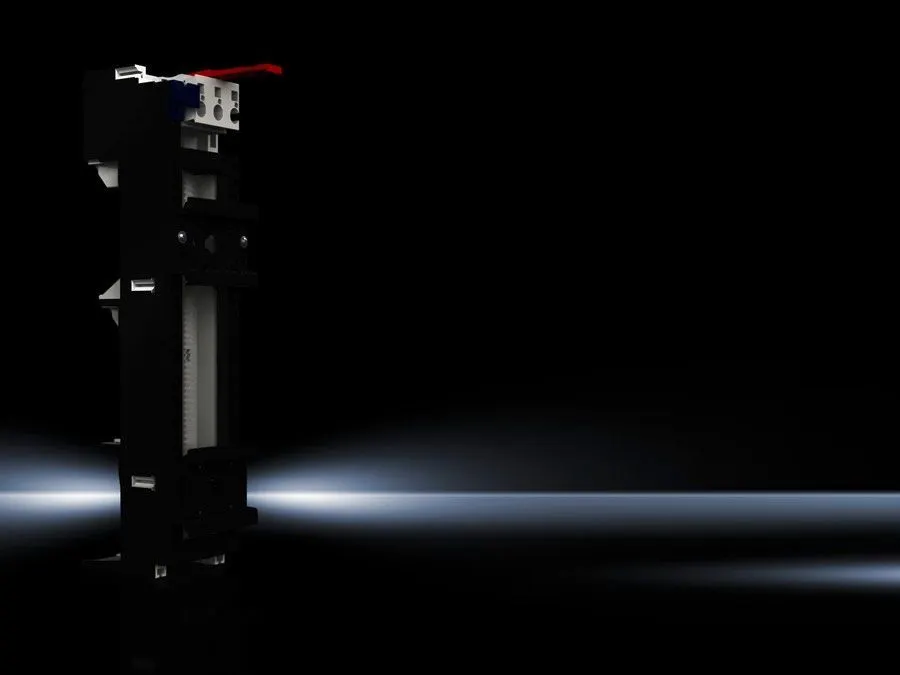

Rittal SV 9340.910 SV OM adaptor - UL 94-V0
Part Number: 9340910
Manufacturer
Rittal
Part number
9340910
Category
Alt Part Number
SV 9340.910
Quick Summary
Rittal SV 9340.910 SV OM adaptor provides a 3-pole, 690 V power outlet for panel-mounted distribution. Engineers often contend with wiring complexity and unreliable plug-in connections in compact switchgear, which this adaptor helps simplify. It leverages UL 94-V0 fire-rating material and is designed for TS 45D rail mounting, with a 25 A capacity and 690 V operation. This combination supports fast installation, safe cable outlets, and modular integration into cabinets, aligning with standard TS 45D rail practices and 60 mm centre-to-centre spacing for scalable panel builds.
Product Information
Extended Description
9340910 Rittal: SV OM adaptor, 25 A, 690 V, 3-pole, with plug-in cable outlet, WH: 45x208 mm, support frame, support rail TS 45D, TS 45D-V
Article number
SV 9340.910
Material
Polyamide | Fire protection corresponding to UL 94-V0
Colour
Chassis: RAL 7035
Supply includes
Connector with connection facility for 3 main contacts (1.5 – 4 mm²)
Rated current max.
25 A
Rated operating voltage
690 V, 3~
For bar systems with centre-to-centre spacing
60 mm
Support rail type
TS 45D
Number of poles
3-pole
Connector outlet
Connector with connection facility for 3 main contacts (1.5 – 4 mm²)
Dimensions
Width: 45 mm | Height: 208 mm
Connection for round conductor
1.5 ‐ 4 mm²
Support rails Qty/height
2 / 10 mm
To fit busbars
Height: 5, 10 mm
Support frame (W x H)
45 mm x 170 mm
Packs of
1 pc(s).
Weight/pack
0.2 kg
Copper weight (kg per piece)
0.025
Customs tariff number
85369095
EAN
4028177555464
ETIM 9
EC001531
ETIM 8
EC001531
ECLASS 8.0
27370304
Product description
SV OM adaptor, 25 A, 690 V, 3-pole, with plug-in cable outlet, WH: 45x208 mm, support frame, support rail TS 45D, TS 45D-V
Feature: 3-pole, 25 A, 690 V power distribution with plug-in cable outlet → Business Impact → Application: Enables safe, high-current power delivery in machine controls, reducing wiring complexity and the risk of mis-mating connectors in panel installations. This is ideal for modular control cabinets and switchgear assemblies in industrial automation. Feature: TS 45D rail mounting compatibility and 60 mm centre-to-centre spacing → Business Impact → Application: Simplifies mechanical mounting in standard rack systems, speeding cabinet assembly and ensuring consistent spacing for busbars and conductors in control panels. Feature: Polyamide body with UL 94-V0 fire protection → Business Impact → Application: Improves global safety compliance and thermal performance in harsh factory environments while maintaining compact form factors. Feature: Connector with connection facility for 3 main contacts (1.5–4 mm²) → Business Impact → Application: Reduces termination errors and enables reliable field wiring in limited spaces, supporting quick replacement and service. Feature: Compact footprint (45 mm W x 208 mm H) and TS 45D frame with 5/10 mm busbar compatibility → Business Impact → Application: Fits narrow enclosures and supports flexible busbar integration, maximizing cabinet real estate and enabling scalable layouts.
Get a Quick Quote for a Rittal 9340910
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Rittal 9340910?
Enquire Now
FAQs
Yes. The adaptor is designed for TS 45D rail mounting and is compatible with standard TS 45D support rails. It measures 45 mm in width and 208 mm in height, with a 60 mm centre-to-centre spacing for busbar alignment. The included support frame is 45 mm x 170 mm, enabling secure, repeatable installation in panel cabinets.
The SV 9340.910 is a 3-pole adaptor rated for 25 A and 690 V (AC). It provides a plug-in cable outlet with a connection facility for 3 main contacts suitable for 1.5–4 mm² conductors, ensuring robust terminations and safe operation in industrial environments.
Yes. Its 25 A, 690 V rating, 3-pole configuration, and TS 45D mounting make it ideal for panel-mounted control cabinets and modular switchgear. The 60 mm rail spacing and plug-in cable outlet streamline installation and maintenance, reducing wiring complexity and improving containment within compact control panels.
The adaptor employs polyamide with fire protection rated UL 94-V0, supporting safer operation in industrial settings. This material choice helps meet common internal safety standards while delivering reliable mechanical performance within the TS 45D rail system and 60 mm busbar spacing.
The plug-in cable outlet and TS 45D rail compatibility simplify wiring and mounting, reducing installation time and likelihood of wiring errors. With a compact footprint and standardized components, service and replacements are faster, helping lower lifecycle costs and improve overall equipment availability in production environments.
