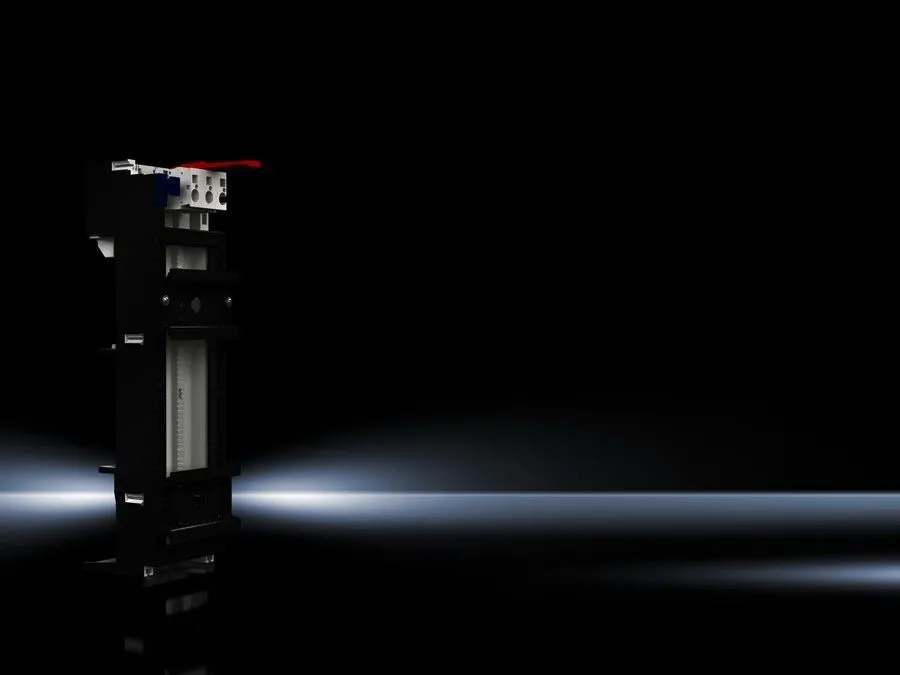

Rittal SV 9340.930 SV OM Adaptor - 690 V 3-pole UL 94-V0
Part Number: 9340930
Manufacturer
Rittal
Part number
9340930
Category
Alt Part Number
SV 9340.930
Quick Summary
Rittal SV 9340.930 SV OM adaptor delivers 25 A at 690 V for three‑phase panel distribution. Engineers often wrestle with bulky, hard-to-service plug‑in connections in tight control cabinets. This adaptor pairs UL 94‑V0 fire‑rated polyamide with TS 55D rail compatibility to support safe, standards‑maware installations. Its compact 55 mm × 208 mm footprint, plus a plug‑in cable outlet and integrated support frame, streamline assembly in existing enclosures. By reducing wiring complexity and installation time, it directly lowers commissioning costs while improving long‑term maintenance efficiency for power management in industrial automation.
Product Information
Extended Description
9340930 Rittal: SV OM adaptor, 25 A, 690 V, 3-pole, with plug-in cable outlet, WH: 55x208 mm, support frame, support rail TS 55D, TS 55D-V
Article number
SV 9340.930
Material
Polyamide | Fire protection corresponding to UL 94-V0
Colour
Chassis: RAL 7035
Supply includes
Connector with connection facility for 3 main contacts (1.5 – 4 mm²)
Rated current max.
25 A
Rated operating voltage
690 V, 3~
For bar systems with centre-to-centre spacing
60 mm
Support rail type
TS 55D
Number of poles
3-pole
Connector outlet
Connector with connection facility for 3 main contacts (1.5 – 4 mm²)
Dimensions
Width: 55 mm | Height: 208 mm
Connection for round conductor
1.5 ‐ 4 mm²
Support rails Qty/height
2 / 10 mm
To fit busbars
Height: 5, 10 mm
Support frame (W x H)
55 mm x 170 mm
Packs of
1 pc(s).
Weight/pack
0.32 kg
Copper weight (kg per piece)
0.025
Customs tariff number
85369095
EAN
4028177555471
ETIM 9
EC001531
ETIM 8
EC001531
ECLASS 8.0
27370304
Product description
SV OM adaptor, 25 A, 690 V, 3-pole, with plug-in cable outlet, WH: 55x208 mm, support frame, support rail TS 55D, TS 55D-V
Feature: 25 A, 690 V, 3-pole design is tailored for high‑load three‑phase panel distribution, providing reliable main contact performance. Business Impact: supports safe, scalable power management in control cabinets, enabling higher density of circuits without compromising safety. Application: ideal for machine builders and system integrators who require robust power interfaces in compact enclosures. Feature: plug‑in cable outlet and 3 main contact connectors (1.5–4 mm²) simplify wiring; Business Impact: reduces field assembly time and wiring errors, accelerating startup and commissioning. Application: common in DIN rail mounted power modules where fast replacement and serviceability matter. Feature: TS 55D rail compatibility with a TS 55D‑V variant ensures flexible mounting; Business Impact: standardizes installation workflows and inventory across multiple cabinets. Application: suitable for modular power distribution skids and enclosure upgrades. Feature: UL 94‑V0 flame‑rated polyamide and RAL 7035 chassis finish provide safety and visibility; Business Impact: enhances compliance posture and panel aesthetics while resisting heat in demanding environments. Application: critical in commercial and industrial environments requiring reliable material performance. Feature: compact dimensions, 55 × 208 mm, with 55 × 170 mm support frame; Business Impact: maximizes DIN rail real estate and simplifies retrofits; Application: advantageous during cabinet modernization projects where space is at a premium.
Get a Quick Quote for a Rittal 9340930
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Rittal 9340930?
Enquire Now
FAQs
Yes. The adaptor is designed for TS 55D mounting rails and includes a compatible support frame. Its 55 mm width and 208 mm height ensure a secure fit in standard control panels, with TS 55D‑V compatibility for extended rail options, simplifying both new installations and upgrades.
It is rated for 25 A at up to 690 V in a 3‑pole configuration. The unit provides a plug‑in cable outlet and accepts conductors from 1.5 to 4 mm², delivering reliable main contact connections for high‑power, three‑phase applications in industrial cabinets.
The adaptor occupies 55 mm in width and 208 mm in height, supported by a 55 × 170 mm frame. It accommodates 60 mm centre‑to‑centre busbar spacing and is designed for DIN rail installation, enabling compact yet robust integration in existing enclosures.
The housing uses UL 94‑V0 fire‑rated polyamide, enhancing flame retardancy for electrical assemblies. The product is built for up to 690 V operation in industrial settings and features a durable chassis finished in RAL 7035 for clear visibility and consistent panel presentation.
The plug‑in outlet design and integrated support frame reduce wiring errors and installation time, while the compact footprint frees DIN rail space for additional modules. This translates to faster commissioning, easier maintenance, and lower total cost of ownership across power management and distribution initiatives.
