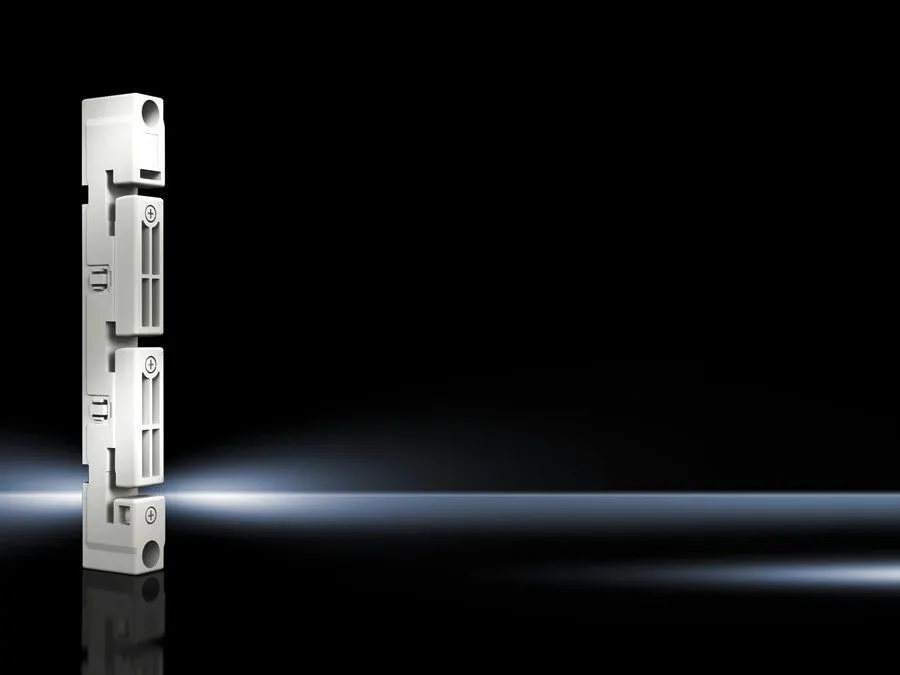

Rittal SV 9341.000 Busbar Support - Top Mount 1000V
Part Number: 9341000
Manufacturer
Rittal
Part number
9341000
Category
Alt Part Number
SV 9341.000
Quick Summary
Rittal SV 9341.000 busbar support provides secure top-mounted connections for 800 A to 1600 A PLS busbar systems in control cabinets. This accessory addresses common challenges like wiring clutter, misalignment, and insulation gaps by delivering precise 60 mm bar center spacing with an internal attachment for a neat, reliable installation. It leverages UL 94‑V0 fire-rated polyamide and supports a 1000 V operating voltage, aligning with ETIM EC001166 and ECLASS 27400607 classifications for interoperability. With easy integration into existing assemblies and compatibility with PLS 800 busbars, it delivers business value through safer installations, faster service, and scalable power distribution.
Product Information
Extended Description
9341000 Rittal: SV Busbar support, PLS 800, 3-pole, 60 mm bar centre distance
Article number
SV 9341.000
Material
Polyamide | Fire protection corresponding to UL 94-V0
Colour
RAL 7035
Rated operating voltage
1000 V, 3~
Top-mounting
Yes
Number of poles
3-pole
To fit busbars
PLS 800
Internal attachment
Yes
Centre-to-centre spacing of busbars
60 mm
Packs of
4 pc(s).
Weight/pack
0.364 kg
Customs tariff number
85469010
EAN
4028177502772
ETIM 9
EC001166
ECLASS 8.0
27400607
Product description
SV Busbar support, PLS 800, 3-pole, 60 mm bar centre distance
Feature → Business Impact → Application: The SV 9341.000 uses 60 mm centre-to-centre spacing and a 3-pole configuration that fits PLS 800 busbars, delivering stable, evenly distributed current paths and reducing the risk of misalignment in cabinet assemblies. This translates to improved reliability and measurable efficiency gains in high-density power racks. Application: control cabinets and distribution panels requiring precise busbar alignment and secure internal attachment.
Get a Quick Quote for a Rittal 9341000
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Rittal 9341000?
Enquire Now
FAQs
The SV 9341.000 is designed for top-mounting and accommodates 60 mm centre-to-centre spacing with 3-pole contacts. It includes internal attachment for secure mounting and is compatible with PLS 800 busbars, enabling a straightforward retrofit or new build in control cabinets with minimal wiring adjustments.
Key specs include a 60 mm centre spacing, 3-pole configuration, 1000 V rated operating voltage (3~), and UL 94-V0 fire protection in polyamide. These parameters support high-density, high-voltage distribution while maintaining insulation integrity, reducing thermal and safety risks in demanding industrial environments.
Yes. The 1000 V, 3-pole rating and 60 mm spacing are tailored for 1000 V three-phase busbar systems. Its top-mount design and internal attachment simplify installation and ensure reliable, safe operation in power distribution cabinets using PLS 800 busbars.
SV 9341.000 uses UL 94-V0 fire-rated polyamide, providing flame protection compliant with common safety standards. It also references ETIM EC001166 and ECLASS 27400607 classifications, supporting interoperability and procurement standardization in industrial environments.
The 4-pack configuration with a weight of 0.364 kg per pack, combined with secure internal attachment and top-mounting ease, reduces installation time and maintenance downtime. Its robust insulation and high-voltage rating support longer cabinet life, lower rework costs, and scalable deployments across multiple enclosures.
