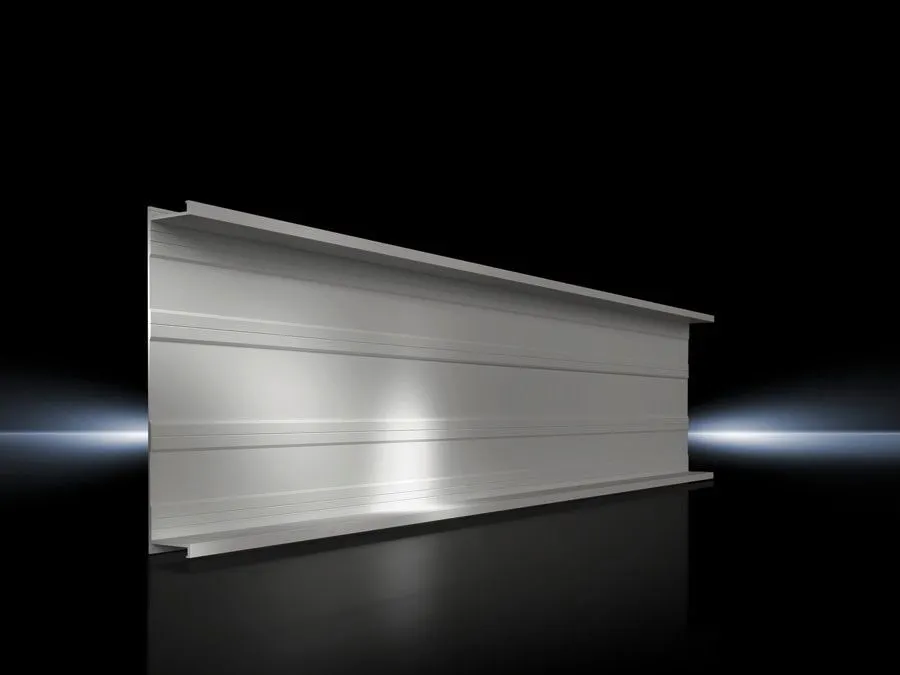

Rittal 9341100 SV Base Tray - 3-pole UL 94-V0 rated
Part Number: 9341100
Manufacturer
Rittal
Part number
9341100
Category
Alt Part Number
SV 9341.100
Quick Summary
Rittal 9341100 SV Base Tray provides rear contact hazard protection for busbar assemblies in switchgear cabinets. Engineers face challenges with safe access and dense layouts, and this tray helps reduce risk while simplifying maintenance. Key standards include UL 94-V0 fire protection, and the ETIM EC002270 and ECLASS 27409221 classifications support procurement and ERP data consistency. Designed for compatibility with PLS 800 3-pole systems and a 500 mm length, it enables efficient, compliant installations with predictable field performance. The neutral RAL 7035 color further aids visual organization and routine servicing in busy control environments.
Product Information
Extended Description
9341100 Rittal: SV Base tray, L: 500 mm (PLS 800)
Article number
SV 9341.100
Product description
For rear contact hazard protection of the busbar assembly.
Material
Thermally modified hard PVC. | Fire protection corresponding to UL 94-V0
Colour
RAL 7035
For number of poles
3
Length
500 mm
Note
May be cut individually to required length
To fit busbar system
PLS 800, 3-pole
Dimensions
Length: 500 mm
Packs of
2 pc(s).
Weight/pack
1.15 kg
Customs tariff number
85472000
EAN
4028177502796
ETIM 9
EC002270
ECLASS 8.0
27409221
Product description
SV Base tray, L: 500 mm (PLS 800)
Material and fire protection: Thermally modified hard PVC with UL 94-V0 rating provides a durable, fire-retardant enclosure component that supports safer, compliant installations and simpler audits in control cabinets. This translates to lower risk during maintenance and reduced rework.Compatibility and system integration: The SV Base Tray is designed to fit 3-pole busbar systems in PLS 800 installations, ensuring reliable mounting without custom adapters. Operators gain faster commissioning and fewer compatibility issues during panel upgrades or revisions.Length and configurability: At 500 mm with a note that it may be cut to required length, the base tray offers installation flexibility for non-standard rack depths and modular enclosures. This minimizes waste and streamlines project planning while preserving performance.Aesthetics and organization: The RAL 7035 color and clear labeling provide visual cues for wiring and component placement, supporting safer inspections and easier handovers between teams in commissioning and maintenance cycles.Packaging and handling: Sold in packs of two with a weight of 1.15 kg per pack, enabling efficient stocking, shipping, and inventory management for repeat projects or multi-cabinet deployments. This also reduces on-site handling time and risk of miscounts.Ease of installation: May be cut to length with standard tools, allowing technicians to tailor the tray to exact enclosure dimensions without specialized equipment, thereby reducing downtime and labor costs during installations.
Get a Quick Quote for a Rittal 9341100
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Rittal 9341100?
Enquire Now
FAQs
The SV 9341.100 Base Tray fits 3-pole busbar systems in PLS 800 configurations and uses a 500 mm length, making it ideal for standard switchgear enclosures and modular cabinets.
Install behind the busbar assembly in the enclosure, align with mounting points, and cut to length if needed using standard tools. It does not require special hardware, enabling quick and safe retrofits.
The tray is made from thermally modified hard PVC with UL 94-V0 fire protection, delivering a durable, fire-retardant barrier for rear contact hazard protection.
Each pack contains two trays with a total weight of 1.15 kg per pack, facilitating straightforward stocking and handling for multi-cabinet deployments.
Ideal for rear contact hazard protection in 3-pole busbar assemblies within switchgear and control cabinets, particularly when integrating with PLS 800 systems and when length customization is needed.
