Rittal SV 9341.110 Base Tray - 3-Pole Busbar, UL 94-V0
Part Number: 9341110
Manufacturer
Rittal
Part number
9341110
Category
Alt Part Number
SV 9341.110
Quick Summary
Rittal SV 9341.110 Base Tray provides rear contact hazard protection for busbar assemblies in industrial power distribution. In tight control panels and compact switchgear, unprotected conductors and awkward layouts can lead to safety issues, edge damage, and longer assembly times. The data specifies a UL 94-V0 fire rating and lists ETIM 9 EC002270 and ECLASS 8.0 27409221 to support global cataloging; no SIL, CE, or IP ratings are listed. With a 700 mm length in RAL 7035 and compatibility with the PLS 800 3-pole system, the base tray offers cut-to-length flexibility and predictable installation. Packaged as two units per pack, it helps streamline procurement and reduces waste during panel fabrication. This combination delivers safer panels and a scalable, industry-appropriate solution for industrial electrical enclosures.
Product Information
Extended Description

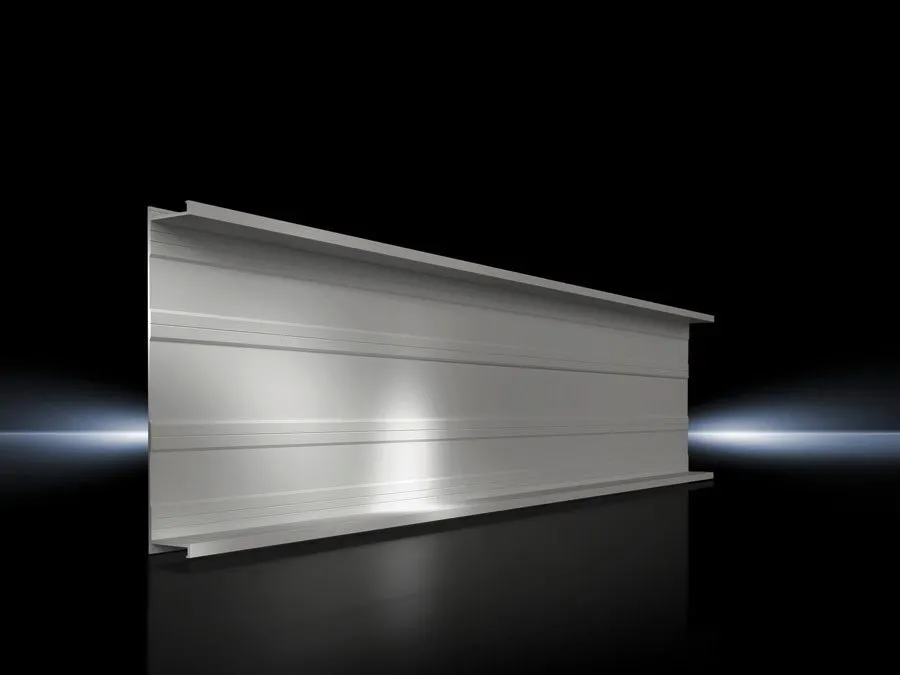

9341110 Rittal: SV Base tray, L: 700 mm (PLS 800)
Article number
SV 9341.110
Product description
For rear contact hazard protection of the busbar assembly.
Material
Thermally modified hard PVC. | Fire protection corresponding to UL 94-V0
Colour
RAL 7035
For number of poles
3
Length
700 mm
Note
May be cut individually to required length
To fit busbar system
PLS 800, 3-pole
Dimensions
Length: 700 mm
Packs of
2 pc(s).
Weight/pack
1.56 kg
Customs tariff number
85472000
EAN
4028177502802
ETIM 9
EC002270
ECLASS 8.0
27409221
Product description
SV Base tray, L: 700 mm (PLS 800)
Feature is rear contact hazard protection for busbar assemblies. Business impact is enhanced operator safety, reduced risk of accidental contact, and lower downtime due to safer layouts. Application centers on control panels and switchgear that house exposed busbar runs, with the 3-pole design ensuring coverage across all poles and simplifying mounting. The second feature is material and fire rating: thermally modified hard PVC with UL 94-V0 compliance, delivering improved flame retardancy and durability. This supports safer enclosures in harsh environments and aligns with standard electrical safety requirements, while enabling longer service life with minimal maintenance. The third feature is length flexibility: 700 mm base tray that may be cut to required length. This reduces waste, minimizes stock-keeping needs, and enables on-site customization for fit within tight panel depths, lowering total installation costs. The fourth feature focuses on compatibility and installation: designed to fit PLS 800, 3-pole busbar systems with color-coded RAL 7035 finish, and packaging in two-piece sets weighing 1.56 kg per pack. This promotes faster assembly, consistent aesthetics, and straightforward logistics. The fifth feature emphasizes documentation and cataloging: ETIM 9 EC002270 and ECLASS 8.0 27409221 support accurate part classification and procurement data, improving supply-chain reliability and reducing mis-picks in large warehouses.
Get a Quick Quote for a Rittal 9341110
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Rittal 9341110?
Enquire Now
FAQs
Yes. The SV 9341.110 is specified to fit the PLS 800, 3-pole busbar system, and the note indicates it may be cut to the required length. This allows panel engineers to tailor coverage exactly to the enclosure depth and pole arrangement, reducing waste and simplifying procurement.
The base tray is made from thermally modified hard PVC and carries a UL 94-V0 fire rating, indicating flame retardancy suitable for electrical enclosures. This combination enhances safety by limiting flame spread and improving durability in harsh environments, which is critical for control panels and switchgear.
This base tray excels in industrial control panels and switchgear where rear contact protection around busbars is required. Installers should account for the 700 mm length, 3-pole fit, and the option to cut length to match the enclosure depth. The RAL 7035 finish also supports consistent visual coding across cabinets.
The product data lists ETIM 9 EC002270 and ECLASS 8.0 27409221, which assist with cataloging and supplier selection. A UL 94-V0 fire rating is specified, but there is no explicit SIL, CE, or IP rating listed in the provided data. This helps buyers verify safety requirements while aligning with internal data standards.
By using a 700 mm, cut-to-length base tray in a two-pack, you reduce stocking complexity and waste. The material’s fire rating supports compliance while minimizing risk of rework due to safety concerns. The 3-pole compatibility with PLS 800 accelerates assembly and reduces downtime, contributing to faster ROI in mass-panel production.
