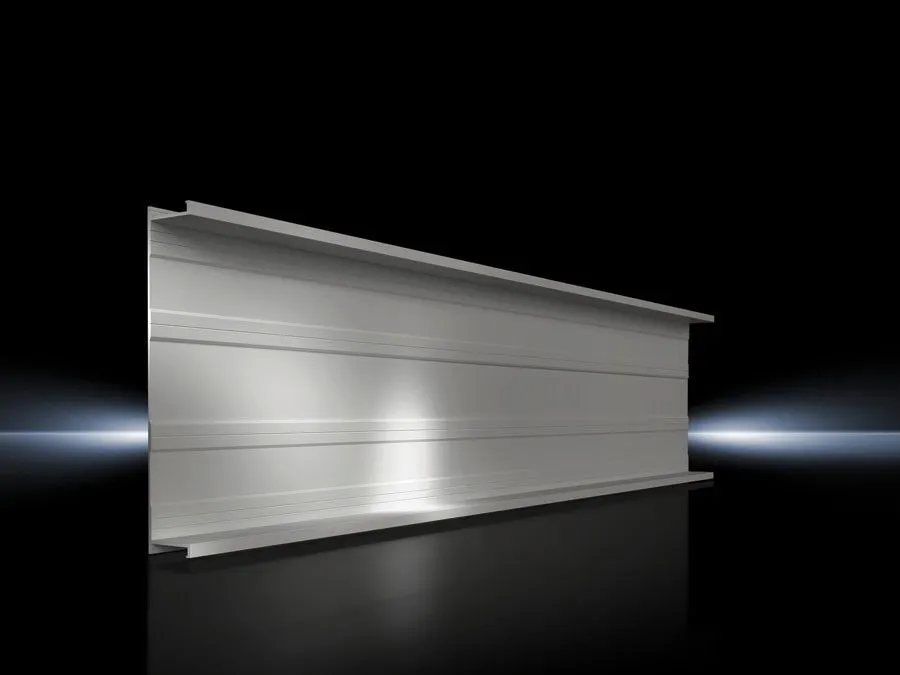

Rittal 9341120 SV Base Tray - 3-pole UL 94-V0
Part Number: 9341120
Manufacturer
Rittal
Part number
9341120
Category
Alt Part Number
SV 9341.120
Quick Summary
The SV Base Tray from Rittal is a rear contact hazard protection solution for busbar assemblies in switchgear. Engineers often struggle with exposed conductors and maintenance downtime when shielding is insufficient. The unit delivers UL 94-V0 fire protection and aligns with regional standards; verify CE compliance and IP ratings in official documentation as needed. With a 900 mm length and 3-pole fit, it integrates with PLS 800 busbar systems, enabling safer installations, faster servicing, and lower lifecycle costs for industrial power distribution.
Product Information
Extended Description
9341120 Rittal: SV Base tray, L: 900 mm (PLS 800)
Article number
SV 9341.120
Product description
For rear contact hazard protection of the busbar assembly.
Material
Thermally modified hard PVC. | Fire protection corresponding to UL 94-V0
Colour
RAL 7035
For number of poles
3
Length
900 mm
Note
May be cut individually to required length
To fit busbar system
PLS 800, 3-pole
Dimensions
Length: 900 mm
Packs of
2 pc(s).
Weight/pack
2.02 kg
Customs tariff number
85472000
EAN
4028177502819
ETIM 9
EC002270
ECLASS 8.0
27409221
Product description
SV Base tray, L: 900 mm (PLS 800)
Feature The SV Base Tray provides robust rear contact hazard protection for busbar assemblies, reducing the risk of arcing and accidental contact. Business Impact The improved safety envelope supports compliant maintenance workflows and minimizes unplanned downtime. Application The 900 mm length is designed to fit SV base trays in PL S 800 configurations and can be cut to required length for custom installations. Feature Thermally modified hard PVC material with UL 94-V0 fire protection. Business Impact The high-performance polymer offers fire resistance, durability, and long service life in harsh electrical environments. Application Suitable for 3-pole PLS 800 busbar systems and demanding switchgear applications. Feature Color and finish ensure visibility and enclosure compatibility with RAL 7035-based interiors. Business Impact Consistent aesthetics reduce misidentification risk and streamline cabinet integration. Application Color-matched components simplify inventory and reduce on-site modification time. Feature Weight per pack of 2 is 2.02 kg. Business Impact Lightweight handling and straightforward logistics lower shipping and installation costs. Application Quick installation in standard assemblies. Feature Note allows the base tray to be cut to length. Business Impact Flexible sizing reduces waste and speeds up commissioning. Application Ideal for retrofits and modular expansions where exact lengths vary.
Get a Quick Quote for a Rittal 9341120
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Rittal 9341120?
Enquire Now
FAQs
The SV Base Tray SV 9341.120 is designed for 3-pole PLS 800 busbar configurations and measures 900 mm in length. It can be cut to the required length in the field, enabling a precise fit for custom enclosures. This compatibility ensures a streamlined retrofit or new-build installation, minimizing modification work during integration.
Install as a rear shield to protect operators from busbar exposure. Each pack contains two trays, with a weight of 2.02 kg per pack, making handling straightforward. The tray is color-matched to RAL 7035 and can be trimmed to length to accommodate non-standard cabinet depths, reducing wastage and accelerating commissioning.
Yes. By covering rear busbar surfaces, the tray minimizes the risk of accidental contact during maintenance and service work. Its UL 94-V0 fire protection rating adds an important safety margin, helping protect personnel and equipment in daily operations and during fault conditions.
The product specifies fire protection according to UL 94-V0. Regional compliance such as CE marking and IP ratings are typically determined by the overall enclosure and regional requirements; consult the official Rittal documentation or datasheets (Downloads) for confirmation of CE and IP compliance for your region.
The tray reduces risk-related downtime by improving operator safety and enabling faster, cut-to-length installations. Its lightweight two-pack packaging simplifies logistics, while compatibility with PL S 800 systems minimizes rework. Over the lifecycle, this translates to lower maintenance costs and safer, more reliable power distribution in control cabinets.
