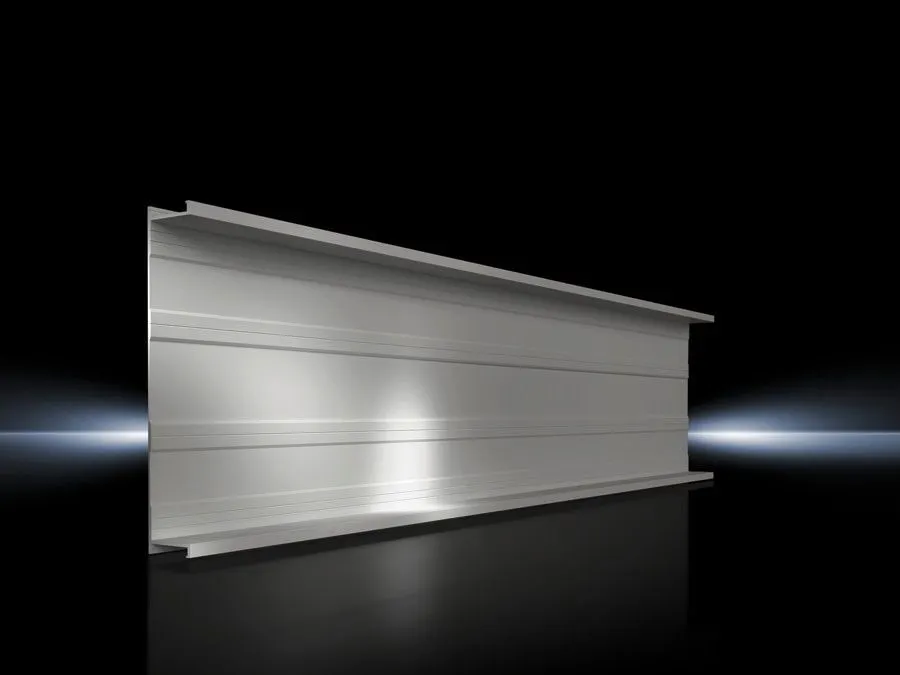

Rittal SV 9341.130 SV Base Tray - UL 94-V0 Fire Protection
Part Number: 9341130
Manufacturer
Rittal
Part number
9341130
Category
Alt Part Number
SV 9341.130
Quick Summary
Rittal SV 9341.130 SV Base Tray provides rear contact hazard protection for busbar assemblies in switchgear and control panels. Installing without a protective barrier can lead to accidental contact, arc faults, and increased downtime. This base tray supports UL 94-V0 fire protection, CE-compliant procurement practices, and standard classifications (ETIM EC002270, ECLASS 27409221) to simplify sourcing and maintenance. With a 1,100 mm length and 3-pole compatibility, it enables efficient, scalable power distribution in modern panels while offering on-site cut-to-length customization and straightforward installation for engineers and procurement teams.
Product Information
Extended Description
9341130 Rittal: SV Base tray, L: 1100 mm (PLS 800)
Article number
SV 9341.130
Product description
For rear contact hazard protection of the busbar assembly.
Material
Thermally modified hard PVC. | Fire protection corresponding to UL 94-V0
Colour
RAL 7035
For number of poles
3
Length
1,100 mm
Note
May be cut individually to required length
To fit busbar system
PLS 800, 3-pole
Dimensions
Length: 1,100 mm
Packs of
2 pc(s).
Weight/pack
2.77 kg
Customs tariff number
85472000
EAN
4028177502826
ETIM 9
EC002270
ECLASS 8.0
27409221
Product description
SV Base tray, L: 1100 mm (PLS 800)
Thermally modified hard PVC provides robust mechanical strength and inherent fire protection, reducing flame spread risk and supporting compliance in harsh electrical environments. Its color, RAL 7035, ensures consistent enclosure aesthetics and easy visual verification during assembly. The 3-pole, 1,100 mm length is designed to fit the PLS 800 busbar system, minimizing gaps and enabling secure mounting for reliable operation in power distribution panels. The cut-to-length capability offers on-site flexibility, reducing waste and speeding panel customization. Pack size and weight—2 pieces per pack, 2.77 kg per pack—support efficient stocking, shipping, and handling, essential for maintenance cycles and inventory planning. Overall compatibility with rear contact hazard protection in 3-pole busbar layouts streamlines installation and future upgrades.
Get a Quick Quote for a Rittal 9341130
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Rittal 9341130?
Enquire Now
FAQs
The SV 9341.130 base tray provides rear contact hazard protection for busbar assemblies, helping prevent accidental contact and improving safety in switchgear and control panels. It measures 1,100 mm in length and is designed for a 3-pole PLS 800 configuration.
Yes. The tray is specified to fit the PLS 800, 3-pole busbar system, ensuring a proper fit and secure mounting within 3-pole configurations. It can also be cut to length on-site to accommodate panel depth variations.
The base tray is made from thermally modified hard PVC and offers UL 94-V0 fire protection, supporting flame retardance requirements and enhancing overall enclosure safety in demanding electrical environments.
SV 9341.130 is packaged in packs of 2 pieces, with a weight of 2.77 kg per pack, facilitating efficient storage, handling, and logistics for maintenance workflows.
Download options include EN, DE, CS, and other language datasheets, as well as PDF views of the product. Access the downloads to obtain general technical information, datasheets, and installation notes for planning and procurement.
