Rittal 9341140 SV Base tray infill - UL 94-V0
Part Number: 9341140
Manufacturer
Rittal
Part number
9341140
Category
Alt Part Number
SV 9341.140
Quick Summary
9341140 SV Base tray infill protects rear contact areas during busbar connections between enclosures. Without proper isolation, arc flash risks and equipment downtime can erode uptime and safety budgets. CE marking and UL 94‑V0 fire protection are critical standards to consider, with IP ratings often required in harsher environments. This infill supports reliable PLS 800 busbar systems and contributes to safer cabinet assemblies, while offering straightforward installation and predictable lead times for project planning and procurement.
Product Information
Extended Description

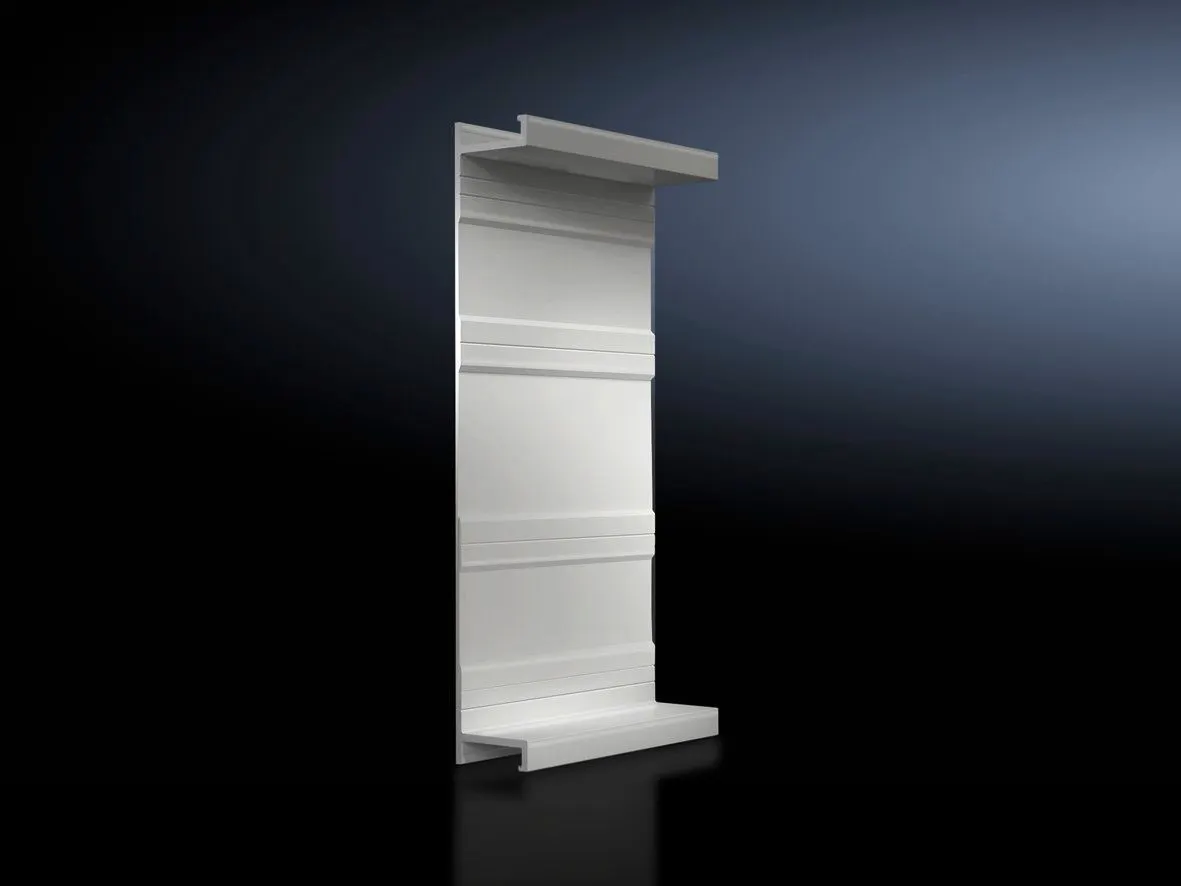

9341140 Rittal: SV Base tray infill, L: 100 mm (PLS 800)
Article number
SV 9341.140
Product description
For rear contact hazard protection when connecting the busbars from enclosure to enclosure.
Material
Thermally modified hard PVC. | Fire protection corresponding to UL 94-V0
Colour
RAL 7035
Supply includes
Assembly parts
Length
100 mm
Number of poles
3-pole
To fit busbar system
PLS 800, 3-pole
Connection type
Baying connection from enclosure to enclosure
Dimensions
Length: 100 mm
Packs of
2 pc(s).
Weight/pack
0.256 kg
Customs tariff number
85472000
EAN
4028177502833
ETIM 7.0
EC002498
ECLASS 8.0
27379201
Product description
SV Base tray infill, L: 100 mm (PLS 800)
Rear contact hazard protection when connecting busbars between enclosures is a key feature, translating directly into reduced risk of arcing and improved operator safety. In practice, the protection shell enables quicker, safer baying connections, cutting installation time and lowering commissioning costs. The thermally modified hard PVC with UL 94‑V0 fire rating ensures durable performance in demanding cabinet environments, supporting compliance and long-term reliability. The 3‑pole design is tailored to PLS 800 systems, delivering consistent electrical performance and simplified stock management for procurement teams. With a 100 mm length and assembly parts included, installation is straightforward, minimizing custom fabrication and enabling standardization across multi-enclosure layouts. The RAL 7035 coloration supports easy visual identification within modular racks, while packs of two optimize shipping and warehousing efficiency.
Get a Quick Quote for a Rittal 9341140
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Rittal 9341140?
Enquire Now
FAQs
SV 9341.140 acts as rear contact hazard protection for busbar connections between enclosures. It provides a safe, compliant path for baying busbars, reducing the risk of exposure to live contacts during installation and future maintenance while supporting standardized, repeatable assembly in modular enclosure layouts.
Installation requires aligning the 3-pole SV base tray infill with the PLS 800 busbar rails, securing with the included assembly parts, and ensuring the 100 mm length properly spans adjoining enclosures. The baying connection type is designed for straightforward enclosure-to-enclosure linkages, helping to minimize downtime during cabinet upgrades or expansions.
The product specifies UL 94‑V0 fire protection and color/material details, and CE marking is commonly expected for EU compliance, though the provided data does not explicitly confirm CE status. When purchasing for EU deployments, verify CE certification with the supplier to ensure full regulatory alignment.
SV 9341.140 is a 3-pole base tray infill designed to fit the PLS 800 busbar system, with a standard length of 100 mm. It ships in packs of two, weighing 0.256 kg per pack, and comes in color RAL 7035. The assembly parts are included to facilitate quick installation across multi-enclosure configurations.
Using SV 9341.140 delivers safety improvements by reducing rear-contact exposure, supports regulatory fire protection (UL 94‑V0), and enhances installation efficiency with included parts. Standardized 100 mm length and 3-pole design streamline stock management and reduce downtime during baying connections, providing predictable lead times and cost savings in mid- to large-scale enclosures projects.
