Rittal 9341170 SV Base Tray - UL 94-V0, 3-pole
Part Number: 9341170
Manufacturer
Rittal
Part number
9341170
Category
Alt Part Number
SV 9341.170
Quick Summary
Rittal SV Base Tray provides rear contact hazard protection for busbar assemblies in switchgear and control cabinets. Engineers often face hazardous rear contacts and the need to tailor parts to exact layouts, which drives field modifications and rework. Key certifications include UL 94-V0 fire protection, ETIM EC002270, and ECLASS 27409221, supporting safety compliance and catalog interoperability. By combining robust material with a cut-to-length design for the 3-pole PLS 800 system, it speeds deployment and minimizes waste while maintaining protection. This translates to faster project timelines, safer commissioning, and lower lifecycle costs for panel builders. Its compatibility with PLS 800, 3-pole configurations and clear length options makes procurement straightforward.
Product Information
Extended Description

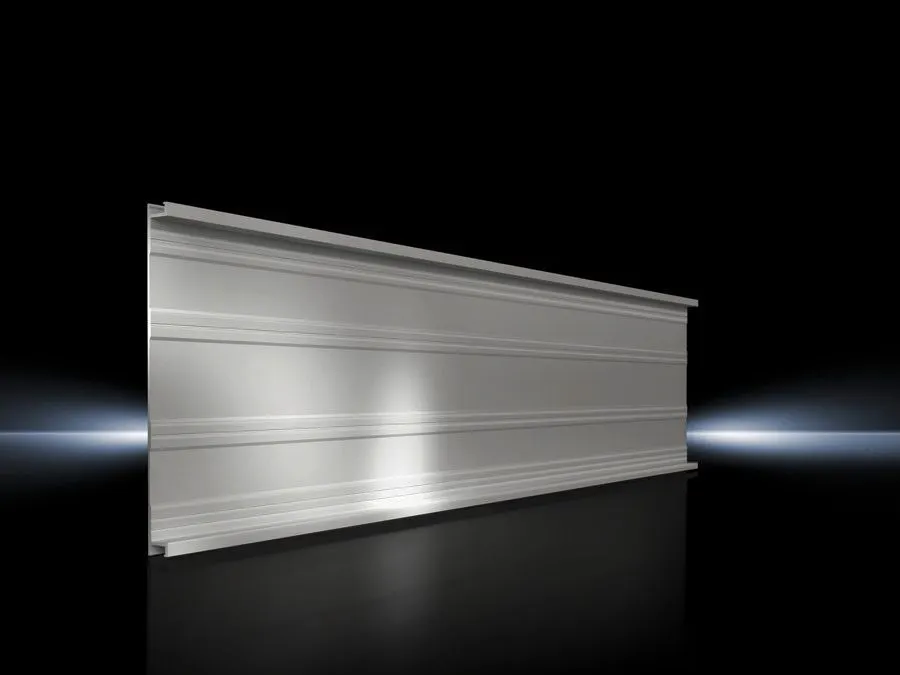

9341170 Rittal: SV Base tray, L: 2400 mm (PLS 800)
Article number
SV 9341.170
Product description
For rear contact hazard protection of the busbar assembly.
Material
Thermally modified hard PVC. | Fire protection corresponding to UL 94-V0
Colour
RAL 7035
For number of poles
3
Length
2,400 mm
Note
May be cut individually to required length
To fit busbar system
PLS 800, 3-pole
Dimensions
Length: 2,400 mm
Packs of
1 pc(s).
Weight/pack
3.1 kg
Customs tariff number
85472000
EAN
4028177572348
ETIM 9
EC002270
ECLASS 8.0
27409221
Product description
SV Base tray, L: 2400 mm (PLS 800)
Material and fire protection: The SV Base Tray uses thermally modified hard PVC with UL 94-V0 fire protection, delivering reliable non-conductive shielding for dense busbar arrays. This improves operator safety and reduces risk of ignition in cabinet environments. Application context: aligns with standard switchgear enclosures and supports safe, compliant assembly practices in high-density power distribution. Length and cut-to-fit flexibility: The tray is specified at 2,400 mm and can be trimmed to required lengths without compromising structural integrity. This capability reduces waste, minimizes on-site fabrication, and simplifies stocking through standard packs of one piece. In practice, field technicians appreciate the ability to tailor protection to exact layouts in PLS 800 projects. Compatibility and installation: Specifically designed to fit PLS 800, 3-pole busbar systems, ensuring smooth integration with minimal mounting adjustments. The part’s extrusion and mounting features support quick alignment with existing busbar frames. This translates to shorter commissioning times and more predictable installation schedules. Weight, handling, and logistics: With a weight of 3.1 kg per pack, it is manageable for manual handling and straightforward shipping. Light yet sturdy, it reduces lift requirements in crowded control rooms and minimizes crate costs. Operators appreciate dependable performance without complicating transport. Material properties and color standardization: ARAL 7035 hue provides visual consistency across cabinets, aiding routing clarity and documentation. Consistent coloring helps maintain clear labeling and reduces confusion during multi-vendor builds. The durable PVC finish also resists wear in dusty industrial environments. Data and documentation for procurement: ETIM EC002270 and ECLASS 27409221 classifications support automated data integration and catalog mapping. The EAN, article number SV 9341.170, and compatibility notes streamline purchasing in ERP and e-procurement systems. Overall, the base tray enhances sourcing accuracy and reduces order-cycle times.
