Rittal SV 9342.004 Busbar Support - UL design
Part Number: 9342004
Manufacturer
Rittal
Part number
9342004
Category
Alt Part Number
SV 9342.004
Quick Summary
SV 9342.004 busbar support provides UL design busbar mounting for PLS 1600, 4-pole configuration in compact assemblies. Engineers often struggle with UL compliance and space constraints in switchgear, and this part simplifies assembly and reduces downtime. Built from PA with UL 94‑V0 fire protection and rated for up to 1000 V, it also supports high SCCR up to 65 kA. For business value, you gain reliable UL compliance, compact fit in PLS 1600 systems, and faster installation in control panels. This module is sized for top mounting with 60 mm centre distance and 4 poles, enabling dense busbar layouts. Additionally, the kit includes four pieces per pack and clear installation notes, supporting rapid, repeatable assembly across multiple panels.
Product Information
Extended Description

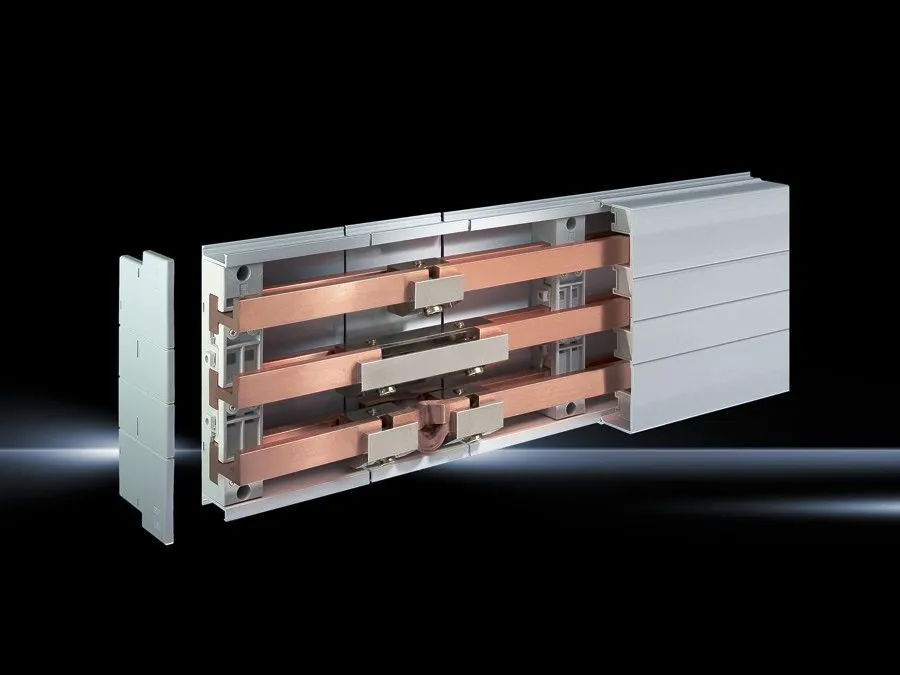

9342004 Rittal: SV Busbar support, PLS 1600, 4-pole, 60 mm bar centre distance, UL design
Article number
SV 9342.004
Material
Polyamide | Fire protection corresponding to UL 94-V0
Colour
RAL 7035
Rated operating voltage
1000 V, 3~
Electrical ratings UL (SCCR)
65 kA - 480 V, support spacing 250 mm, PLS 1600 busbars, circuit breaker max. 1200 A, DIVQ/7 |
Note on Model No.
The use of a base tray is required for UL applications
Busbar support design
PLS 1600 PLUS
Number of poles
4-pole
To fit busbars
PLS 1600
Internal attachment
Yes
Centre-to-centre spacing of busbars
60 mm
Packs of
4 pc(s).
Weight/pack
2.276 kg
Customs tariff number
85469010
EAN
4028177536760
ETIM 9
EC001166
ECLASS 8.0
27400607
Product description
SV Busbar support, PLS 1600, 4-pole, 60 mm bar centre distance, UL design
Feature: 60 mm centre-to-centre spacing and 4-pole design align with PLS 1600 busbars, enabling dense, high-current layouts. Business Impact: Maximizes enclosure density while maintaining safe separation and easy wiring routes, reducing panel width and material costs. Application: Ideal for switchgear and control cabinets employing PLS 1600 busbar systems. Feature: UL design with UL 94‑V0 rated PA material improves fire safety and regulatory compliance. Business Impact: Enhances safety margins and simplifies approvals for UL-listed assemblies, lowering risk during audits. Application: Suitable for UL applications in manufacturing controls and power distribution. Feature: Top-mounting capability with internal attachment supports quick, vibration-resistant installations. Business Impact: Cuts installation time and labor costs while improving assembly integrity in harsh environments. Application: Works with Rittal enclosures in demanding environments. Feature: 60 mm spacing and 1000 V rated operating voltage with 65 kA SCCR at 480 V. Business Impact: Enables safe operation across high-current feeders and protection coordination with circuit breakers up to 1200 A. Application: Critical in high-power distribution panels. Feature: Packs of four with a base-tray note for UL use. Business Impact: Simplifies procurement and standardizes stocking; base-tray guidance ensures full UL compliance. Application: Streamlines stocking, maintenance, and retrofit projects across multiple panels.
Get a Quick Quote for a Rittal 9342004
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Rittal 9342004?
Enquire Now
FAQs
SV 9342.004 is designed to fit PLS 1600 busbars with a 60 mm centre distance and supports top-mount installation. It features internal attachment for secure mounting and comes in packs of four. Note that UL applications require a base tray for full compliance.
The component uses polyamide with UL 94‑V0 fire protection, rated for 1000 V (3‑phase). It supports UL SCCR up to 65 kA at 480 V, suitable for high‑current switchgear. It is a 4‑pole unit designed for PLS 1600 busbars with 60 mm spacing.
Yes. With 60 mm centre spacing, 4 poles, and a 65 kA SCCR rating at 480 V, SV 9342.004 is well-suited for dense, high‑current distribution in switchgear and control panels using PLS 1600 busbars, while maintaining safe enclosure clearances.
The unit is made from polyamide with UL 94‑V0 fire protection, contributing to improved safety margins in UL‑compliant assemblies. This material choice supports durable, heat‑resistant performance in demanding electrical environments.
Each pack contains four pieces, simplifying stocking and replacement. The internal attachment feature improves installation reliability, and the UL base-tray requirement guidance helps ensure full UL compliance during UL‑rated installations.
