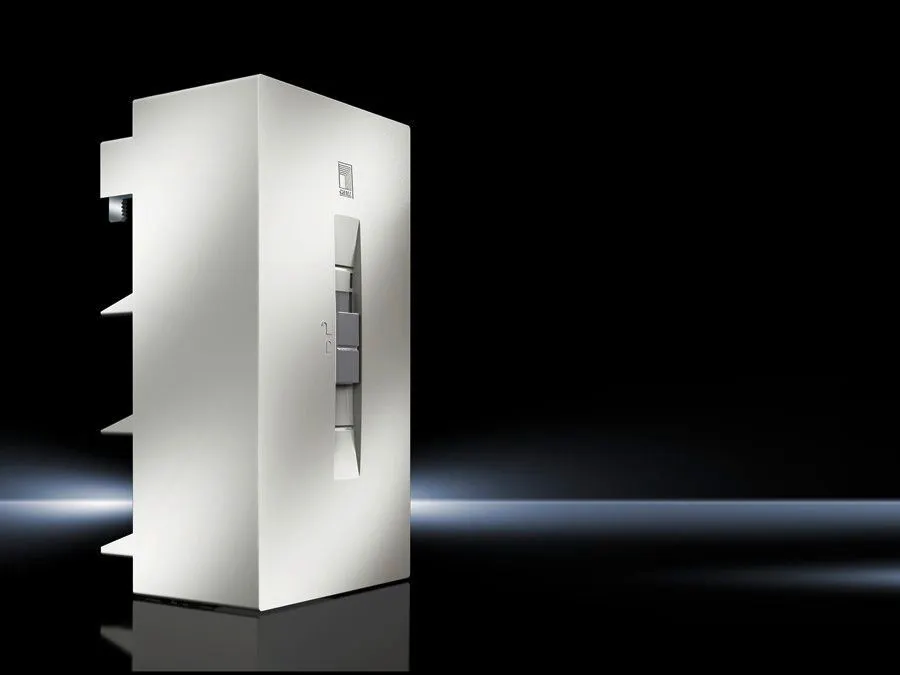

Rittal SV 9342.300 SV Connection Adaptor - 50 kA

High current capability enables straightforward scaling; the adaptor delivers up to 800 A at 690 V for a 3‑pole configuration in 60 mm bar systems, reducing the need for parallel connections and saving cabinet space. This translates to lower contact resistance and reduced maintenance costs over the life of the installation. It’s ideal for power distribution cabinets and switchgear where high power density is essential. Bottom cable outlet simplifies routing and keeps wiring neat, cutting install time and reducing potential conductor stress. The clamping area 33x20 mm ensures robust connection to laminated copper bars, improving contact integrity under vibration and temperature cycling, which is valuable for critical power paths in manufacturing and data centers. Compatibility with round conductors 95–300 mm² (95–185 mm² for fine wire with ferrule) provides flexibility across conductor types while simplifying spare parts planning. This, combined with busbar height adaptors of 5 or 10 mm, reduces inventory needs and accelerates commissioning in multi‑vendor environments. Material composition (ABS cover, PA punched section) with UL 94‑V0 fire protection enhances safety and simplifies cabinet integration; the standard RAL 7035 color supports consistent labeling and maintenance. These features help ensure compliance with safety standards while preserving serviceability in regulated facilities. DC ratings extend applications to DC busbar networks, with L1+L2 rated to 1000 V and L1+L3 rated to 1500 V, and packaging details (1 pc per pack, 1.565 kg per pack, copper weight 0.358 kg) aid in planning and procurement. UL SCCR of 50 kA at 600 V and fuse class K5 compatibility reduce short‑circuit risk, though UL data may vary by application; verify local compliance during installation.
