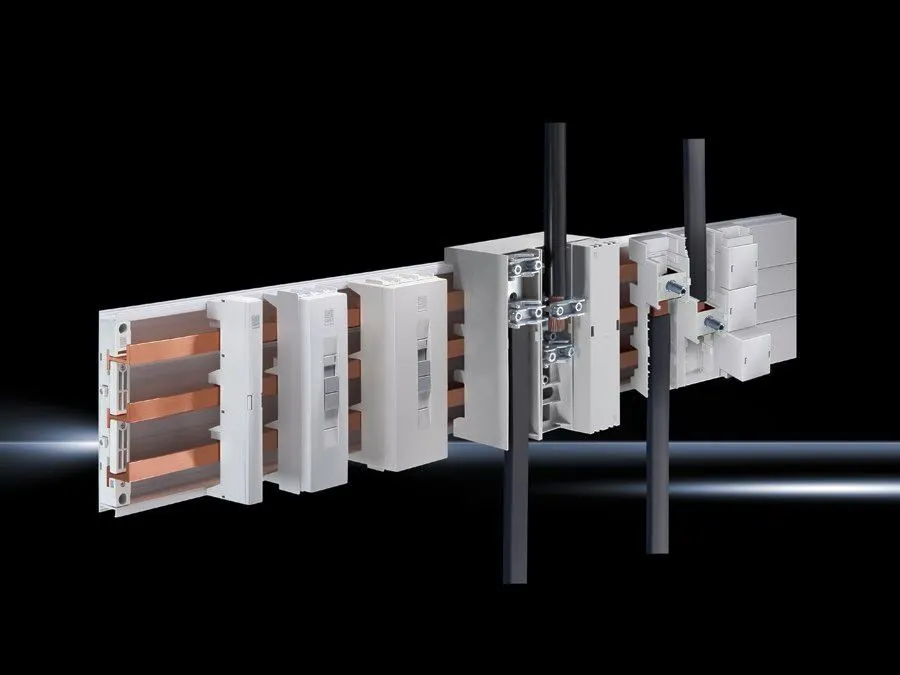

Rittal 9342320 SV Connection Adaptor - UL SCCR 65 kA
Part Number: 9342320
Manufacturer
Rittal
Part number
9342320
Category
Alt Part Number
SV 9342.320
Quick Summary
Rittal SV Connection Adaptor 9342320 enables high‑current busbar connections for 60 mm centre‑to‑centre systems. Engineers frequently contend with bulky adapters, unclear clamping ranges, and non‑standard mounting that slows panel builds. This adaptor delivers robust UL SCCR protection and a UL 94‑V0 fire‑rated housing for safer installations. Designed for 1,600 A at 690 V and compatible with laminated copper bars (5 mm or 10 mm thick), it helps reduce assembly time and potential rework. By standardizing on a single, dependable interface, electrical assemblies meet demanding industry standards while improving reliability and service life in factory automation and electrical distribution applications.
Product Information
Extended Description
9342320 Rittal: SV Connection adaptor, 1600 A, 690 V, 3-pole, cable outet top/bottom, clamping area WH: 65x22/27 mm
Article number
SV 9342.320
Material
Cover: ABS | Punched section: Polyamide | Fire protection corresponding to UL 94-V0
Colour
RAL 7035
Rated current max.
1,600 A
Rated operating voltage
690 V, 3~
Electrical ratings UL (SCCR)
65 kA - 480 V, circuit breaker max. 1200 A, DIVQ/7
Cable outlet
Top/bottom
For bar systems with centre-to-centre spacing
60 mm
Note
The technical data may vary for UL applications
Number of poles
3-pole
Dimensions
Width: 255 mm | Height: 210 mm
To fit busbars
Height: 5, 10 mm
Clamping area for laminated copper bars with 5 mm bar thickness (W x H)
65 x 27 mm
Clamping area for laminated copper bars with 10 mm bar thickness (W x H)
65 x 22 mm
Rated operating voltage (L1 + L2)
1000 V (DC)
Rated operating voltage (L1 + L3)
1500 V (DC)
Packs of
1 pc(s).
Weight/pack
2.72 kg
Copper weight (kg per piece)
0.408
Customs tariff number
85369010
EAN
4028177525689
ETIM 9
EC001531
ECLASS 8.0
27370304
Product description
SV Connection adaptor, 1600 A, 690 V, 3-pole, cable outet top/bottom, clamping area WH: 65x22/27 mm
Feature → Business Impact → Application: The SV Connection Adaptor supports a 60 mm centre‑to‑centre spacing, enabling compact, scalable busbar layouts that reduce panel width and wiring complexity. This translates to shorter installation times, lower labor costs, and easier future upgrades in control panels and switchgear. Application: suitable for 3‑pole, laminated copper busbars and top/bottom cable outlets, streamlining integration with existing power distribution frames. Feature → Compatibility → Installation: 1,600 A max current and 690 V rating ensure compatibility with high‑power drives and MCCs, while 1‑pack packaging and a defined weight of 2.72 kg simplify logistics and on‑site handling. Feature → Compliance → Risk management: UL SCCR 65 kA at 480 V and UL 94‑V0 fire protection reduce compliance risk and support safer operation in harsh environments. Application: ideal for panel builders seeking reliable, UL‑listed power interfaces with proven clamping areas for 5 mm and 10 mm copper bars.
Get a Quick Quote for a Rittal 9342320
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Rittal 9342320?
Enquire Now
FAQs
When installing the 9342320 SV Connection Adaptor, ensure it aligns with 60 mm centre‑to‑centre busbar spacing and uses the top/bottom cable outlets. Confirm clamping areas accommodate 5 mm or 10 mm laminated copper bars (65 x 27 mm or 65 x 22 mm) and that mounting clears 255 mm width and 210 mm height. Proper mechanical support is essential to maintain UL conformity.
The adaptor is rated for up to 1,600 A with 690 V three‑phase operation. DC ratings include 1000 V L1+L2 and 1500 V L1+L3. It carries UL SCCR 65 kA at 480 V, and the housing provides UL 94‑V0 Fire protection. These specs support robust, compliant power interfaces in demanding control panels.
Yes. The adaptor provides clamping areas of 65 x 27 mm for 5 mm copper bars and 65 x 22 mm for 10 mm bars, supporting common laminated copper configurations. Height accommodation is 5 or 10 mm, enabling flexible integration within existing busbar schemes and minimizing the need for custom fabrication.
Key safety features include UL SCCR 65 kA at 480 V and a UL 94‑V0 fire rating for the housing. The design supports 60 mm centre spacing, 3‑pole operation, and robust cable exit options, which collectively reduce risk in power distribution enclosures and improve long‑term reliability in industrial environments.
The SV 9342.320 consolidates high current capability with a compact footprint (255 mm W x 210 mm H) and 2.72 kg per pack, lowering installation time and inventory complexity. Its standardized interface simplifies OEM integration, reduces spare parts variety, and enhances overall uptime in automation and packaging lines.
