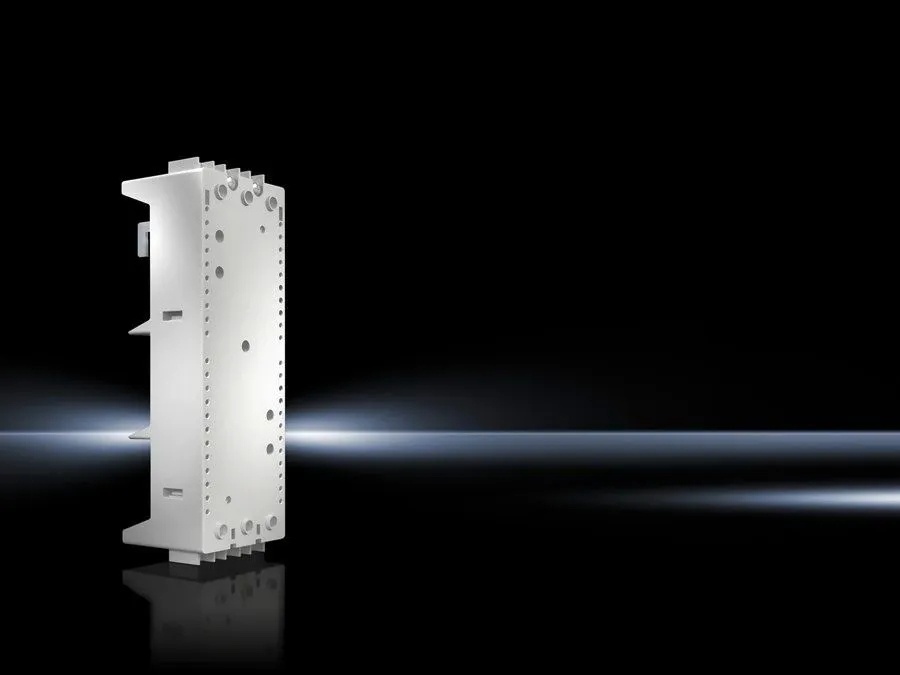

Rittal SV 9342.400 Circuit-breaker Adaptor - 3-Pole
Part Number: 9342400
Manufacturer
Rittal
Part number
9342400
Category
Alt Part Number
SV 9342.400
Quick Summary
Rittal SV 9342.400 circuit-breaker adaptor enables universal, simplified breaker assembly for control panels and switchgear. Engineers often struggle with misaligned busbars and tangled wiring when integrating breakers, leading to rework and downtime. This adaptor delivers UL 94‑V0 flame protection and UL SCCR up to 65 kA, along with 3‑pole operation at 100 A and 690 V, ensuring safe, compliant installations. By supporting universal switchgear applications and 60 mm center-to-center busbar spacing, it streamlines procurement and installation, reducing spare-part complexity while improving reliability for panel builders and end users. Secondary benefits include compatibility with ABB models MS 495–MS 497 and clear, repeatable assembly workflows that speed up project delivery and maintenance.
Product Information
Extended Description
9342400 Rittal: SV Circuit-breaker component adaptor, 100 A, 690 V, 3-pole, cable outlet top, round conductor connection 10-35 mm², clamping area WH: 10x7,8 mm
Article number
SV 9342.400
Material
Polyamide | Fire protection corresponding to UL 94-V0
Colour
RAL 7035
Type of electrical connection
Box terminal
Rated current max.
100 A
Rated operating voltage
690 V, 3~
Electrical ratings UL (SCCR)
65 kA - 480 V, Manual Motor Controller max. 100 A, NLRV/7
Cable outlet
Top
For bar systems with centre-to-centre spacing
60 mm
Note
Cable outlet: Switch outlet or as outgoing cable from the switchgear
Number of poles
3-pole
For universal switchgear application
Yes
Dimensions
Width: 72 mm | Height: 210 mm
Connection for round conductor
10 ‐ 35 mm²
To fit busbars
Height: 5, 10 mm
Clamping area for laminated copper bars (W x H)
10 x 7.8 mm
To fit manufacturer (model)
ABB (MS 495, MS 496, MS 497)
Packs of
1 pc(s).
Weight/pack
0.58 kg
Copper weight (kg per piece)
0.114
Customs tariff number
85369095
EAN
4028177503694
ETIM 9
EC001531
ECLASS 8.0
27370304
Product description
SV Circuit-breaker component adaptor, 100 A, 690 V, 3-pole, cable outlet top, round conductor connection 10-35 mm², clamping area WH: 10x7,8 mm
Feature: Top cable outlet and 3-pole design for 100 A at 690 V. Business impact: simplifies cable routing and maintains a compact footprint in switchgear installations. Application: ideal for control panels with 60 mm busbar spacing and 10–35 mm² round conductors. The adaptor reduces wiring effort and accelerates commissioning. Feature: Box terminal connection with secure clamping area (10 x 7.8 mm) for laminated copper bars. Business impact: provides robust mechanical and electrical contact, lowering loose-connection risk and maintenance needs. Application: suitable for laminated copper bars up to the specified dimensions in motor control centers. Feature: UL 94‑V0 material rating and UL SCCR up to 65 kA at 480 V. Business impact: enhances fire safety compliance and approval coverage for critical applications, reducing qualification time. Application: supports industry-standard safety certifications in regulated environments. Feature: ABB compatibility (MS 495, MS 496, MS 497). Business impact: enables straightforward substitution and universal switchgear integration, minimizing stocking diversity. Application: common in legacy and modern ABB switchgear ecosystems. Feature: Pack of 1 with defined weight and copper content (0.58 kg per pack, 0.114 kg copper per piece). Business impact: predictable logistics, easier BOM planning, and cost control. Application: optimizes procurement and warehousing for panel shops.
