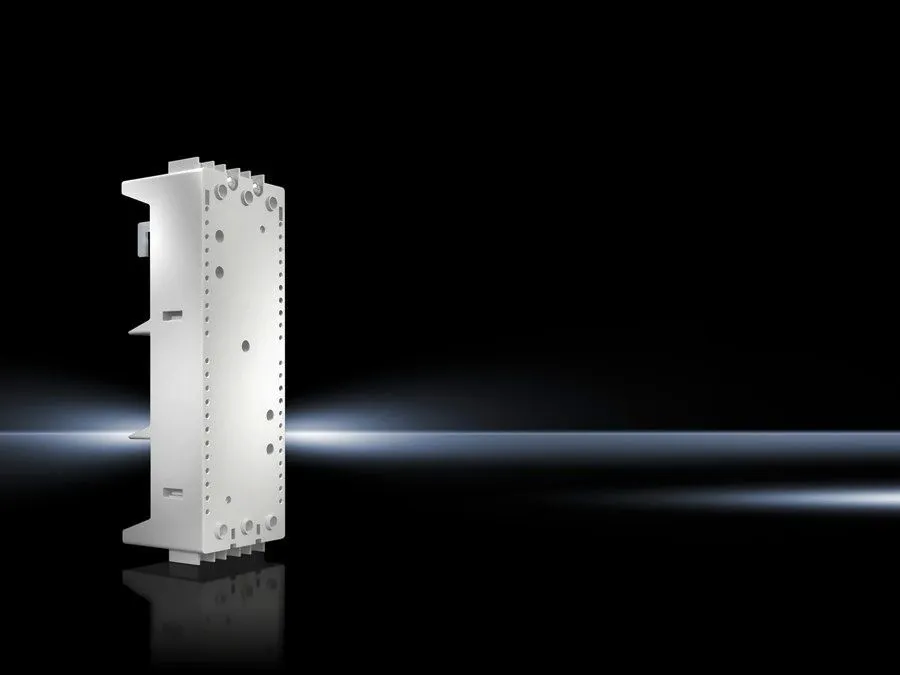

Rittal SV 9342.410 Circuit-Breaker Adaptor - 100 A / 690 V
Part Number: 9342410
Manufacturer
Rittal
Part number
9342410
Category
Alt Part Number
SV 9342.410
Quick Summary
Rittal SV 9342.410 circuit-breaker adaptor provides universal, simplified mounting for 3-pole breakers. Engineers often struggle with incompatible adapters, limited cable exits, and mounting constraints that slow panel assembly. This design carries UL SCCR protection up to 65 kA at 480 V and UL 94‑V0 fire‑rating material for safer enclosures. Its ABB MS compatibility and bottom cable outlet streamline installation, while 60 mm center-to-center spacing supports common busbar layouts. By consolidating parts and enabling universal switchgear application, the adaptor reduces inventory complexity and supports faster maintenance cycles.
Product Information
Extended Description
9342410 Rittal: SV Circuit-breaker component adaptor, 100 A, 690 V, 3-pole, cable outlet bottom, round conductor connection 10-35 mm², clamping area WH: 10x7,8 mm
Article number
SV 9342.410
Material
Polyamide | Fire protection corresponding to UL 94-V0
Colour
RAL 7035
Type of electrical connection
Box terminal
Rated current max.
100 A
Rated operating voltage
690 V, 3~
Electrical ratings UL (SCCR)
65 kA - 480 V, Manual Motor Controller max. 100 A, NLRV/7
Cable outlet
Bottom
For bar systems with centre-to-centre spacing
60 mm
Note
Cable outlet: Switch outlet or as outgoing cable from the switchgear
Number of poles
3-pole
For universal switchgear application
Yes
Dimensions
Width: 72 mm | Height: 210 mm
Connection for round conductor
10 ‐ 35 mm²
To fit busbars
Height: 5, 10 mm
Clamping area for laminated copper bars (W x H)
10 x 7.8 mm
To fit manufacturer (model)
ABB (MS 495, MS 496, MS 497)
Packs of
1 pc(s).
Weight/pack
0.58 kg
Copper weight (kg per piece)
0.114
Customs tariff number
85369095
EAN
4028177503762
ETIM 9
EC001531
ECLASS 8.0
27370304
Product description
SV Circuit-breaker component adaptor, 100 A, 690 V, 3-pole, cable outlet bottom, round conductor connection 10-35 mm², clamping area WH: 10x7,8 mm
The SV 9342.410 is a 3‑pole adaptor designed for universal circuit-breaker mounting up to 100 A and 690 V, with a bottom cable outlet and round conductor connection range of 10–35 mm². This feature reduces part variety and simplifies wiring, leading to faster panel builds and easier future upgrades in industrial control panels. The accompanying 60 mm busbar center-to-center spacing ensures reliable alignment with standard switchgear frames, improving installation accuracy and reducing commissioning time. Material choice is polyamide with UL 94‑V0 fire protection, delivering safer enclosure integration in harsh environments and helping meet stringent safety standards. The design also provides a clamping area for laminated copper bars (10 × 7.8 mm), supporting robust, low-resistance connections for long-term performance. ABB MS compatibility further broadens cross-brand interoperability, lowering total cost of ownership for panel builders. Packaging is 1 piece per pack, with a total weight of 0.58 kg, aiding procurement planning and inventory control. In practice, this adaptor accelerates new builds and simplifies retrofits, delivering measurable gains in install time, safety, and reliability across modular switchgear configurations.
