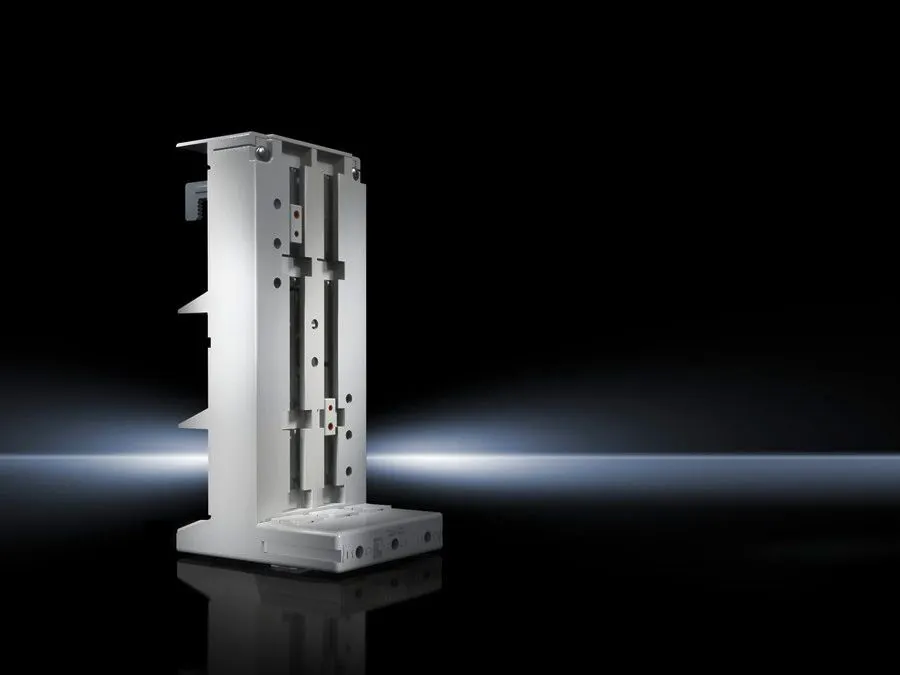

Rittal 9342500 SV adaptor - 160 A, 690 V, 3-pole, UL 94-V0
Part Number: 9342500
Manufacturer
Rittal
Part number
9342500
Category
Alt Part Number
SV 9342.500
Quick Summary
SV adaptor enables universal, simplified circuit-breaker mounting for compact switchgear in industrial control panels. Engineers often encounter fitment and clearance challenges when swapping ABB S-series breakers into space-constrained enclosures. The component features UL 94-V0 fire-rated polyamide housing and is designed for 160 A at 690 V, 3-pole operation, matching common distribution-panel requirements. Compatibility extends to ABB S1, S2, T1, T2, XT1, XT2 models, ensuring interchangeability across portfolios. By standardizing mounting geometry and offering a top cable outlet with included terminal cover and sliding blocks, this adaptor reduces install time, minimizes wiring errors, and improves panel aesthetics and safety.
Product Information
Extended Description
9342500 Rittal: SV Circuit-breaker component adaptor, 160 A, 690 V, 3-pole, cable outlet top, round conductor connection 35-120 mm², clamping area WH: 18,5x15,5 mm
Article number
SV 9342.500
Material
Polyamide | Fire protection corresponding to UL 94-V0
Colour
RAL 7035
Supply includes
Terminal cover | Sliding blocks
Type of electrical connection
Box terminal
Rated current max.
160 A
Rated operating voltage
690 V, 3~
Cable outlet
Top
For bar systems with centre-to-centre spacing
60 mm
Note
Cable outlet: Switch outlet or as outgoing cable from the switchgear
Number of poles
3-pole
Dimensions
Width: 90 mm | Height: 215 mm
Connection for round conductor
35 ‐ 120 mm²
To fit busbars
Height: 5, 10 mm
Clamping area for laminated copper bars (W x H)
18.5 x 15.5 mm
To fit manufacturer (model)
ABB (S1, S2, T1, T2, XT1, XT2)
Packs of
1 pc(s).
Weight/pack
0.8 kg
Copper weight (kg per piece)
0.202
Customs tariff number
85369095
EAN
4028177503779
ETIM 9
EC001531
ECLASS 8.0
27370304
Product description
SV Circuit-breaker component adaptor, 160 A, 690 V, 3-pole, cable outlet top, round conductor connection 35-120 mm², clamping area WH: 18,5x15,5 mm
Feature: High-current capability up to 160 A and 690 V three-phase operation. Benefit: Supports demanding motor start-ups and distribution loads without overheating or voltage drop, increasing system reliability in industrial panels. Application: Ideal for 3-pole ABB S-series breakers in control cabinets with 60 mm center-to-center busbar spacing; enables quick retrofits and scalable architectures. Feature: Top cable outlet design. Benefit: Simplifies wire routing, reduces clutter, and speeds installation while improving safety and maintainability. Application: Suitable for panels with limited side clearance and for cabling that exits toward the top of the enclosure. Feature: 18.5 × 15.5 mm clamping area for laminated copper bars. Benefit: Ensures secure, low-resistance connections for laminated copper conductors, lowering contact resistance during operation. Application: Compatible with common laminated copper bar geometries in power distribution frames. Feature: Material and finish. Benefit: UL 94-V0 fire-rated polyamide provides flame retardance and long-term durability in indoor switchgear environments. Application: Color coded in RAL 7035 for easy visibility and maintenance. Feature: Includes terminal cover and sliding blocks. Benefit: Reduces wiring mistakes and supports faster, repeatable installations. Application: Great for standard panel builds and upgrade projects where consistency matters.
Get a Quick Quote for a Rittal 9342500
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Rittal 9342500?
Enquire Now
FAQs
The SV 9342.500 adaptor is designed to fit ABB S-series breakers including S1, S2, T1, T2, XT1, and XT2. This compatibility preserves mounting geometry, reduces panel rework, and allows quick substitutions in mixed-brand or evolving control panels while maintaining a stable 3-pole, 160 A, 690 V configuration.
Key specs are 160 A maximum current, 690 V operating voltage (3-phase), top cable outlet, and a box terminal connection. It accepts round conductors from 35 to 120 mm² with a clamping area of 18.5 x 15.5 mm and busbar clearance heights of 5 or 10 mm, enabling secure and versatile wiring across common distribution panels.
Yes. The adaptor is designed for bar systems with 60 mm center-to-center spacing and top cable outlet routing, which aligns with many standard switchgear layouts. Combined with included terminal cover and sliding blocks, it supports neat terminations and fast commissioning in 3-pole assemblies.
The adaptor uses UL 94-V0 fire-rated polyamide material for safety. It is classified under ETIM 9 EC001531 and ECLASS 8.0 27370304, reflecting industry-standard categorization. While specific CE or SIL ratings are not listed, the design emphasizes regulatory-aligned construction and compatibility with ABB S-series equipment.
Adopting the SV adaptor standardizes breaker mounting, reducing panel rework and wiring errors. The 160 A, 690 V rating supports reliable long-term operation in distribution panels, while the top outlet and included accessories shorten service time during upgrades, translating to lower maintenance costs and faster downtime recovery.
