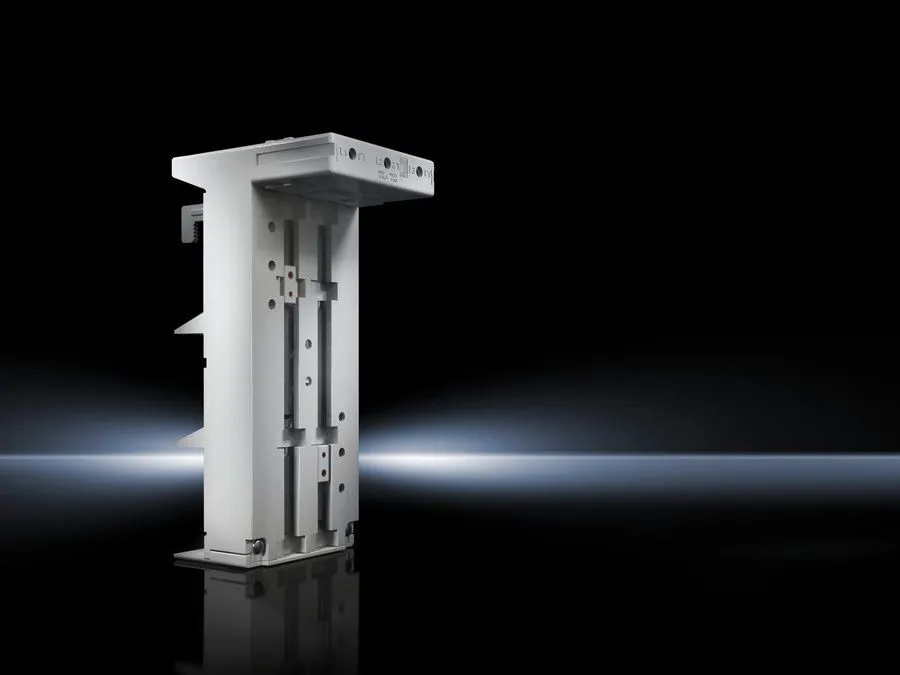

Rittal SV 9342.510 Adaptor - 160 A, 690 V (3-pole, UL 94-V0)
Part Number: 9342510
Manufacturer
Rittal
Part number
9342510
Category
Alt Part Number
SV 9342.510
Quick Summary
The SV 9342.510 Adaptor is a circuit-breaker adaptor that simplifies ABB breaker installation in switchgear. Engineers often struggle with aligning diverse breakers and busbars in compact panels, leading to wiring errors and longer commissioning times. Its UL 94-V0 fire protection, 690 V rating, and 160 A capacity provide robustness for industrial control layouts. Designed for 60 mm busbar centers and a bottom cable outlet, it integrates easily with ABB S1/S2/T1/T2/XT1/XT2. In practice, installers value the bottom cable outlet and compact footprint for tight panel tolerances. The included terminal cover and sliding blocks ease initial assembly.
Product Information
Extended Description
9342510 Rittal: SV Circuit-breaker component adaptor, 160 A, 690 V, 3-pole, cable outlet bottom, round conductor connection 35-120 mm², clamping area WH: 18,5x15,5 mm
Article number
SV 9342.510
Material
Polyamide | Fire protection corresponding to UL 94-V0
Colour
RAL 7035
Supply includes
Terminal cover | Sliding blocks
Type of electrical connection
Box terminal
Rated current max.
160 A
Rated operating voltage
690 V, 3~
Cable outlet
Bottom
For bar systems with centre-to-centre spacing
60 mm
Note
Cable outlet: Switch outlet or as outgoing cable from the switchgear
Number of poles
3-pole
Dimensions
Width: 90 mm | Height: 215 mm
Connection for round conductor
35 ‐ 120 mm²
To fit busbars
Height: 5, 10 mm
Clamping area for laminated copper bars (W x H)
18.5 x 15.5 mm
To fit manufacturer (model)
ABB (S1, S2, T1, T2, XT1, XT2)
Packs of
1 pc(s).
Weight/pack
0.78 kg
Copper weight (kg per piece)
0.202
Customs tariff number
85369095
EAN
4028177503786
ETIM 9
EC001531
ECLASS 8.0
27370304
Product description
SV Circuit-breaker component adaptor, 160 A, 690 V, 3-pole, cable outlet bottom, round conductor connection 35-120 mm², clamping area WH: 18,5x15,5 mm
Feature: ABB compatibility with S1, S2, T1, T2, XT1, XT2 makes the SV 9342.510 a universal mounting solution. Business Impact: reduces BOM fragmentation, simplifies procurement, and minimizes installation mistakes across multiple breaker families. Application: ideal for panel builders and system integrators seeking a single adaptor that covers common ABB configurations in switchgear. Feature: 3-pole construction with 160 A rated current and 690 V operating voltage ensures reliable three‑phase switching. Business Impact: supports robust power distribution without oversized components, improves thermal management, and reduces panel footprint. Application: well suited for motor control centers, feeder panels, and compact switchgear in industrial facilities. Feature: Bottom cable outlet together with 35–120 mm² round conductor connections and a clamping area of 18.5 × 15.5 mm enables neat terminations. Business Impact: simplifies cable routing and termination, reduces field wiring time, and lowers the risk of loose connections in dense enclosures. Application: compatible with 60 mm busbar centers and laminated copper bars, enabling clean, service-friendly installations. Feature: Polyamide housing with fire protection conforming to UL 94‑V0 provides durable insulation in demanding environments. Business Impact: enhances enclosure safety, supports industry compliance expectations, and extends component life under vibration and temperature variation. Application: suitable for vertical and horizontal mounting in control panels, switchgear housings, and compact control desks. Feature: Pack configuration includes 1 piece per pack with weight 0.78 kg per pack and copper weight 0.202 kg per piece; 1 piece per pack. Business Impact: supports predictable logistics, easier warehouse planning, and lower total cost of ownership through consistent sizes. Application: ideal for 3‑pole, ABB‑compatible assemblies in mid- to high-volume production lines where repeatability matters.
