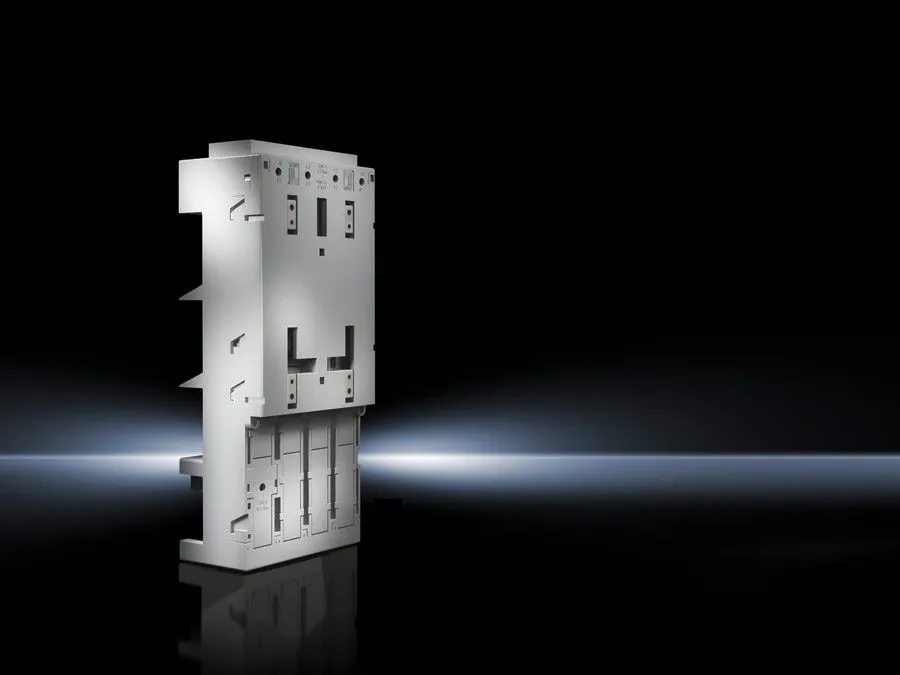

Rittal 9342514 SV Circuit-breaker Adaptor - 4-pole, 690 V
Part Number: 9342514
Manufacturer
Rittal
Part number
9342514
Category
Alt Part Number
SV 9342.514
Quick Summary
Rittal 9342514 SV Circuit-breaker Adaptor enables direct mounting of circuit-breaker components in compact switchgear. Engineers often battle space constraints and wiring complexity; this adaptor simplifies bottom-cable outlets and streamlines assembly for safer, faster panel builds. The housing uses UL 94-V0 fire-protective polyamide and supports UL SCCR ratings up to 65 kA at 480 V, with a 160 A, 690 V operating window. In practice, ABB busbar compatibility (T1, T2, XT1, XT2) and a 60 mm centre-to-centre spacing ensure reliable integration in modern power distribution. By aligning with common control-panel practices and offering included mounting accessories, it delivers tangible value for higher uptime and reduced labor costs.
Product Information
Extended Description
9342514 Rittal: SV Circuit-breaker component adaptor, 160 A, 690 V, 4-pole, cable outlet bottom, round conductor connection 35-120 mm², clamping area WH: 18,5x15,5 mm
Article number
SV 9342.514
Material
Polyamide | Fire protection corresponding to UL 94-V0
Colour
RAL 7035
Supply includes
Terminal cover | Sliding blocks
Type of electrical connection
Box terminal
Rated current max.
160 A
Rated operating voltage
690 V, 4~
Electrical ratings UL (SCCR)
65 kA - 480 V, circuit breaker max. 125 A, DIVQ/7
Cable outlet
Bottom
For bar systems with centre-to-centre spacing
60 mm
Note
Cable outlet: Switch outlet or as outgoing cable from the switchgear
Number of poles
4-pole
Dimensions
Width: 120 mm | Height: 277 mm
Connection for round conductor
35 ‐ 120 mm²
To fit busbars
Height: 5, 10 mm
Clamping area for laminated copper bars (W x H)
18.5 x 15.5 mm
To fit manufacturer (model)
ABB (T1, T2, XT1, XT2)
Packs of
1 pc(s).
Weight/pack
1.4 kg
Copper weight (kg per piece)
0.258
Customs tariff number
85369095
EAN
4028177551763
ETIM 9
EC001531
ECLASS 8.0
27370304
Product description
SV Circuit-breaker component adaptor, 160 A, 690 V, 4-pole, cable outlet bottom, round conductor connection 35-120 mm², clamping area WH: 18,5x15,5 mm
Feature → Business Impact → Application: The SV adaptor provides a 4-pole, bottom cable outlet design rated to 160 A at 690 V, enabling space‑efficient wiring in compact switchgear and reducing inner-panel clutter. This translates to faster cabinet assembly and lower fault-prone cabling, especially in ABB busbar configurations where tight routing is common. Application: panel builders seeking safer, more maintainable power distribution assemblies. Feature → Business Impact → Application: Round conductor connections accommodating 35–120 mm² conductors give you flexible, high‑current interconnects with minimal resistance buildup. Benefit includes improved thermal performance and fewer crimps, supporting reliable motor feeders and feeders to MCCs. Application: industrial automation installations with diverse conductor sizes. Feature → Business Impact → Application: Clamping area for laminated copper bars (18.5 × 15.5 mm) ensures robust, low‑loss connections under high current transients. Result is lower impedance paths and improved short‑circuit resilience. Application: high‑demand switchgear and distribution panels. Feature → Business Impact → Application: Polyamide with UL 94‑V0 fire protection provides a safer, compliant housing that withstands typical panel environments. Benefit: enhanced safety, reduced certification risk, and longer component life. Application: control panels in harsh or regulated environments. Feature → Business Impact → Application: Box terminal connection type simplifies installation using standard wiring practices, minimizing training needs and enabling rapid onboarding of maintenance staff. Application: new panel builds and retrofits where familiar connection schemes matter. Feature → Business Impact → Application: Includes terminal cover and sliding blocks for quicker, safer commissioning, reducing interlock issues and improving enclosure integrity. Application: installation teams prioritizing fast, repeatable assembly. Feature → Business Impact → Application: ABB (T1, T2, XT1, XT2) compatibility ensures ready integration with common busbar systems, reducing custom modifications and energizing faster project delivery. Application: plant upgrades and expansions leveraging ABB components.
Get a Quick Quote for a Rittal 9342514
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Rittal 9342514?
Enquire Now
FAQs
Plan for bottom cable outlet routing and ensure the centre-to-centre spacing matches 60 mm busbar layouts. The unit supports round conductors 35–120 mm² and uses a box terminal connection, with included terminal cover and sliding blocks to speed assembly.
Yes. The design explicitly lists ABB busbar compatibility, enabling straightforward integration into ABB-based switchgear without custom adapters, while maintaining secure clamping and reliable current paths.
Rated current max is 160 A and rated operating voltage is 690 V. UL SCCR is 65 kA at 480 V. The housing uses polyamide with UL 94‑V0 fire protection, contributing to safer, code-compliant panel installations.
The adaptor uses UL 94‑V0 compliant polyamide for fire safety, and the UL SCCR rating provides clear high‑short‑circuit performance. The product also matches RAL 7035 color for consistent control-panel aesthetics and maintenance visibility.
Each pack includes a terminal cover and sliding blocks. The 4‑pole adaptor is designed for bottom cable outlets and 60 mm busbar spacing, delivering quick, safe installation in ABB-compatible switchgear.
