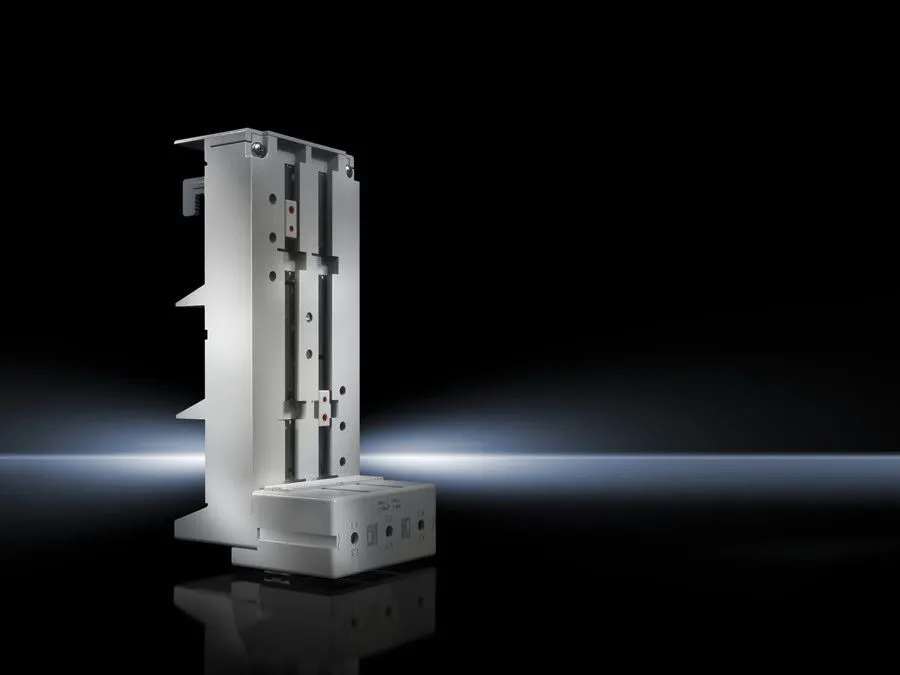

Rittal 9342540 Circuit-breaker adaptor - UL 94-V0
Part Number: 9342540
Manufacturer
Rittal
Part number
9342540
Category
Alt Part Number
SV 9342.540
Quick Summary
Rittal 9342540 circuit-breaker adaptor enables universal, simplified assembly of circuit-breakers for switchgear and distribution panels. Engineers often confront mismatched components and time-consuming wiring, which this adaptor helps mitigate by providing a consistent mounting and connection interface. Built with UL 94-V0 flame-rated polyamide and rated for 125 A at 690 V, it supports a 3-pole configuration with a top cable outlet and a 60 mm center-to-center busbar spacing. The design also aligns with ABB models like S1, S2, T1, T2, and XT variants, delivering both safety and compatibility in modern panel assemblies.
Product Information
Extended Description
9342540 Rittal: SV Circuit-breaker component adaptor, 125 A, 690 V, 3-pole, cable outlet top, round conductor connection 35-120 mm², clamping area WH: 18,5x15,5 mm
Article number
SV 9342.540
Material
Polyamide | Fire protection corresponding to UL 94-V0
Colour
RAL 7035
Supply includes
Terminal cover | Sliding blocks
Type of electrical connection
Box terminal
Rated current max.
125 A
Rated operating voltage
690 V, 3~
Electrical ratings UL (SCCR)
65 kA - 480 V, circuit breaker max. 125 A, DIVQ/7
Cable outlet
Top
For bar systems with centre-to-centre spacing
60 mm
Note
Cable outlet: Switch outlet or as outgoing cable from the switchgear
Number of poles
3-pole
Dimensions
Width: 90 mm | Height: 225 mm
Connection for round conductor
35 ‐ 120 mm²
To fit busbars
Height: 5, 10 mm
Clamping area for laminated copper bars (W x H)
18.5 x 15.5 mm
To fit manufacturer (model)
ABB (S1, S2, T1, T1 UL, T2, T2 UL, XT1, XT2)
Packs of
1 pc(s).
Weight/pack
0.82 kg
Copper weight (kg per piece)
0.202
Customs tariff number
85369095
EAN
4028177525658
ETIM 9
EC001531
ECLASS 8.0
27370304
Product description
SV Circuit-breaker component adaptor, 125 A, 690 V, 3-pole, cable outlet top, round conductor connection 35-120 mm², clamping area WH: 18,5x15,5 mm
Feature: 3-pole adaptor rated 125 A at 690 V enables common high-current circuit-breaker integration. Business Impact: Supports reliable protection schemes for feeders and distribution feeders, reducing the need for custom parts and accelerating panel readiness. Application: Use in switchgear where ABB S1/S2 or T-series breakers are deployed, ensuring a snug fit with standard 60 mm busbar spacing. Feature: Top cable outlet simplifies front-entry wiring and reduces enclosure depth. Business Impact: Improves cable management, minimizes derating risks, and speeds installation. Application: Ideal for front-entry wiring in compact switchgear housings. Feature: Round conductor connections for 35–120 mm² conductors provide flexible, robust terminations. Business Impact: Maintains low contact resistance and enables broader conductor selection. Application: Suitable for power distribution blocks in industrial control panels. Feature: Clamping area for laminated copper bars (18.5 x 15.5 mm) optimizes conductor securing. Business Impact: Enhances electrical contact quality, reduces movement under vibration, and supports longer service life. Application: Best for laminated copper busbar interfaces in modular assemblies. Feature: Polyamide construction with fire protection (UL 94-V0) delivers improved safety in enclosures. Business Impact: Supports regulatory compliance and reduces risk of enclosure-wide ignition. Application: Particularly beneficial in metal or composite enclosures with strict fire-safety requirements. Feature: ABB compatibility noted for model range (S1, S2, T1, T1 UL, T2, T2 UL, XT1, XT2). Business Impact: Accelerates procurement and reduces engineering time by ensuring drop-in compatibility. Application: Useful in mixed-brand switchgear environments where ABB components are present.
