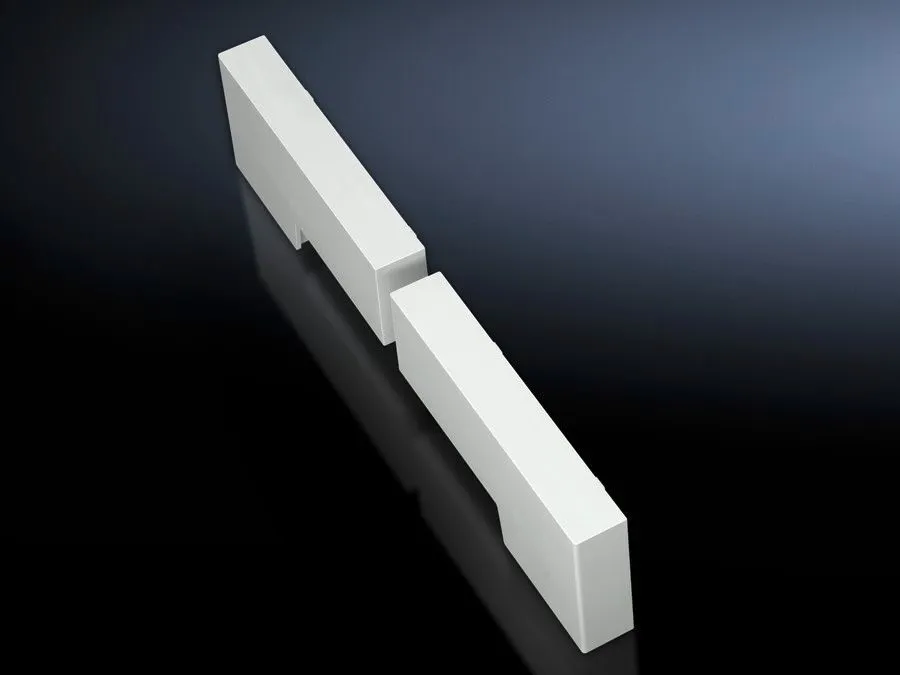

Rittal SV 9342.720 Inserted Strip - 25 mm Width
Part Number: 9342720
Manufacturer
Rittal
Part number
9342720
Category
Alt Part Number
SV 9342.720
Quick Summary
Rittal SV 9342.720 Inserted Strip is designed to extend the construction width for circuit-breaker adapters in modular enclosures. When panel space is tight, reconfiguring a cabinet can lead to awkward mounting, misalignment, and downtime. The design supports CE compliance for EU markets and uses durable ABS in RAL 7035 to ensure consistent aesthetics and protection. It pairs with Siemens VL630 components and 3-pole setups, offering fast installation and predictable mounting for power distribution in industrial cabinets. This combination delivers repeatable performance across fleets, simplifying procurement and maintenance for OEMs and service teams.
Product Information
Extended Description
9342720 Rittal: SV Inserted strip, for circuit-breaker component adaptor 400/630 A, W: 25 mm
Article number
SV 9342.720
Product description
To extend the construction width from 140 mm to 190 mm.
Material
ABS
Colour
RAL 7035
Supply includes
Including connection parts for power circuit-breaker, brand Siemens VL630 (3-pole)
Note
4 pieces are needed to widen a component adaptor
To fit Model No.
9345.700
Dimensions
Width: 25 mm
Packs of
4 pc(s).
Weight/pack
0.56 kg
Customs tariff number
39269097
EAN
4028177503830
ETIM 9
EC001900
ECLASS 8.0
27400613
Product description
SV Inserted strip, for circuit-breaker component adaptor 400/630 A, W: 25 mm
The 25 mm wide SV 9342.720 strip extends the width from 140 mm to 190 mm, enabling larger circuit-breaker adapters without a full cabinet redesign, reducing downtime and changeover costs. Made from ABS and finished in RAL 7035, the insert strips resist impact and environmental exposure while maintaining a uniform enclosure appearance across fleets. The kit includes connection parts for a 400/630 A power circuit-breaker and is designed for 3-pole Siemens VL630 assemblies, ensuring quick, error-free alignment and secure mounting. A four-piece pack simplifies procurement and stock management, while compatibility with model 9345.700 expands retrofitting options. ETIM EC001900 and ECLASS 27400613 classifications help with cross-system procurement and data accuracy.
Get a Quick Quote for a Rittal 9342720
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Rittal 9342720?
Enquire Now
FAQs
Install the four-piece kit inside the enclosure, aligning each strip with the circuit-breaker adaptor to extend width from 140 mm to 190 mm. Use the included connection parts for a secure, plug‑and‑play fit on the 400/630 A system. Ensure enclosure cover clearance, verify that the mounting hardware seats fully, and re-tighten after power-up. Document the configuration in the asset management system for traceability.
The insert strip is designed to work with circuit-breaker adaptors in 400/630 A configurations, with a per-piece width of 25 mm and a total pack of four. Material is ABS, finished in RAL 7035, ensuring safe mechanical fit and electrical isolation as part of a compliant assembly. Confirm busbar clearances and mounting torque per your enclosure specification to prevent any deformation or contact issues.
Yes. It includes connection parts for power circuit-breakers and is specified for Siemens VL630 3-pole configurations, enabling a reliable expansion path within modular switchgear enclosures. Its 25 mm width increment per piece simplifies staged upgrades without disrupting existing wiring layouts.
The product supports EU‑market design expectations and ETIM/ECLASS classifications. For definitive CE, IP or SIL status, confirm the datasheet and supplier declarations, and align with local compliance requirements before installation. Use the provided model and part numbers to cross-check against your internal compliance matrix.
Extending the width with four strips reduces panel redesign time, minimizes downtime, and provides predictable, repeatable mounting. With per-pack weight of 0.56 kg and compatible parts, logistics and stocking costs decrease, improving total cost of ownership. The standardized 25 mm increment supports scalable upgrades across multiple cabinets with consistent installation time.
