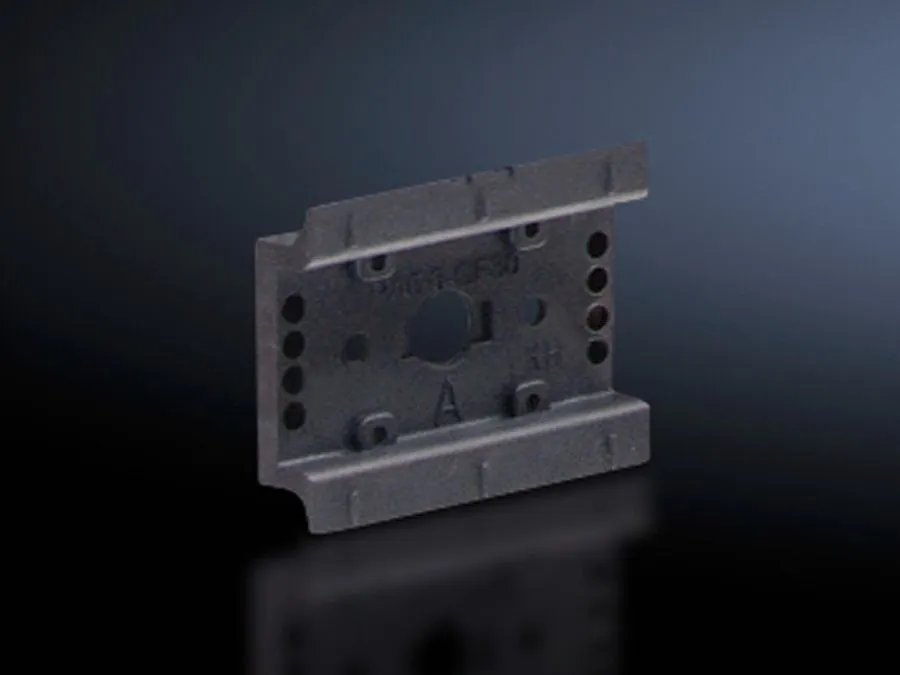

Rittal SV 9342.850 - Support Rail TS 45C, UL approved
Part Number: 9342850
Manufacturer
Rittal
Part number
9342850
Category
Alt Part Number
SV 9342.850
Quick Summary
The Rittal SV 9342.850 is a support rail for attaching components to adaptor sections and frames. Engineers often struggle with misalignment in tight panels; this rail delivers a secure, repeatable mounting surface. Key certifications include UL approval when used with the OM adaptor/support, plus ETIM EC001285 and ECLASS 27141143 to support consistent cataloging. In practice, the part reduces installation time and improves safety, enabling faster commissioning and easier maintenance. As a polyamide rail with a 45 mm width and RAL 9005 finish, it supports durable, low‑weight mounting in modern enclosure ecosystems, aligning with common industrial procurement terms and integration with other Rittal enclosure accessories.
Product Information
Extended Description
9342850 Rittal: SV Support rail 35x10 mm, W: 45 mm, version TS 45C
Article number
SV 9342.850
Design
TS 45C
Product description
For attaching to the adaptor section and support frame.
Material
Polyamide
Colour
RAL 9005
Supply includes
Assembly screws
Anti-slip guard for motor circuit-breaker
Yes
Note
UL approval in conjunction with OM adaptor/support
Dimensions
Width: 45 mm
Packs of
5 pc(s).
Weight/pack
0.045 kg
Customs tariff number
39269097
EAN
4028177503908
ETIM 9
EC001285
ECLASS 8.0
27141143
Product description
SV Support rail 35x10 mm, W: 45 mm, version TS 45C
Feature: Attaches to adaptor sections and support frames. Business Impact: Standardizes mounting, reduces setup time, and minimizes misalignment across multiple enclosures. Application: Ideal for Rittal enclosure systems in control panels and power distribution assemblies, supporting DIN rail mounting workflows and scalable installations. Feature: TS 45C design and 35x10 mm rail profile. Business Impact: Delivers precise fit and predictable compatibility with common rail systems, lowering rework and part substitution costs. Application: Used in compact enclosures where space meets rigid mounting standards, enabling efficient device placement within restricted footprints. Feature: Supplied with assembly screws and an anti-slip guard for motor circuit-breakers. Business Impact: Simplifies installation, enhances safety, and reduces vibration-related loosening. Application: Critical for motor control centers and high‑vibration environments where secure retention is essential. Feature: Material and finish—polyamide, color RAL 9005. Business Impact: Strong, lightweight construction with consistent appearance, improving serviceability and traceability in audits. Application: Suitable for harsh industrial environments and enclosure interiors requiring durable, non-conductive mounting rails. Feature: UL approval in conjunction with OM adaptor/support; packaging supports efficient sourcing. Business Impact: Compliance with safety standards and accelerated procurement cycles through clear part identification (EAN, ETIM, ECLASS). Application: Widely adopted in European and global automation projects leveraging standardized components.
Get a Quick Quote for a Rittal 9342850
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Rittal 9342850?
Enquire Now
FAQs
Yes. SV 9342.850 is designed to attach to OM adaptor/support and is compatible with standard 35x10 mm rails for predictable mounting in Rittal enclosures. It ships with assembly screws to speed setup and ensure a secure fit from the first install.
The rail uses a 35x10 mm profile with a 45 mm width and is made from polyamide in RAL 9005. Each pack contains five pieces, with a weight of 0.045 kg per pack, making it suitable for scalable panel assemblies and lightweight installations.
The anti-slip guard reduces movement of mounted motor circuit-breakers, improving safety and reliability by preventing vibration-induced loosening and accidental disconnections in dynamic environments.
Yes, SV 9342.850 has UL approval when used in conjunction with the OM adaptor/support. This certification supports safer operation in industrial environments and helps satisfy supplier and customer safety requirements for enclosure assemblies.
This rail is ideal for mounting components within Rittal enclosures, control panels, and power distribution assemblies that require standardized mounting, reliable alignment, and easy maintenance. It supports DIN rail mounting workflows and aligns with common procurement terminology for efficiency.
