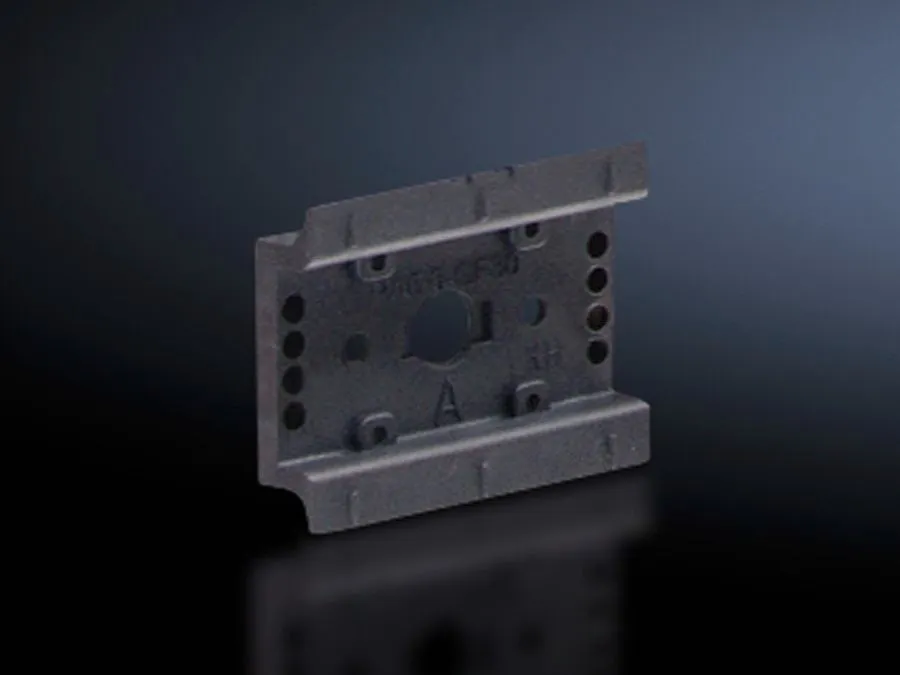

Rittal 9342870 SV Support Rail - UL adaptor (OM adaptor)
Part Number: 9342870
Manufacturer
Rittal
Part number
9342870
Category
Alt Part Number
SV 9342.870
Quick Summary
Rittal 9342870 SV Support Rail securely attaches to adaptor sections in control cabinets. In tight enclosures, unreliable mounting and non-standard hardware slow projects and risk compliance. Key certifications include UL approval when used with OM adaptor/support configurations. With a polyamide body, 45 mm width, and color in RAL 9005, this rail supports fast, compliant installations while reducing part count and maintenance. It also integrates smoothly with 35x10 mm profiles, delivering scalable solutions for power management and distribution in industrial cabinets. Choosing this rail helps streamline procurement through standardized packs of five and includes assembly screws.
Product Information
Extended Description
9342870 Rittal: SV Support rail 35x10 mm, W: 45 mm, version TS 45D-V
Article number
SV 9342.870
Design
TS 45D-V
Product description
For attaching to the adaptor section and support frame.
Material
Polyamide
Colour
RAL 9005
Supply includes
Assembly screws
Note
UL approval in conjunction with OM adaptor/support
Dimensions
Width: 45 mm
Packs of
5 pc(s).
Weight/pack
0.06 kg
Customs tariff number
39269097
EAN
4028177503922
ETIM 9
EC001285
ECLASS 8.0
27141143
Product description
SV Support rail 35x10 mm, W: 45 mm, version TS 45D-V
SV Support rail is a mounting accessory designed to attach to the adaptor section and the support frame of Rittal cabinets. Key specifications include a 35x10 mm profile, width 45 mm, polyamide, RAL 9005, and UL approval when used with OM adaptor/support. Supply includes assembly screws; packs of five; weight per pack 0.06 kg; EAN 4028177503922. Primary applications include control cabinets, switchgear enclosures, and power distribution panels in industrial environments. Core benefits are faster, more reliable assembly, reduced maintenance, and streamlined procurement through standardized 5-pack packaging. The design supports quick alignment with adjacent rails and compatibility with 45 mm wide frames, helping standardize rack layouts. Customers appreciate UL approval in conjunction with OM adaptor/support for compliance and installer confidence.
Get a Quick Quote for a Rittal 9342870
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Rittal 9342870?
Enquire Now
FAQs
To install the SV 9342.870 rail, ensure your enclosure uses the 35x10 mm rail system. Align the rail with the adaptor section, then secure it using the assembly screws included in the supply. Verify the UL approval context with OM adaptor/support after installation and confirm the rail sits flush against the support frame for stable operation.
Yes. The SV 9342.870 rail is designed for 35x10 mm profiles and fits standard 45 mm wide frames where applicable. Its polyamide body and black RAL 9005 finish support durable mounting in industrial cabinets, enabling consistent alignment with adjacent rails and straightforward integration into existing rack layouts.
The primary certification noted for this rail is UL approval when used in conjunction with OM adaptor/support configurations. This certification supports compliance during system assembly in control cabinets and power distribution installations, providing installer confidence and reducing rework related to mounting reliability.
Absolutely. The SV 9342.870 rail is designed for fast, secure mounting in compact spaces. With included assembly screws and packs of five, it minimizes procurement complexity and streamlines installation timelines. Its standardized 35x10 mm profile helps ensure rapid alignment and repeatable mounting across multiple cabinets.
The rail ships in packs of five with assembly screws included. Each pack weighs 0.06 kg, and the product is identified by EAN 4028177503922. This packaging approach reduces stock fragmentation and supports efficient material handling and stocking in procurement workflows for power management and distribution assemblies.
