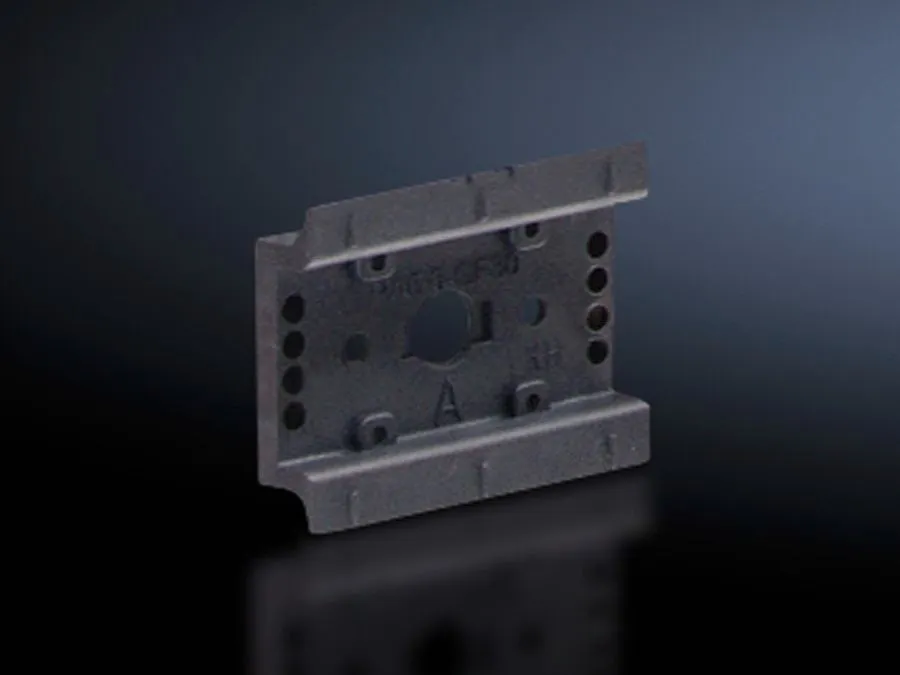

Rittal 9342940 SV Support rail - UL approval
Part Number: 9342940
Manufacturer
Rittal
Part number
9342940
Category
Alt Part Number
SV 9342.940
Quick Summary
Rittal SV Support rail 9342940 is designed to attach to adaptor sections or support frames in TS 55D-V enclosures. In busy panels, misalignment and time-consuming mounting are common pain points that slow projects and raise labor costs. UL approval in conjunction with OM adaptor/support provides a trusted safety baseline, while ETIM 9 EC001285 and ECLASS 8.0 27141143 support accurate data exchange across systems. This solution streamlines procurement and installation, delivering consistent performance, simplified spares planning, and improved serviceability for panel builders and maintenance teams.
Product Information
Extended Description
9342940 Rittal: SV Support rail 35x10 mm, W: 45 mm, version TS 55D-V
Article number
SV 9342.940
Design
TS 55D-V
Product description
For attaching to the adaptor section and support frame.
Material
Polyamide
Colour
RAL 9005
Supply includes
Assembly screws
Note
UL approval in conjunction with OM adaptor/support
Dimensions
Width: 55 mm
Packs of
5 pc(s).
Weight/pack
0.07 kg
Customs tariff number
39269097
EAN
4028177503984
ETIM 9
EC001285
ECLASS 8.0
27141143
Product description
SV Support rail 35x10 mm, W: 45 mm, version TS 55D-V
Feature → Business Impact → Application: Polyamide construction with a 55 mm width yields a lightweight, corrosion-resistant rail that lowers overall enclosure weight and reduces wear on mounting hardware. This translates to shorter installation times and easier handling in confined spaces, making it ideal for TS 55D-V framed enclosures where rack density matters. Feature → Business Impact → Application: Attaches to adaptor sections or the support frame, ensuring reliable alignment and straightforward integration with existing 35x10 mm rails. The design minimizes misfit risk and speeds assembly, particularly in multi-rack systems. Feature → Business Impact → Application: Supplied with assembly screws, enabling immediate, tool-ready installation from the kit, which reduces sourcing steps and accelerates project timelines. Feature → Business Impact → Application: UL approval in conjunction with OM adaptor/support supports compliance and safe operation in protected equipment environments, reinforcing quality control during audits and maintenance. Feature → Business Impact → Application: Color and finish (RAL 9005) provide visibility and consistency in enclosure interiors, aiding standardization across plant fleets and helping technicians locate mounting points quickly. Feature → Business Impact → Application: Packaging of 5 pieces per pack and a per-pack weight of 0.07 kg simplifies logistics and stocking for maintenance inventories and project spares.
Get a Quick Quote for a Rittal 9342940
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Rittal 9342940?
Enquire Now
FAQs
The 9342940 rail is designed to attach directly to the adaptor section or support frame within Rittal TS 55D-V enclosures, using the standard 35x10 mm rail profile. It ships with assembly screws for immediate mounting, ensuring alignment and reducing the risk of misfit when upgrading or expanding panel layouts.
Key specs include polyamide construction, width 55 mm, 35x10 mm rail profile, W 45 mm, color RAL 9005, and a pack of 5 with each pack weighing 0.07 kg. It is EAN 4028177503984 and the article number is SV 9342.940; it is intended for attachment to adaptor sections and support frames in TS 55D-V systems.
Yes, the product note specifies UL approval in conjunction with OM adaptor/support, providing a verified safety baseline for mounting rails in system assemblies. This helps with compliance during audits and reduces risk when integrating with OM adaptor or support components.
Absolutely. The rails come with assembly screws and are sized to fit standard 35x10 mm rails, enabling quick attachment to adaptor sections or support frames. The combination of predefined dimensions, compatible design, and included fasteners minimizes on-site adjustments and speeds panel commissioning.
Packaging is in sets of 5 pieces per pack, with a weight of 0.07 kg per pack, which simplifies inventory planning and reorder points for maintenance and project work. The standardized 55 mm width and TS 55D-V compatibility support predictable procurement and stockkeeping for large installations.
