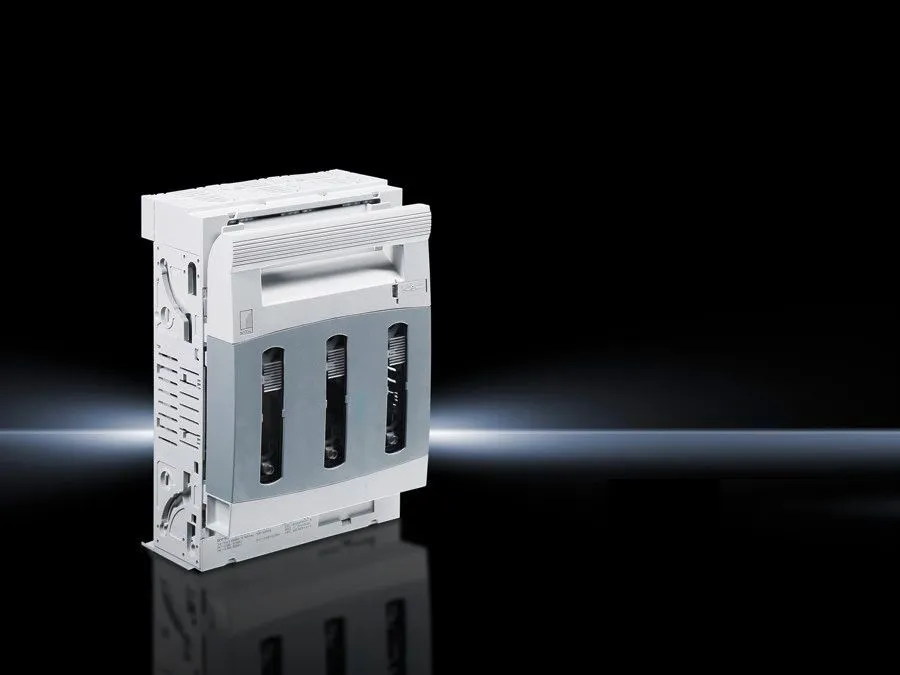

Rittal SV 9343.200 Fuse-Switch Disconnector - UL 94 Fire Rating

Feature → Business Impact → Application: The SV 9343.200 handles up to 400 A at 690 V in a 3-pole configuration, delivering secure, fast isolation that minimizes downtime and enhances operator safety in switchgear and control cabinets. Application: Ideal for panel builders and industrial automation environments requiring robust protection during maintenance and fault events. The box-terminal connection and top/bottom cable outlets simplify field wiring, reducing installation time and wiring errors. Benefit: Shorter commissioning times and improved reliability in high-current panels.Feature → Business Impact → Application: Clamping areas for laminated copper bars (32 mm width, 10 mm height) plus round conductor support (95–300 mm²) enable flexible conductor sizing. Application: Supports both copper bar busbars and round conductors in power distribution schemes. Benefit: Optimized current paths with lower contact resistance, improving efficiency and thermal performance.Feature → Business Impact → Application: Box-terminal design and centre-to-centre busbar spacing of 60 mm simplify integration with existing NH-sized distribution systems. Application: Compatible with standard modular enclosures and centre-to-centre layouts. Benefit: Easy retrofit and scalable panel design, reducing redesign costs.Feature → Business Impact → Application: 210 mm x 298 mm footprint and 3.64 kg per pack give a compact, manageable install with predictable weight loads. Application: Good fit for compact control panels and space-constrained switchgear. Benefit: Streamlined mounting, easier service access, and predictable logistics in assemblies.Feature → Business Impact → Application: Certified for safety with 690 V, 3‑phase operation and documented test standard IEC/DIN EN 60 947-3. Application: Critical in power distribution and safety-compliance workflows. Benefit: Regulatory alignment and risk mitigation for critical infrastructure projects.
