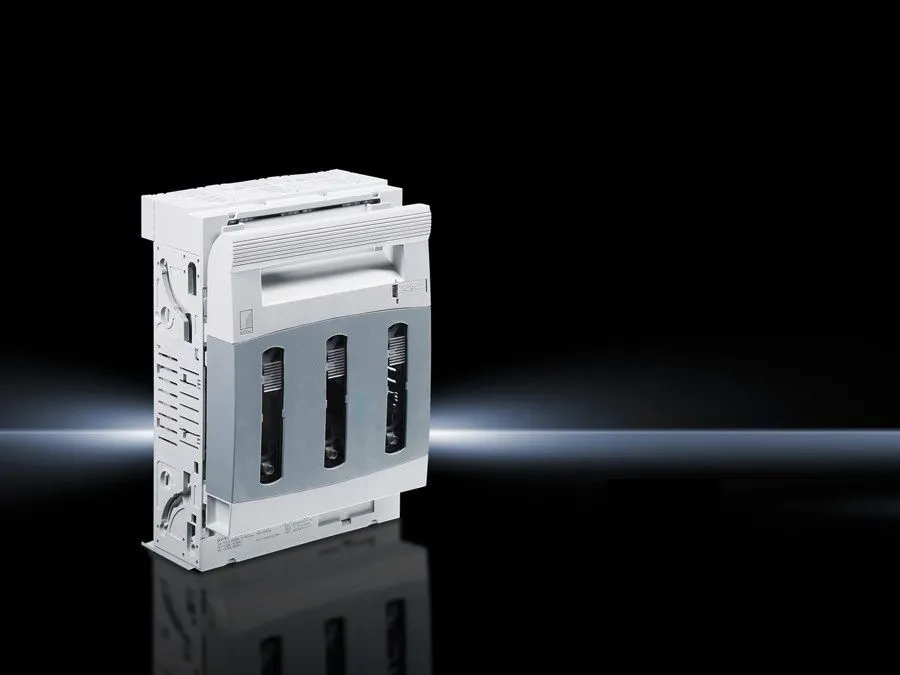

Rittal 9343210 SV NH fuse-switch disconnector - 60 947-3
Part Number: 9343210
Manufacturer
Rittal
Part number
9343210
Category
Alt Part Number
SV 9343.210
Quick Summary
Rittal 9343210 SV NH fuse-switch disconnector isolates 3-pole power in industrial panels. Operators often face downtime due to incomplete isolation or difficult cable routing. This unit delivers robust, silver-plated copper contacts, top/bottom cable outlets, and screw M10 connections for fast, reliable assembly. It is designed to meet IEC/DIN EN 60 947-3 testing and UL 94 fire protection, with a 690 V rating and 400 A operating current. For panel builders and automation engineers, the compact dimensions and centre-to-centre alignment simplify busbar mounting and modular integration. The result is improved safety, reduced maintenance, and predictable performance in demanding power management applications.
Product Information
Extended Description
9343210 Rittal: SV NH fuse-switch disconnector, size 2, 400 A, 690 V, 3-pole, screw M10
Article number
SV 9343.210
Material
Polyamide | Fire protection corresponding to UL 94 | Contact tracks: Electrolytic copper, silver-plated
Colour
Chassis: RAL 7035 | Cover: RAL 7035/7001
Clamping area for laminated copper bars
Clamping area width: 50 mm | Clamping area height: 10 mm
For bar systems with centre-to-centre spacing
60 mm
Cable outlet
Top/bottom
Type of electrical connection
Screw M10
Rated operating current max.
400 A
For NH size
2
Note
The technical data may vary for UR applications. Applications to UR only in conjunction with "Special Purpose Fuses".
Test specification
IEC/DIN EN 60 947-3
Dimensions
Width: 210 mm | Height: 298 mm
Connection for round conductor
10 ‐ 240 mm²
To fit busbars
Height: 5, 10 mm
Rated operating voltage
690 V, 3~
Number of poles
3-pole
Packs of
1 pc(s).
Weight/pack
3.36 kg
Copper weight (kg per piece)
1
Customs tariff number
85369095
EAN
4028177540392
ETIM 9
EC001040
ECLASS 8.0
27371401
Product description
SV NH fuse-switch disconnector, size 2, 400 A, 690 V, 3-pole, screw M10
High current rating up to 400 A enables reliable switching for demanding loads, reducing panel size and maintenance intervals while supporting motor control and distribution reliability. This translates to lower lifecycle costs and improved uptime in manufacturing lines. The 690 V operating voltage ensures compatibility with European standard power networks, enhancing regulatory compliance and machine safety. The 3-pole design provides balanced isolation across phases, improving fault detection and preventing arc events in critical power circuits. Top/bottom cable outlets simplify wiring access during panel build, speeding assembly and reducing installation errors in tight enclosures. Copper weight and copper contact surfaces offer low contact resistance, translating to consistent performance over time and reduced heat buildup during switching. UL 94 fire-protection and IEC/DIN EN 60 947-3 conformance give integrators confidence in safety and certification requirements for equipment in process industries. Compatibility with laminated copper bars up to 50x10 mm and busbar spacing of 60 mm supports standardized panel architectures, making replacement parts straightforward for service teams and OEMs. For installers, the screw M10 connection and clear mounting footprint minimize tool downtime and misalignment, while the compact 210x298 mm footprint enables flexible placement within switchgear cabinets.
Get a Quick Quote for a Rittal 9343210
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Rittal 9343210?
Enquire Now
FAQs
This model is designed for 60 mm centre-to-centre busbar spacing and supports laminated copper bars with a width of 50 mm and height of 10 mm. It offers top/bottom cable outlets and M10 screw connections, simplifying alignment, fastening, and cable routing within standardized switchgear enclosures.
Yes. It is rated for NH size 2 with a maximum operating current of 400 A. This makes it appropriate for switching large loads in feeder panels and motor control applications while maintaining robust protection and reliable disconnection.
The unit complies with IEC/DIN EN 60 947-3 for protection and switching performance and features UL 94 fire-protection classifications for plastic components. These certifications help ensure safe operation in European and North American installations and support compliance documentation for industrial projects.
Key benefits include a compact footprint (Width 210 mm, Height 298 mm), top/bottom cable outlets for flexible wiring, screw M10 terminations, and a 3-pole configuration that simplifies busbar integration. With a copper weight of 1 kg per unit and a pack weight of 3.36 kg, handling and replacement logistics are straightforward on the line.
Ideal for industrial power management and distribution, switchgear assemblies, and automation cabinets. It supports heavy loads up to 400 A at 690 V, enabling safe isolation in machine rooms, control panels, and large electrical enclosures while ensuring quick maintenance and predictable performance.
