Rittal 9343310 SV NH Fuse-Switch Disconnector - 630A 690V
Part Number: 9343310
Manufacturer
Rittal
Part number
9343310
Category
Alt Part Number
SV 9343.310
Quick Summary
Rittal 9343310 SV NH fuse-switch disconnector is designed for safe, reliable power switching in industrial control panels. Engineers often face wiring complexity, busbar compatibility challenges, and secure termination under high currents, which can drive downtime and errors. It is tested to IEC/DIN EN 60 947-3 and uses UL 94 flame-rated materials, with CE-ready construction for compliant industrial cabinets. This solution supports efficient panel mounting and robust power distribution, enabling smooth integration with laminated copper bars and modular enclosures to meet demanding automation environments.
Product Information
Extended Description

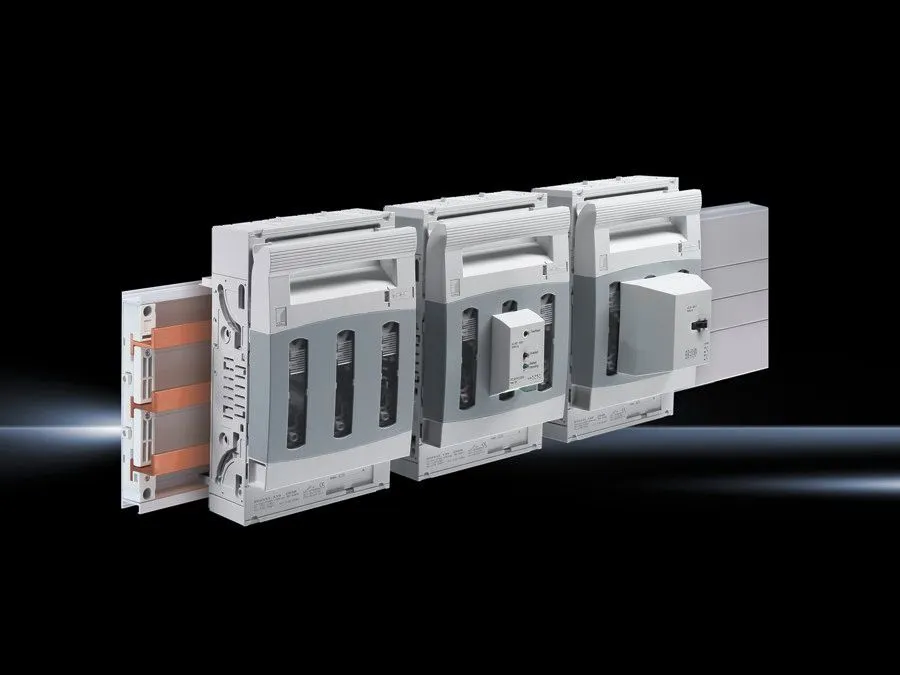

9343310 Rittal: SV NH fuse-switch disconnector, size 3, 630 A, 690 V, 3-pole, screw M10
Article number
SV 9343.310
Material
Polyamide | Fire protection corresponding to UL 94 | Contact tracks: Electrolytic copper, silver-plated
Colour
Chassis: RAL 7035 | Cover: RAL 7035/7001
Clamping area for laminated copper bars
Clamping area width: 50 mm | Clamping area height: 10 mm
For bar systems with centre-to-centre spacing
60 mm
Cable outlet
Top/bottom
Type of electrical connection
Screw M10
Rated operating current max.
630 A
For NH size
3
Note
The technical data may vary for UR applications. Applications to UR only in conjunction with "Special Purpose Fuses".
Test specification
IEC/DIN EN 60 947-3
Dimensions
Width: 250 mm | Height: 298 mm
Connection for round conductor
10 ‐ 300 mm²
To fit busbars
Height: 5, 10 mm
Rated operating voltage
690 V, 3~
Number of poles
3-pole
Packs of
1 pc(s).
Weight/pack
4.22 kg
Copper weight (kg per piece)
1.44
Customs tariff number
85369095
EAN
4028177540453
ETIM 9
EC001040
ECLASS 8.0
27371401
Product description
SV NH fuse-switch disconnector, size 3, 630 A, 690 V, 3-pole, screw M10
Feature → Business Impact → Application: The 3-pole design rated up to 630 A at 690 V enables high-current switching with a single device, reducing component count and potential fault points in switchgear. This translates to faster assembly, lower installation costs, and improved system availability in manufacturing lines and process automation. Feature → Business Impact → Application: Screw M10 connections and a 50 mm x 10 mm clamping area for laminated copper bars provide secure, low-impedance terminations. This supports reliable conductor transitions in control cabinets and battery of feeders, minimizing voltage drop and maintenance needs across panel installations. Feature → Business Impact → Application: Top/bottom cable outlets and a 60 mm center-to-center busbar spacing facilitate flexible routing and predictable layout in compact enclosures, reducing cabinet depth requirements and simplifying upgrades in evolving automation cells. Feature → Business Impact → Application: Dimensions of 250 mm width and 298 mm height, plus a weight of 4.22 kg per pack, offer a balanced footprint for modular enclosure designs, easing shipping, storage, and on-site handling. Feature → Business Impact → Application: The copper weight of 1.44 kg per piece provides robust conductor mass for low resistance, supporting stable performance in high-current applications; UR usage requires Special Purpose Fuses, which clarifies installation boundaries and prevents misapplication.
